Запчасти Case IH 706 (M-06) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, TOOL BOX (10) - OPERATORS PLATFORM

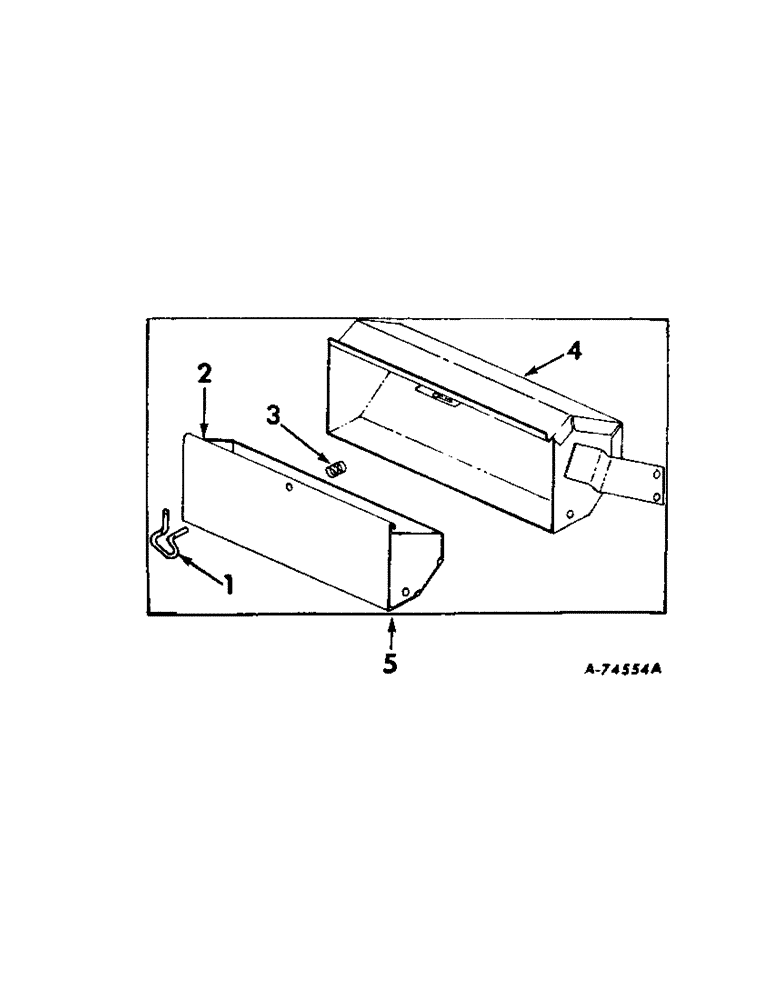

Схема запчастей Case IH 706 - (M-06) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, TOOL BOX (10) - OPERATORS PLATFORM
3
5
2
4
1

Артикул

Название

Примечание

Количество

1

383114R1

HANDLE

tool box

1шт.

114856

PIN, 3/64 x 1/2 cotter

1шт.

103338

WASHER,#10

7/32 x 1/2 x 16 ga.

1шт.

2

383110R11

DRAWBAR ASSY, tool box

1шт.

113354

RIVET

3/16 x 9/32 OV-HD tubular

2шт.

3

27452D

VALVE SPRING

SPRING, tool box handle

1шт.

4

383105R11

COVER ASSY, tool box, carbureted engine tractors, Farmall diesel engine tractors w/serial no. 37236 and below, International diesel engine tractors w/serial 5273 and below

1шт.

5

383116R91

COVER ASSY, tool box, Farmall diesel engine tractors w/serial no. 37237 and above, International diesel engine tractors w/serial 5274 and below

1шт.

6

383104R91

TOOL BOX ASSY, carbureted engine tractors, Farmall diesel engine tractors w/serial no. 37236 and below, International diesel engine tractors w/serial no. 5273 and below

1шт.

6

383115R91

BOX

TOOL BOX ASSY, Farmall diesel engine tractors w/serial no. 37237 and above, International diesel engine tractors w/serial no. 5274 and above

1шт.

W6075

SPACER, tool box mounting, used only on tractors with cab heater

2шт.

179814

SPACER

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

Выбрано товаров: 16
