Запчасти Case IH 706 (M-04) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, VERTICAL ACTING SEAT (10) - OPERATORS PLATFORM

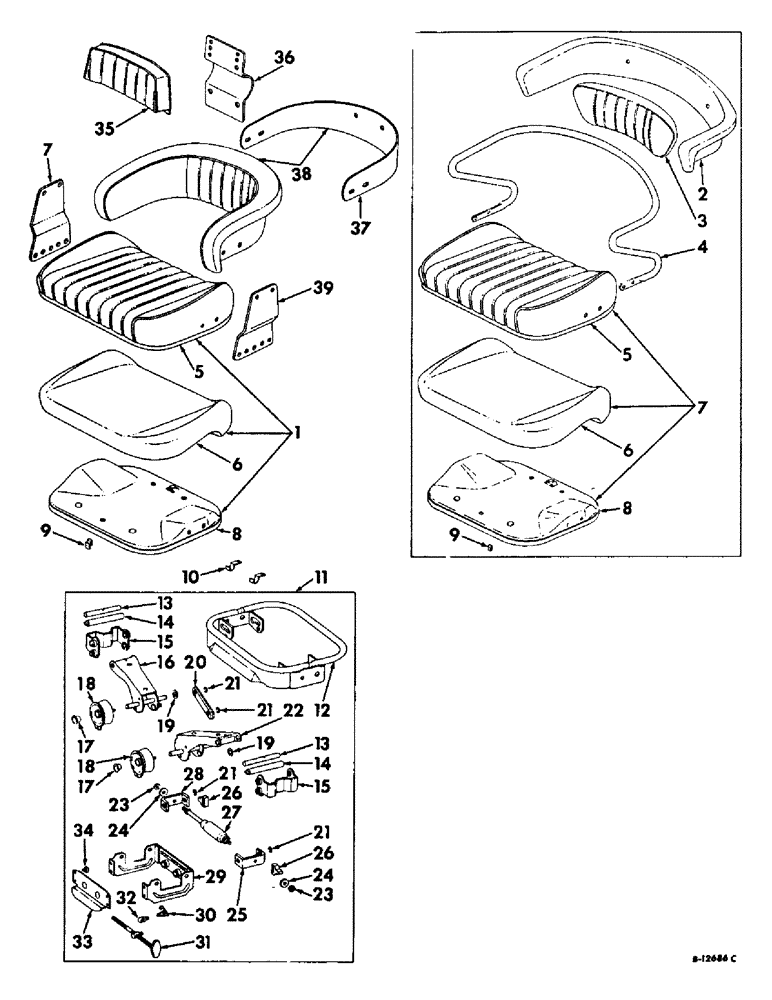

Схема запчастей Case IH 706 - (M-04) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, VERTICAL ACTING SEAT (10) - OPERATORS PLATFORM
21
21
23
19
9
15
21
18
23
38
3
30
33
1
36
10
26
14
32
12
7
39
24
19
2
13
13
20
11
6
22
14
7
31
37
15
34
9
26
18
29
6
17
17
35
4
5
27
8
25
8
24
21
5
16
28

Артикул

Название

Примечание

Количество

1

386911R91

CUSHION

ASSY, seat

1шт.

2

380682R1

SUPPORT

back, Farmall tractors 501 to 15677, International tractors, Serial Range: 501-2389

1шт.

3

380684R92

CUSHION

ASSY, back, Farmall tractors 501 to 15677, International tractors, Serial Range: 501-2389

1шт.

4

381247R1

SUPPORT, tubular back, Farmall tractors 501 to 15677, International tractors, Serial Range: 501-2389

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

19951R1

SCREW, 3/8-16 x 13/16 C-Z cr-rec-truss-hd. mach

4шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

386913R1

COVER

ING ASSY, seat cushion

1шт.

6

386912R1

PAD, moulded seat

1шт.

7

387173R1

SUPPORT

back cushion RH, Farmall tractors 15678 up, International tractors 2390 up

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

157803

SCREW, 3/8-16 x 5/8 cross-recess C-Z truss-hd. mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19951R1

SCREW, 3/8-16 x 13/16 cross-recess C-Z truss-hd. mach

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

8

381245R1

PAN ASSY, seat

1шт.

9

3793885R1

CLIP, covering retainer

4шт.

10

379321R1

CLAMP,27.74mm ID, 8.71mm Bolt Hole, J Type

seat

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

379319R92

SUPPORT

SUSPENSION ASSY, vertical acting

1шт.

12

380724R1

FUNNEL

FRAME, hanger

1шт.

13

380722R1

SHAFT

short link upper

2шт.

443039

PIN

1/4 x 1-1/4 type 3 groove

2шт.

14

380723R1

SHAFT

short link lower

2шт.

443148

GROOVED PIN,3/16" x 1", Type E

PIN, grooved, 3/16" x 1", Type E

2шт.

15

380721R1

DRAG LINK

LINK, short

2шт.

16

380713R1

LEVER

LH spring

1шт.

17

193643R1

BUSHING,19.18mm ID x 25.4mm OD x 14.29mm L

BEARING, flanged

2шт.

18

380712R1

INSULATOR BLOCK

SPRING, rubber

2шт.

19

380718R1

WASHER

49/64 x 1-1/4 x 14 ga.

2шт.

20

380717R1

LINK

stabilizer

1шт.

21

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

4шт.

22

380714R1

LEVER

RH spring

1шт.

23

SL716

WASHER

13/32 x 1-1/8 x 14 ga.

2шт.

24

381239R1

RUBBER WASHER

rubber

1шт.

25

380715R1

YOKE

BRACKET, LH shock

1шт.

26

381238R1

BUMPER

rubber

2шт.

27

372751R91

SHOCK ABSORBER

ABSORBER, shock

1шт.

232-4616

LOCK NUT,3/8"-24, GC

NUT, 3/8-24 C-Z hex, lock

2шт.

28

380716R1

YOKE

BRACKET, RH shock

1шт.

29

380711R2

HOUSING

spring

1шт.

30

380726R1

SPRING

INDICATOR, weight

1шт.

31

380725R91

STUD

ASSEMBLY, adjuster

1шт.

142488

GROOVED PIN,1/8" x 1", Type A

PIN, grooved, 1/8" x 1", Type A

2шт.

32

372739R1

PIN, adjusting

1шт.

33

380719R1

SUPPORT

BULKHEAD, front

1шт.

34

380720R1

BOLT,5/16"- 18 x 0.75"

front bulkhead

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

387177R91

CUSHION

ASSY, upper back, Farmall tractors 15678 up, International tractors 2390 up

1шт.

36

387178R1

SUPPORT

upper back cushion, Farmall tractors 15678 up, International tractors 2390 up

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd. cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

37

387175R1

LARGE PLATE

PLATE, cover, Farmall tractors 15678 up, International tractors 2390 up

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 C-Z hex-hd. cap

2шт.

161857

SHAFT

8-15 x 3/8 cr-rec pan-hd. type A tapping

3шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

38

387174R91

CUSHION

ASSY, back, Farmall tractors 15678 up, International tractors 2390 up

1шт.

39

387172R1

SUPPORT

back cushion LH, Farmall tractors 15678 up, International tractors 2390 up

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

157803

SCREW, 3/8-16 x 5/8 cross-recess C-Z truss-hd. mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19951R1

SCREW, 3/8-16 x 13/16 cross-recess C-Z truss-hd. mach

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

2751019R1

DECAL

PRODUCT GRAPHICS, seat adj. decal

1шт.

Выбрано товаров: 66
