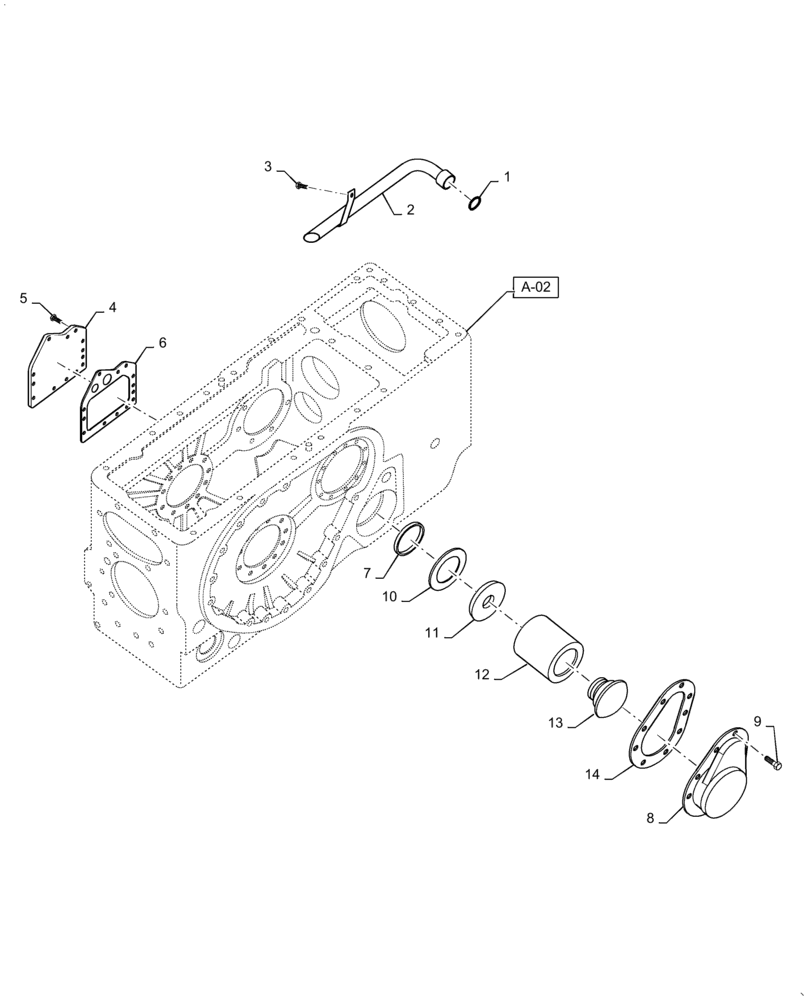

Запчасти Case IH 706 (F-34) - HYDRAULICS, HYDRAULIC FILTER, PUMP OPENING COVERS AND RELATED PARTS (07) - HYDRAULIC SYSTEM

1

360610R1

O-RING,1.609" ID x 0.139" Width

Hydraulic Filter Suction Tube, Farmall tractors, 501 to 3810 & 4058 up, International tractors 501 to 878 & 908 up

1шт.

2

382240R11

TUBE

Assy, Hydraulic Filter Suction, Also Order Ref 3

1шт.

3

297330R1

BOLT

3/8-16 x 1 Hex-HD Nylok

1шт.

4

382243R1

COVER ASSY

Cover, Pump Opening, Also Order Ref 5

1шт.

5

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

12шт.

6

382244R1

GASKET

Pump Opening Cover

1шт.

7

382242R1

RETAINER

Hydraulic Filter Suction Tube

1шт.

8

382256R1

COVER ASSY

Cover, Oil Filter, Also Order Ref 9

1шт.

9

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

10

382247R1

O-RING,5.237" ID x 0.103" Width

SEAL, Hyd Filter Cartridge Retainer

1шт.

11

382246R11

RETAINER

Hydraulic Filter Cartridge

1шт.

12

528493R3

HYDRAULIC OIL FILTER

Element

1шт.

13

386121R92

VALVE

Assy, Filter Relief

1шт.

14

382257R1

GASKET

Oil Filter Cover

1шт.
