Запчасти Case IH 706 (F-29) - HYDRAULICS SYSTEM, FRAME AND SELF-SEALING COUPLINGS (07) - HYDRAULIC SYSTEM

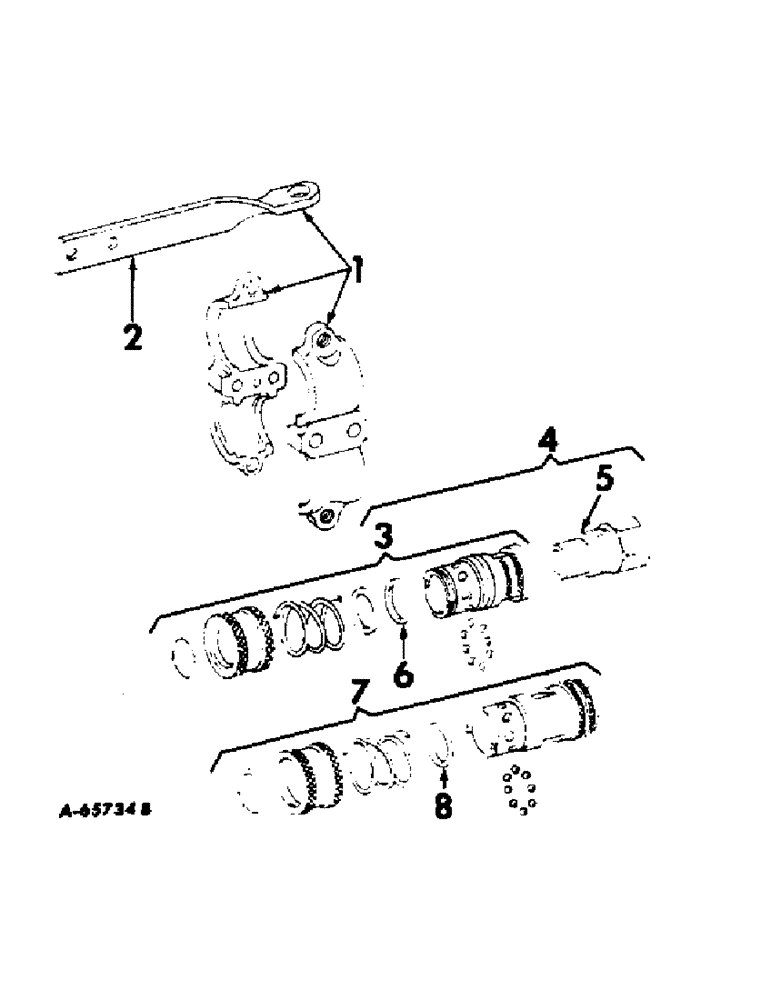

Схема запчастей Case IH 706 - (F-29) - HYDRAULICS SYSTEM, FRAME AND SELF-SEALING COUPLINGS (07) - HYDRAULIC SYSTEM
6
4
7
2
3
8
1
5

Артикул

Название

Примечание

Количество

1

379030R91

FUNNEL

FRAME ASSY, self-sealing coupling

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

379031R1

BRACKET

self-sealing coupling frame

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

3

374793R92

COUPLING ASSY, female

1шт.

4

388986R91

COUPLING

UNION & FEMALE COUPLING ASSEMBLY

1шт.

5

388988R91

UNION

ASSEMBLY

1шт.

6

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, female coupling

2шт.

7

374780R92

COUPLING

ASSY, self-sealing female

1шт.

8

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, self-sealing coupling

1шт.

Выбрано товаров: 11
