Запчасти Case IH 706 (F-11) - HYDRAULICS SYSTEM, HYDRAULIC PUMP, CESSNA, 12 OR 17 GPM (07) - HYDRAULIC SYSTEM

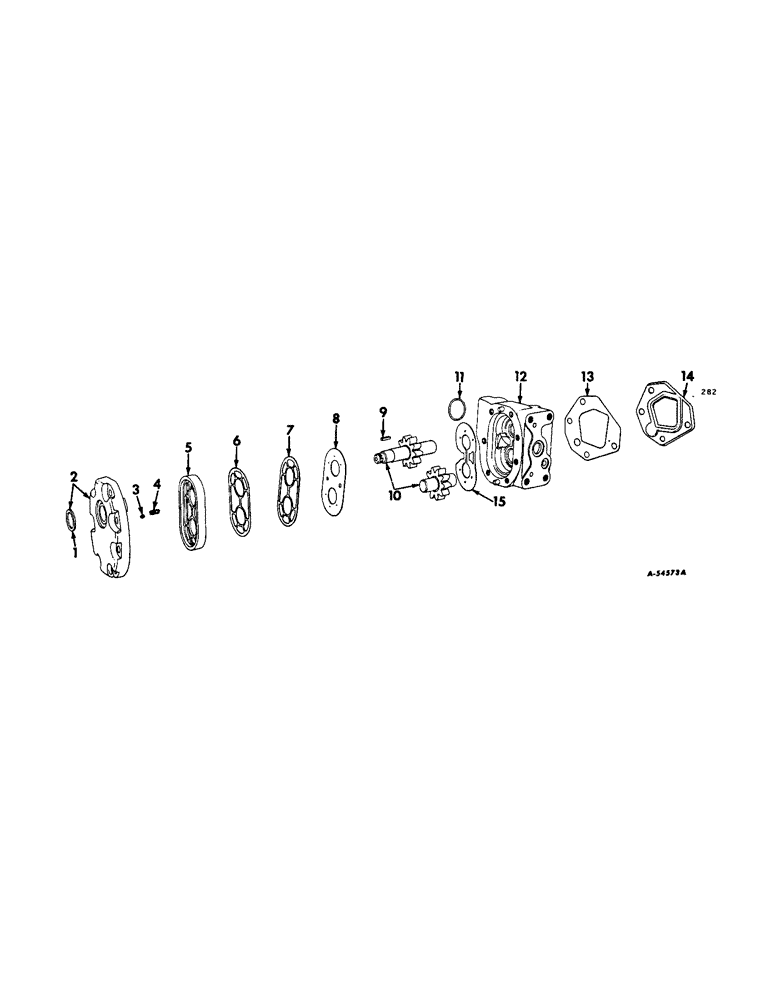

Схема запчастей Case IH 706 - (F-11) - HYDRAULICS SYSTEM, HYDRAULIC PUMP, CESSNA, 12 OR 17 GPM (07) - HYDRAULIC SYSTEM
3
2
15
10
1
6
13
14
11
12
8
5
4
7
9

Артикул

Название

Примечание

Количество

373964R93

HYDRAULIC PUMP

PUMP ASSY, hydraulic, 12GPM, optional with 374483R95

1шт.

373966R93

HYDRAULIC PUMP

PUMP ASSY, hydraulic, 17 GPM, optional with 527755R91

1шт.

1

373244R91

SEAL

SEAL, pump shaft oil

1шт.

2

NSS

NOT SOLD SEPARAT

COVER ASSY, pump, not serviced separately, order pump assy.

1шт.

3

16007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, diaphragm, not serviced separately, order o-ring and gasket package

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET, protector, not serviced separately, order o-ring and gasket package

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET, back-up, not serviced separately, order o-ring and gasket package

1шт.

8

NSS

NOT SOLD SEPARAT

DIAPHRAGM, pressure, not serviced separately, order o-ring and gasket package

1шт.

9

370942R1

KEY

5/32 x 13/32 sq-parallel

1шт.

10

NSS

NOT SOLD SEPARAT

PACKAGE, drive and driven gear, not serviced separately, order pump assy.

1шт.

11

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

12

NSS

NOT SOLD SEPARAT

BODY W/BUSHINGS, pump, not serviced separately, order pump assy.

1шт.

13

71265C1

GASKET

implement pump rear cover, not serviced separately, order o-ring and gasket package (replaced DASHPART)

1шт.

Not included with the pump assembly and must be ordered separately.

1шт.

14

371524R1

LARGE PLATE

COVER, implement pump area

1шт.

Not included with the pump assembly and must be ordered separately.

1шт.

15

NSS

NOT SOLD SEPARAT

DIAPHRAGM, body, not serviced, order o-ring and gasket package

1шт.

373969R94

GASKET KIT

PACKAGE, hydraulic pump o-ring and gasket service

1шт.

Consists of (1) diaphragm 371555R2 (NSS), (1) diaphragm 373968R2 (NSS), (1) gasket 371558R1 (NSS), (1) gasket 371559R1 (NSS), (1) gasket 371560R1 (NSS), (1) oil seal 373244R91, (1) o-ring 252483R1, (1) o-ring 272739R1, (1) o-ring 254691R1, (1) o-ring 352221R1, (1) seal 371556R1 (NSS)

1шт.

Выбрано товаров: 21
