Запчасти Case IH 706 (F-09) - HYDRAULICS SYSTEM, HYDRAULIC PUMP, CESSNA, 9 GPM (07) - HYDRAULIC SYSTEM

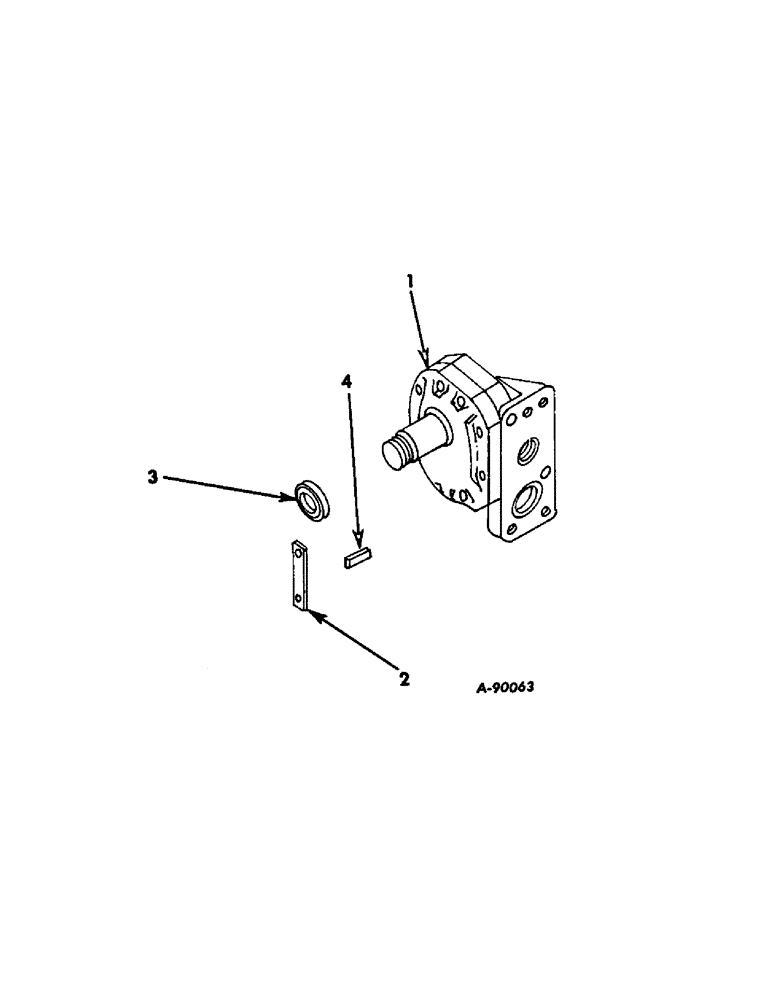

Схема запчастей Case IH 706 - (F-09) - HYDRAULICS SYSTEM, HYDRAULIC PUMP, CESSNA, 9 GPM (07) - HYDRAULIC SYSTEM
1
4
3
2

Артикул

Название

Примечание

Количество

1

391354R92

PUMP

ASSY, hydraulic, includes Ref nos. 2, 3 and 4

1шт.

1

1949304C1

REMAN-HYD PUMP

Reman for New PN 391354R92

1шт.

1

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

383538R1

PLATE

washer

1шт.

3

383534R91

OIL SEAL

pump drive shaft

1шт.

4

383539R1

KEY

pump drive shaft

1шт.

383530R92

PACKAGE

hydraulic pump o-ring & gasket, consists of (1) diaphragm 406005R1 (NSS), (1) gasket 406006R1 (NSS), (1) gasket 406004R1 (NSS), (1) plate 397705R1, (NSS), (1) seal 383533R1 (NSS), (1) o-ring 350667R1, (1) o-ring 372821R1, (1) seal 383534R91

1шт.

Выбрано товаров: 7
