Запчасти Case IH 706 (F-09[A]) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA (07) - HYDRAULIC SYSTEM

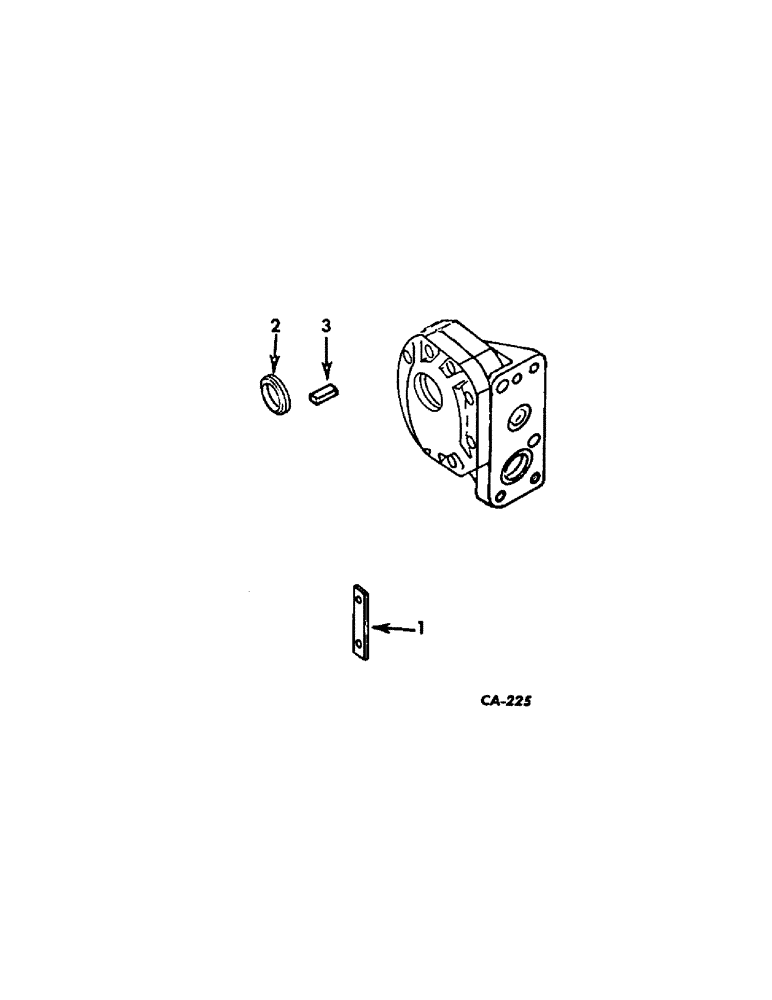

Схема запчастей Case IH 706 - (F-09[A]) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA (07) - HYDRAULIC SYSTEM
1
3
2

Артикул

Название

Примечание

Количество

527397R91

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear

1шт.

1949304C1

REMAN-HYD PUMP

Reman for New PN 527397R91

1шт.

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

383538R1

PLATE

washer

1шт.

528174R1

SCREW

5/16-18 special hex-hd. cap

2шт.

2

383534R91

OIL SEAL

pump drive shaft

1шт.

3

383539R1

KEY

pump drive shaft

1шт.

383530R92

PACKAGE

hydraulic pump o-ring & gasket, consists of (1) diaphragm 406055R1 (NSS), (1) diaphragm 383531R1 (NSS), (1) gasket 400006R1 (NSS), (1) gasket 371553R1 (NSS), (1) o-ring 350667R1, (1) o-ring 372821R1, (1) o-ring 372821R1, (1) seal 383534R91

1шт.

Выбрано товаров: 8
