Запчасти Case IH 706 (F-08) - HYDRAULICS SYSTEM, HYDRAULIC POWER SUPPLY, IN REAR FRAME (07) - HYDRAULIC SYSTEM

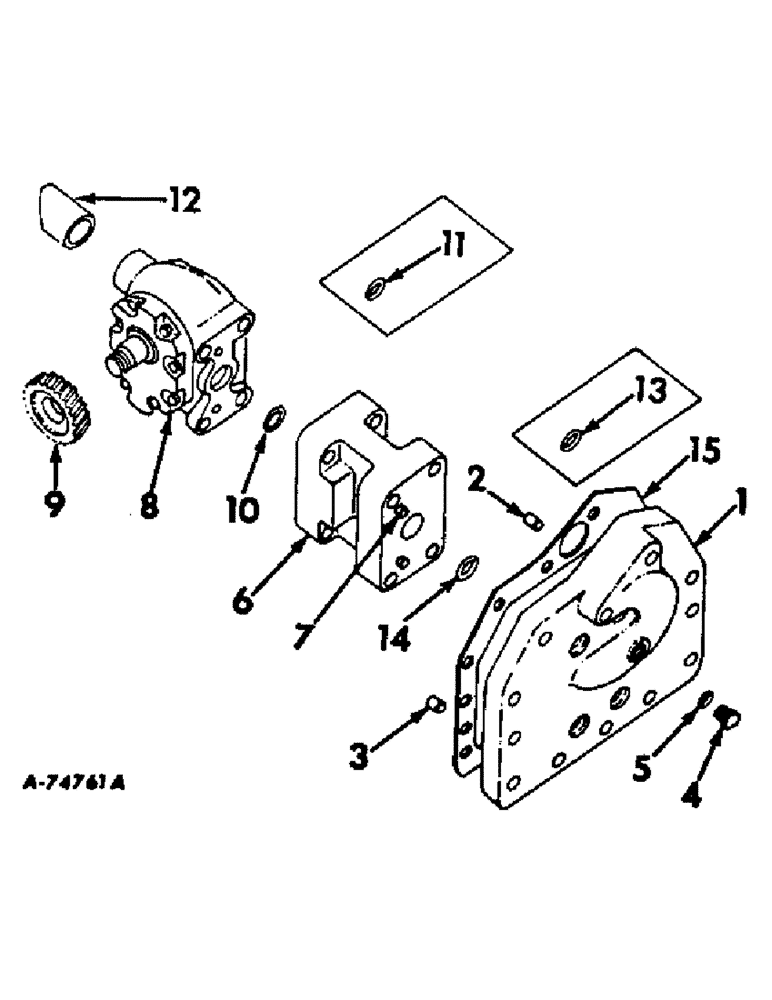

Схема запчастей Case IH 706 - (F-08) - HYDRAULICS SYSTEM, HYDRAULIC POWER SUPPLY, IN REAR FRAME (07) - HYDRAULIC SYSTEM
7
11
4
3
1
13
14
5
6
8
9
12
15
10

Артикул

Название

Примечание

Количество

1

387348R11

FLANGE ASSY, pump mounting

1шт.

1

537166R11

FLANGE

ASSY, pump mounting, includes ref nos 2 & 3, Farmall tractor w/serial no. 9853 & above, International tractor w/serial no. 7560 & above

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd. cap

10шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

20031R1

DOWEL,3/8" x 5/8"

PIN, 3/8 x 5/8 dowel

2шт.

3

19954R1

DOWEL,5/16" x 5/8"

PIN, 5/16 x 5/8 dowel

2шт.

4

9410358

PLUG

9/16-18 CD or zn pltd. hyd. str. thd., pump mounting flange

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pump mounting flange plug

1шт.

6

382753R1

SPACER ASSY, hyd. pump

1шт.

7

384115R1

PIN, hydraulic pump dowel

2шт.

8

373964R93

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 12 GPM, Cessna, for components see list of parts under details of hydraulic pump, optional with 374483R95

1шт.

8

374483R95

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 12 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 373964R93

1шт.

8

373966R93

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 17 GPM, Cessna, for components see list of parts under details of hydraulic pump, optional with 373966R93

1шт.

8

527755R91

PUMP

ASSY, hydraulic gear, 17 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 373966R93

1шт.

8

1949292C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

8

1949293C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

52999D

WASHER

GASKET, pump mounting bolt

4шт.

386029R1

SCREW, 7/16-14 x 5-1/4 hex-hd. cap, Farmall tractors 501 to 12147, International tractors, Serial Range: 501-1827

1шт.

16252R1

SCREW, 7/16-14 x 4-3/4 hex-hd. cap Hex, 7/16"-14 x 4 3/4", G5

4шт.

9

382754R2

GEAR

hyd. pump drive 23 T

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 Esna elastic stop

1шт.

10

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port, large

1шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pump pressure port, small, Farmall tractors 501 to 12147, International tractors 501 to 1827

1шт.

12

382755R1

TUBE

pump suction

1шт.

13

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

11/16 x 7/8 x 1 x 3/32 pressure port, small, Farmall tractors 501 to 12147, International tractors 501 to 1827

1шт.

14

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32 pressure port, large

2шт.

15

382244R1

GASKET

pump mounting flange

1шт.

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, pump suction port, Farmall tractors 501 to 3810, International tractors 501 to 878

1шт.

606749R91

OIL SEAL

pump suction tube oil, Farmall tractors 3811 up, International tractors 879 up

1шт.

Выбрано товаров: 30
