Запчасти Case IH 706 (G-47) - ELECTRICAL SYSTEM, COMBINATION TAIL AND STOP LIGHT, FOR TRACTORS EQUIPPED WITH CAB (06) - ELECTRICAL SYSTEMS

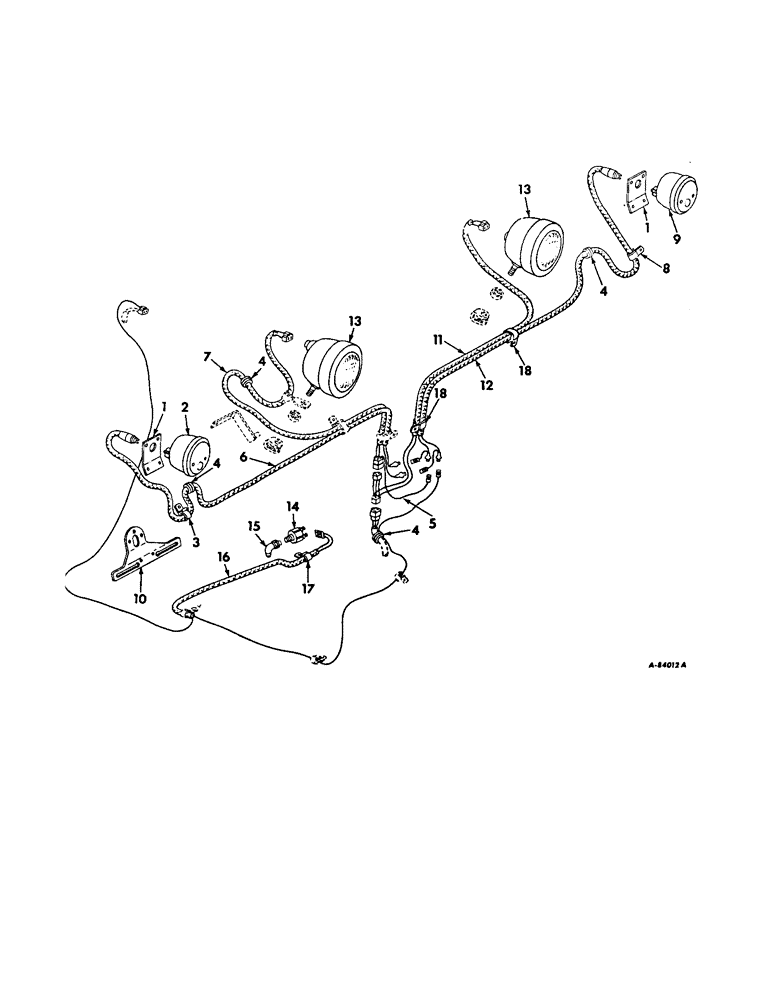

Схема запчастей Case IH 706 - (G-47) - ELECTRICAL SYSTEM, COMBINATION TAIL AND STOP LIGHT, FOR TRACTORS EQUIPPED WITH CAB (06) - ELECTRICAL SYSTEMS
4
1
13
15
13
9
4
7
14
16
17
1
6
11
5
4
3
10
18
8
4
18
12
2

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

Service parts for tractors equipped with dual combination stop and tail light, consists of all parts marked unit A

1шт.

392057R91

PARTS ACCESSORY, LH combination tail and stop light, consists of all parts marked unit B

1шт.

392059R91

PARTS ACCESSORY, dual combination tail and stop light, consists of all parts marked unit C

1шт.

392061R91

PARTS ACCESSORY, dual combination tail and stop light, for tractors equipped w/RH combination rear light att, consists of all parts marked unit D

1шт.

1

392069R1

BRACKET, combination tail & stop light, unit B

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd. mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1

392069R1

BRACKET, combination tail & stop light, 2 for units A, C, & D

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd. mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

45645HA

LIGHT

ASSY, LH combination tail, stop and license plate, units A, B, C, & D, composed of (1) body assy (NSS), (1) gasket 371956R1, (1) lamp 9417867, (1) lens 157729R1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

362121R1

CLIP

LH combination tail and stop light connector cable, units A, B, C, & D

1шт.

4

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

stop light connector cable, unit B, 2 for units A, C, & D

1шт.

5

392064R91

CABLE ASSY, tail light junction, units A, B, C and D

1шт.

6

392062R91

CABLE ASSY, LH combination stop light connector, units A, B, C & D

1шт.

7

392066R91

HARNESS ASSY, rear flood light extension cable, unit A

1шт.

8

362121R1

CLIP

RH combination tail and stop light connector cable, units A, C and D

1шт.

9

45645HA

LIGHT

ASSY, RH combination tail & stop, units A, C and D, composed of (1) body assy (NSS), (1) gasket 371956R1, (1) lamp 9417867, (1) lens 157729R1

1шт.

10

392070R1

BRACKET, license plate, units A, B, C, & D

1шт.

11

392067R91

HARNESS ASSY, RH rear flood light cable, unit A

1шт.

12

392063R91

CABLE ASSY, RH combination stop light connector, units A, C and D

1шт.

13

391005R91

HEADLIGHT

LIGHT ASSY, sealed beam shock proof rear flood, 2 for unit A, only serviceable item is sealed beam unit, 371443R91

1шт.

14

258298C91

SWITCH

hyd brake stop light, units A, B, C & D

1шт.

15

392068R1

ELBOW, hyd brake stop light switch mounting, units A, B, C & D

1шт.

16

392065R91

HARNESS ASSY, stop light switch cable, units A, B, C & D

1шт.

17

366460R1

CABLE CLIP

CLIP, stop light switch cable harness, units A, B, C & D

1шт.

18

362121R1

CLIP

RH combination tail & stop light connector cable, 2 for units A and C

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd. mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

Выбрано товаров: 35
