Запчасти Case IH 706 (G-44) - ELECTRICAL SYSTEM, TRACTOR CAB WIRING AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

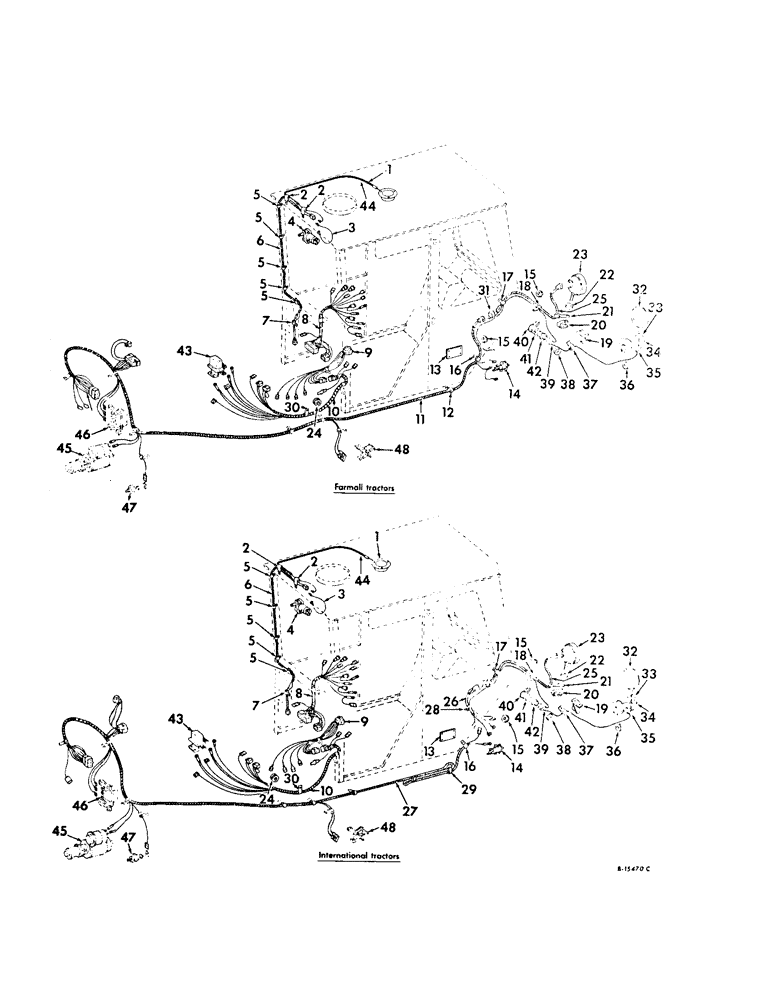

Схема запчастей Case IH 706 - (G-44) - ELECTRICAL SYSTEM, TRACTOR CAB WIRING AND CONNECTIONS (06) - ELECTRICAL SYSTEMS
9
16
5
13
5
26
47
2
3
4
25
30
2
31
37
5
43
41
21
14
36
2
18
32
45
6
44
33
18
8
20
43
7
42
23
19
15
21
32
1
15
2
15
5
45
34
37
1
44
39
35
3
5
16
13
36
14
17
46
39
4
15
30
20
22
40
28
46
22
24
35
19
41
5
9
8
33
34
48
42
10
27
2
7
2
24
2
38
10
11
6
38
17
48
25
40
12
5
23
47
29

Артикул

Название

Примечание

Количество

1

391758R91

LIGHT W/CABLE, cab dome, only serviceable itmes are lamp, 127934, lens, 395956R1 & ring, 395957R1, Farmall tractors w/serial no. 37236 & below, International tractors w/serial no. 5273 & below

1шт.

1

395276R91

LIGHT W/CABLE, cab dome, only serviceable items are lamp, 142456, lens, 336853C1 & three screws, 153002, Farmall tractors w/serial no. 37237 & above, International tractors w/serial no. 5274 & above, furnish light assy 404150R91 and cable 404151R1

1шт.

1

404150R91

LIGHT W/CABLE, cab dome, only serviceable items are lamp, 142459, lens 336853C1 and three screws 153002

1шт.

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, 6-32 x 5/8 C-Z cr-rec-dl-hd. mach

3шт.

2

299406C1

CLAMP,7/16", Insul, 3/8" Bolt

power supply cable harness

2шт.

3

391791R91

CABLE ASSY, wiper motor

1шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 C-Z slt-pan-hd. tap

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 C-Z int-ext tooth lock

1шт.

4

391195R91

WIPER MOTOR

MOTOR ASSY, windshield wiper, refer to windshield wiper motor listing, section N

1шт.

5

392797R1

CLAMP

cable harness

5шт.

441201

SCREW, 12-14 x 1/2 C-Z slt-pan-hd. tap

5шт.

6

391790R91

HARNESS ASSY, power supply cable

1шт.

7

392797R1

CLAMP

cable harness

1шт.

145200

SCREW, 12-14 x 5/8 C-Z slt-pan-hd. tap

1шт.

8

391193R92

HARNESS ASSY, RH panel cable, Farmall tractors w/serial no. 37236 & below, International tractors w/serial no. 5273 & below

1шт.

8

395341R1

HARNESS ASSY, RH panel cable, Farmall tractors w/serial 37237 & above, International tractors w/serial no. 5274 & above

1шт.

9

391242R91

HARNESS ASSY, RH panel adapter cable, for field reworking only, Farmall tractors w/serial no. 37236 & below, International tractors w/serial no. 5273 & below

1шт.

9

395342R1

HARNESS ASSY, RH panel adapter cable, for field rework when adding relay, 1115841, Farmall tractors w/serial 37237 & above, Intenational tractors w/serial no. 5274 & above

1шт.

10

391194R91

HARNESS ASSY, cab power supply cable, Farmall tractors w/serial no. 37236 & below, International tractors w/serial no. 5273 & below

1шт.

10

395343R1

HARNESS ASSY, cab power supply cable, Farmall tractors w/serial 37237 & above, International tractors w/serial no. 5274 & above

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 C-Z int-ext tooth lock, harness ground cable terminal

1шт.

11

384456R91

HARNESS

ASSY, rear main cable, carbureted engine tractors w/generator

1шт.

11

385003R91

HARNESS ASSY, rear main cable, carbureted engine tractors w/alternator

1шт.

11

384459R91

HARNESS

ASSY, rear main cable, diesel engine tractors w/generator

1шт.

11

396503R1

HARNESS ASSY, rear main cable, diesel engine tractors w/alternator

1шт.

12

384558R1

CLIP

rear main cable harness, on LH rear hyd. housing bolt

1шт.

13

391158R1

STRIP, electrical breakaway connector socket mounting

1шт.

14

370378R91

SOCKET

ASSY, electrical breakaway connector

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd. cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

42731H

GROMMET

cab power supply cable harness rubber

1шт.

16

362121R1

CLIP

rear main cable harness, on upper breakaway connector strip mounting bolt

1шт.

17

362121R1

CLIP

rear light extension cable, mount on inside rear of cab

1шт.

18

362121R1

CLIP

rear light extension cable harness, mount on inside rear of cab

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd.

1шт.

19

391157R11

BRACKET ASSY, rear light

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18 x 3/4 C-Z slt-truss-hd. mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

20

350920R1

CLAMP

combination rear light

1шт.

21

370820R1

CLIP

rear light extension cable harness, on light stud under spacer

1шт.

22

365503R1

SPACER

combination rear light

1шт.

23

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490 and unit, 371461R91, tractors with shock proof lights

1шт.

102637

NUT,1/2"-13, G5

1шт.

24

42731H

GROMMET

cab power supply cable harness rubber

2шт.

25

391192R91

HARNESS ASSY, rear light extension

1шт.

26

391241R91

HARNESS ASSY, extension main rear cable

1шт.

27

384463R91

HARNESS ASSY, rear main cable, carbureted engine tractors w/generator

1шт.

27

384999R91

HARNESS ASSY, rear main cable, carbureted engine tractors w/alternator

1шт.

27

384461R91

HARNESS ASSY, rear main cable, diesel engine tractors w/generator

1шт.

27

396501R1

HARNESS ASSY, rear main cable, diesel engine tractors w/alternator

1шт.

No longer available. Possible substitution is P/N 385012R91. This is about 2" longer than the original harness.

1шт.

28

362121R1

CLIP

rear main cable harness extension, on upper breakaway connector strip mounting bolt

1шт.

29

384558R1

CLIP

rear main cable harness, on LH rear hyd. housing bolt

1шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cab power supply cable harness, on LH front steering gear housing mounting bolt

1шт.

31

266516C1

CONNECTOR, ELEC

CONNECTOR, rear light extension cable

1шт.

32

394129R91

LIGHT

ASSY, flashing warning

1шт.

120371

NUT,1/2"-20, G5

Only serviceable items are lamp, 9417866 and lens, guide, 396585R1 or lens, Dietz, 899280R1 1/2"-20, G5

1шт.

33

394262R1

WASHER

GASKET, flashing warning light

1шт.

34

394466R1

BRACKET, flashing warning light

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

1шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

7/16-14 x 3/4 C-Z hex-hd. cap

1шт.

121621

WASHER, 7/16 C-Z med lock

1шт.

35

358986R1

CABLE CLIP

CLIP, flashing light cable terminal

1шт.

36

120302

GROMMET,3/8" ID x 27/32" x .188", Diag Cut

flashing light cable, fender

1шт.

37

366460R1

CABLE CLIP

CLIP, flashing light cable

1шт.

38

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

flashing light cable, cab

1шт.

39

394467R91

CABLE ASSY, flashing light

1шт.

40

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

41

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

42

394132R91

FLASHER UNIT

FLASHER, safety warning light

1шт.

43

1115841

RELAY

electric load, 202303R91

1шт.

157716

SCREW, 1/4-20 x 1/2 C-Z slt-hd-truss mach

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 C-Z int-ext tooth lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

44

404151R1

CABLE ASSY, dome light extension

1шт.

45

NSS

NOT SOLD SEPARAT

MOTOR ASSY, cranking, refer to cranking motor listing, this section

1шт.

46

NSS

NOT SOLD SEPARAT

REGULATOR ASSY, voltage, refer to voltage regulator listing, this section

1шт.

47

NSS

NOT SOLD SEPARAT

SWITCH ASSY, engine oil pressure, refer to crankcase and related parts listing, section C

1шт.

48

NSS

NOT SOLD SEPARAT

SWITCH ASSY, safety starting, refer to starting and lighting parts listing, this section

1шт.

Выбрано товаров: 82
