Запчасти Case IH 706 (G-42) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, FARMALL TRACTORS WITH DELUXE FLAT TOP FENDERS (06) - ELECTRICAL SYSTEMS

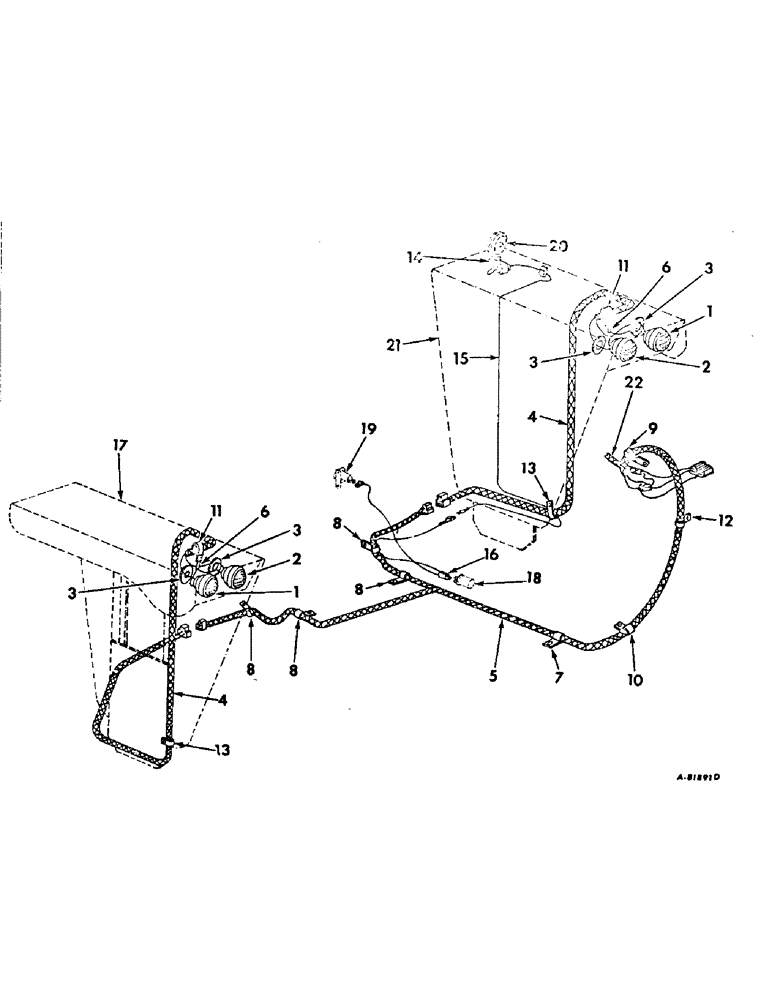

Схема запчастей Case IH 706 - (G-42) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, FARMALL TRACTORS WITH DELUXE FLAT TOP FENDERS (06) - ELECTRICAL SYSTEMS
7
5
2
17
12
10
21
4
19
3
3
16
8
14
15
3
6
20
8
8
6
1
2
22
11
4
11
9
13
8
1
13
3
18

Артикул

Название

Примечание

Количество

388932R92

PARTS ACCESSORY, deluxe fenders with adjustable lights, for sheet metal components, refer to deluxe flat top fenders w/adj headlights listing, section A

1шт.

1

388945R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items are sealed beam unit, 373662R91 and rubber retainer, 676078R1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

388946R91

LIGHT

ASSY, flood, only serviceable items are sealed beam unit, 390756R91 and rubber retainer, 676078R1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

388947R1

RETAINER

head light

4шт.

4

388949R91

HARNESS

CABLE ASSY, fender lighting

2шт.

5

388948R91

HARNESS

ASSY, lighting cable

1шт.

6

404393R1

CABLE

ASSY, headlamp to ground junction, will work for 374490R91

2шт.

7

383622R1

CLIP

lighting cable harness, on rear frame cover front mounting bolt

1шт.

8

384558R1

CLIP

lighting cable harness (4) on rear frame cover 3rd mounting bolt from front LH & RH side (2) on LH & RH axle carrier top front mounting bolt (2)

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

2шт.

9

363660R1

CLIP

lighting cable harness, twisted, on torque amplifier handle support bracket bottom front bolt

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, lighting cable harness, short, on rear frame cover LH front mounting bolt

1шт.

11

362121R1

CLIP

fender lighting cable, on LH & RH headlight panel

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

362121R1

CLIP

fender lighting cable, on voltage regulator upper LH mounting bolt

1шт.

13

366460R1

CABLE CLIP

CLIP, fender lighting cable, short, on LH & RH fender support front mounting bolt

2шт.

120376

NUT,5/16"-18, G5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd. cap

1шт.

106653

FUSE

cartridge type AGC-20

1шт.

14

358896R1

CLIP, flashing light cable, on light mounting stud, not included in parts accessory, 388932R92

1шт.

15

394265R91

CABLE ASSY, flashing warning light, not included in parts accessory, 388932R92

1шт.

16

394130R91

CABLE ASSY, flasher to light, not included in parts accessory, 388932R92

1шт.

17

NSS

NOT SOLD SEPARAT

FENDER ASSY, RH, refer to deluxe fenders listing, section A

1шт.

18

NSS

NOT SOLD SEPARAT

FLASHER ASSY, refer to starting and lighting listing, section G

1шт.

19

NSS

NOT SOLD SEPARAT

SOCKET ASSY, breakaway connector, refer to starting and lighting listing, section G

1шт.

20

NSS

NOT SOLD SEPARAT

LIGHT ASSY, flashing warning, refer to starting and lighting listing, section G

1шт.

21

NSS

NOT SOLD SEPARAT

FENDER ASSY, LH, refer to deluxe fenders listing, section A

1шт.

22

NSS

NOT SOLD SEPARAT

HARNESS ASSY, rear main cable, refer to starting and lighting listing, section G

1шт.

Выбрано товаров: 34
