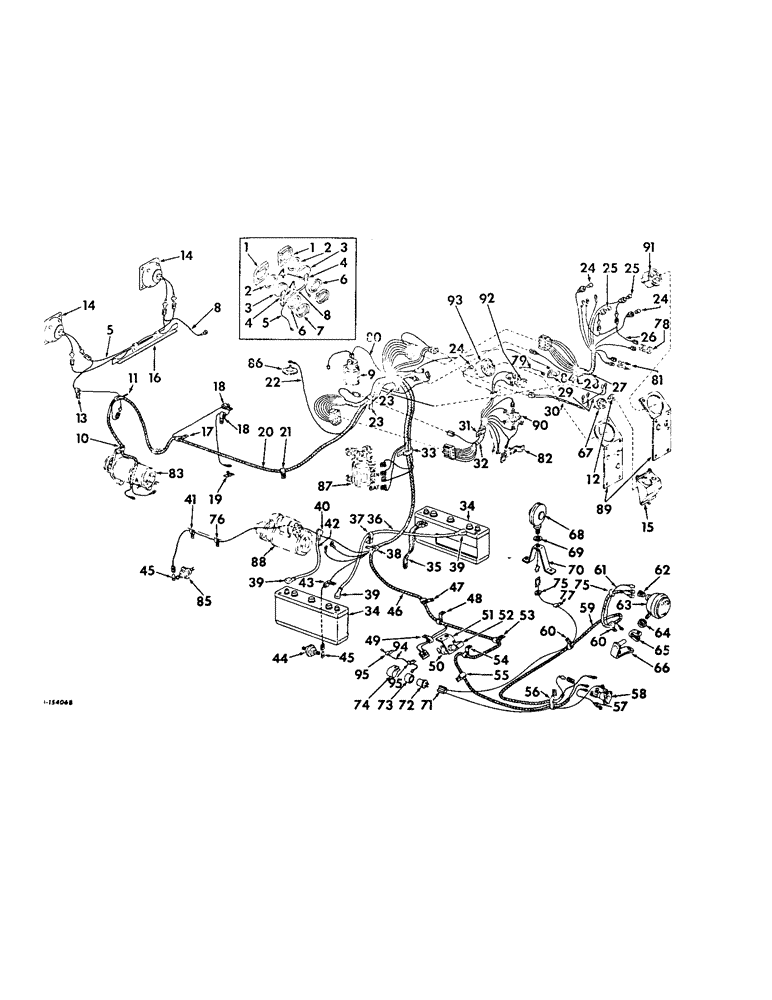

Запчасти Case IH 706 (G-35) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, INTERNATIONAL DIESEL ENGINE TRACTORS WITH GENERATOR (06) - ELECTRICAL SYSTEMS

1

377302R1

HOUSING, head light, for tractors up to serial no. 2999

2шт.

153326

SCREW,Cross Fil Hd, #10 - 24 x 1 1/2"

10-24 x 1-1/2 C-Z cr-rec-fil-hd. mach

4шт.

153797

SCREW, 1/4-20 x 1 C-Z cr-rec-fil-hd. mach

6шт.

2

377303R1

RING

head light retaining, front, for tractors up to serial no. 2999

2шт.

3

373662R91

LAMP

UNIT ASSY, head light sealed beam, for tractors up to serial no. 2999

2шт.

4

377300R91

CABLE ASSY, head light junction, for tractors up to serial no. 2999

4шт.

5

377299R91

CABLE ASSY, harness to head light junction, tractors w/serial no. 5273 & below

1шт.

5

396500R1

CABLE ASSY, harness to head light junction, tractors w/serial no. 5274 & above

1шт.

6

377304R1

SPECIAL RING

RING, head light retaining, rear, for tractors up to serial no. 2999

2шт.

7

377305R1

RING

head light clamping, for tractors up to serial no. 2999

1шт.

8

383592R91

CABLE ASSY, head light, Serial Range: junction-ground

1шт.

9

NSS

NOT SOLD SEPARAT

SOLENOID ASSY, ether starting, refer to ether starting listing, section E

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on generator adjustment bolt

1шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on hole in air cleaner bracket

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH ASSY, glow plug, refer to engine controls and instruments listing, section H

1шт.

13

366460R1

CABLE CLIP

CLIP, head light cable, on radiator mounting plate bracket upper mounting bolt

1шт.

14

387730R91

LIGHT

ASSY, shock proof head, only serviceable item is sealed beam unit, 373662R91, tractors w/serial no. 3000 & above

2шт.

387731R1

SPACER, head light

6шт.

156327

SCREW, 1/4-20 x 1-1/4 C-Z cr-rec flat-hd. mach

6шт.

15

NSS

NOT SOLD SEPARAT

HOUSING ASSY, glow plug, refer to engine controls and instruments listing, section H

1шт.

16

383857R21

BRACE ASSY, head light mounting

1шт.

17

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on fuel tank LH front mounting bolt

1шт.

18

366460R1

CABLE CLIP

CLIP, glow plug cable, on hole in heat shield & fuel tank LH front mounting bolt

1шт.

19

42915D

BLOCK

junction

1шт.

103088

NUT,#10-32

no. 10-32 hex

1шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

10-32 x 1/2 slt-rd-hd. mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

20

384462R91

HARNESS ASSY, front main cable

1шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on fuel tank LH rear mounting bolt

1шт.

22

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector, will work for 383593R91

1шт.

23

362666R1

CLIP

front and rear main harness

1шт.

24

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster

3шт.

25

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp tellite flasher

2шт.

26

383596R91

CABLE

ASSY, key switch to gauge cluster junction

1шт.

27

383609R91

HARNESS

ASSY, panel cable, RH

1шт.

28

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, RH panel harness

1шт.

29

375077R91

CABLE

ASSY, glow plug meter to glow plug switch

1шт.

30

384458R91

CABLE

ASSY, glow plug meter

1шт.

31

384557R1

CLIP

LH panel harness

1шт.

32

384465R91

HARNESS

ASSY, LH panel cable

1шт.

33

384557R1

CLIP

front & rear main harness, short

1шт.

34

392240R91

BATTERY, Prestolite 2E-A9Z, 6 volt

2шт.

35

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

36

383617R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, battery cable

2шт.

37

370383R1

CLIP

battery to battery cable

1шт.

38

362123R1

CLIP

rear main harness, large

1шт.

39

383619R1

COVER

battery cable terminal, large

1шт.

40

364910R1

BOOT

COVER, battery terminal

1шт.

41

365584R1

CLIP

engine oil pressure switch cable

1шт.

42

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, battery cable

1шт.

43

384556R1

CLAMP

CLIP, transmission oil pressure switch cable

1шт.

44

376855R92

SWITCH

ASSY, transmission oil pressure

1шт.

45

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

2шт.

46

384461R91

HARNESS ASSY, rear main cable

1шт.

47

366460R1

CABLE CLIP

CLIP, rear main harness, small

1шт.

48

383622R1

CLIP

cable harness

1шт.

49

366460R1

CABLE CLIP

CLIP, safety switch cable

1шт.

50

382728R91

SWITCH

ASSY, safety starting

1шт.

51

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

102635

NUT,3/8"-16, G5

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk. carriage

1шт.

52

384046R1

STEM

ROD, safety switch

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

53

383622R1

CLIP

cable harness, on rear frame cover LH side 3rd from front mounting bolt

1шт.

54

384559R1

CLIP

cable harness, on platform, 2nd from rear mounting bolt

1шт.

55

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on LH fender support plate

1шт.

56

362666R1

CLIP

rear main harness, double

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

57

404395R1

CABLE

ASSY, breakaway connector socket to ground, will work for 377119R91

1шт.

58

362002R92

SOCKET

ASSY, electrical breakaway

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd. mach

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

59

383614R92

CABLE ASSY, breakaway connector socket to rear light

1шт.

60

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear harness

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

61

377120R92

CABLE ASSY, combination rear, Serial Range: light-ground

1шт.

62

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

63

377102R91

NO LONGER SERVICED

LIGHT ASSY, combination rear and tail, tractor w/serial no. 2999 & below

1шт.

63

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490 and unit 371461R91, tractor serial no. 3000 & above

1шт.

102637

NUT,1/2"-13, G5

1шт.

64

365503R1

SPACER

combination rear light

1шт.

65

350920R1

CLAMP

combination rear light

1шт.

66

372355R11

SUPPORT

ASSY, combination rear light

1шт.

102635

NUT,3/8"-16, G5

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd. cap

2шт.

67

NSS

NOT SOLD SEPARAT

METER, glow plug, refer to engine controls and instruments listing, section H

1шт.

68

394129R91

LIGHT

ASSY, flashing warning

1шт.

120371

NUT,1/2"-20, G5

Only serviceable items are lamp, 9447866 and lens, guide, 396585R1 or lens, Dietz, 899280R1 1/2"-20, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z med lock

1шт.

69

394262R1

WASHER

GASKET, flashing warning light

1шт.

70

394337R1

BRACKET, flashing light

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

71

394334R91

CABLE ASSY, Serial Range: flasher-light

1шт.

72

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

73

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

74

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

75

NLS

NO LONGER SERVICED

2шт.

76

384554R1

CLIP

engine oil pressure switch cable

1шт.

77

362667R1

CLIP

flashing light cable

1шт.

78

NSS

NOT SOLD SEPARAT

SWITCH ASSY, ignition, refer to engine controls and instruments listing, section H

1шт.

79

395077R1

CABLE

ASSY, ether push button switch

1шт.

80

396505R1

CABLE ASSY, ether starting

1шт.

81

NSS

NOT SOLD SEPARAT

HOUSING ASSY, fuse, refer to engine controls and instruments listing, section H

1шт.

82

NSS

NOT SOLD SEPARAT

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

83

NSS

NOT SOLD SEPARAT

GENERATOR ASSY, refer to generator listing, this section

1шт.

84

NSS

NOT SOLD SEPARAT

SWITCH ASSY, ether push button, refer to engine controls and instruments listing, section H

1шт.

85

NSS

NOT SOLD SEPARAT

SWITCH ASSY, engine oil pressure, refer to crankcase and related parts listing, section C

1шт.

86

NSS

NOT SOLD SEPARAT

SENDING UNIT ASSY, fuel gauge, refer to fuel tank supports and piping listing, section E

1шт.

87

NSS

NOT SOLD SEPARAT

REGULATOR ASSY, voltage, refer to voltage regulator listing, this section

1шт.

88

NSS

NOT SOLD SEPARAT

MOTOR ASSY, cranking, refer to cranking motor listing, this section

1шт.

89

NSS

NOT SOLD SEPARAT

PANELS, instrument LH and RH, refer to engine controls and instruments listing, section H

1шт.

90

NSS

NOT SOLD SEPARAT

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

91

NSS

NOT SOLD SEPARAT

CLUSTER ASSY, gauge, refer to engine controls and instruments listing, section H

1шт.

92

NSS

NOT SOLD SEPARAT

SWITCH ASSY, pushbutton, refer to engine controls and instruments listing, section H

1шт.

93

NSS

NOT SOLD SEPARAT

TACHOMETER ASSY, refer to engine controls and instruments listing, section H

1шт.

94

384238R91

HARNESS ASSY, safety starting switch, tractors w/over center clutch

1шт.

95

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, safety starting switch, tractors w/over center clutch

2шт.

14995R1

BOLT

3/8-16 x 3/4 sq-nk. crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

395471R1

CABLE ASSY, alternator dual charge & load circuit, tractor w/air conditioned cab

1шт.

394473R91

CABLE ASSY, flashing warning light jumper, used to provide a means of omitting flashing feature of the warning light

1шт.
