Запчасти Case IH 706 (G-15) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

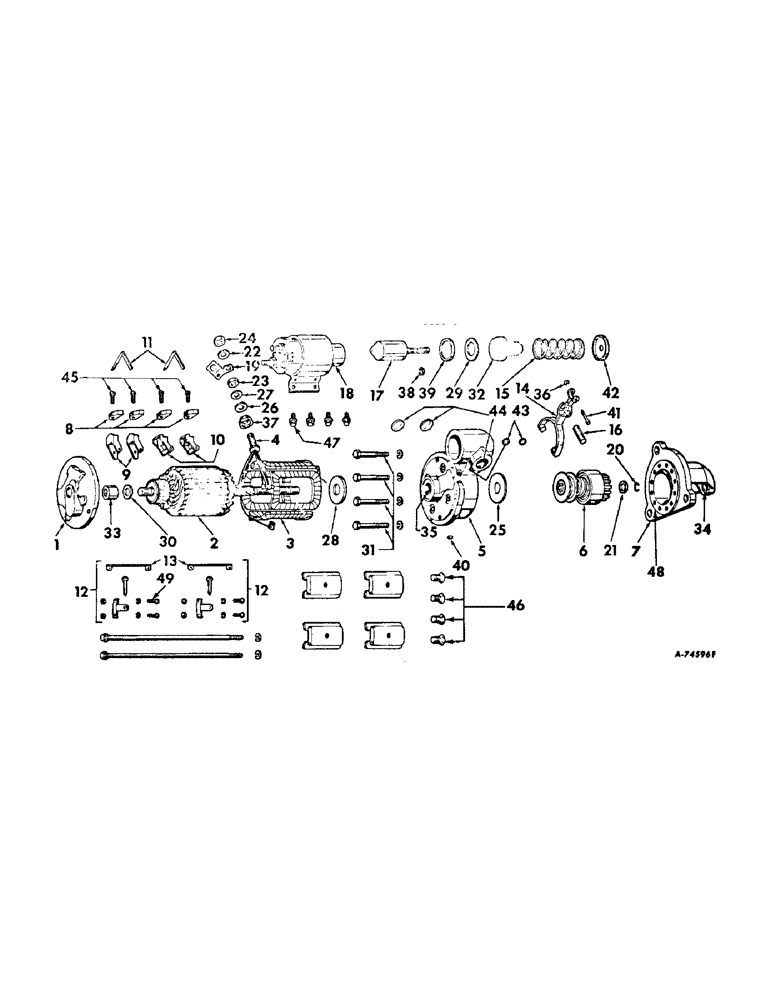

Схема запчастей Case IH 706 - (G-15) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
38
34
45
11
22
43
16
41
12
30
18
40
42
44
36
25
37
13
33
10
14
31
15
29
7
23
1
48
3
24
39
49
6
27
32
26
20
2
46
21
5
28
47
19
9
17
35
12
4
8

Артикул

Название

Примечание

Количество

1113176

MOTOR HOUSING

MOTOR ASSY, cranking, 383999R91 12 volt, Farmall tractor serial no. 37236 and below, International tractor serial no. 5273 & below

1шт.

1113197

SPARE PART MOTOR ASSY, cranking, 395758R91, 12 volt, Farmall tractor serial no. 37237 and above, International tractor serial no. 5274 & above

1шт.

104205A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104205A1C

CORE-STARTER

Return Number

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x1-1/8 hex-hd. cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

1

1945617

HOLDER

FRAME W/BUSHING, 1872678 plug, 125947 & wick, 1909654, commutator end

1шт.

1916439

WICK

WICK, commutator end

1шт.

2

1956903

ARMATURE

ARMATURE

1шт.

3

1945612

COIL ASSY.

COIL ASSY, field, 4 coils

1шт.

1913534

FOAM INSULATION

INSULATION, field coil, for cranking motor 1113176

2шт.

1914873

INSULATOR

INSULATION, field coil, for cranking motor 1113197

2шт.

4

1945626

SPARE PART STUD, terminal, for cranking motor 1113176

1шт.

4

1933879

TERMINAL CONNECTOR

STUD, terminal, for cranking motor 1113197

1шт.

5

1942241

HOUSING

HOUSING ASSY, lever, composed of (1) bushing 1933999, (2) plug 9411375, (1) plug 1942957, (1) wick 1947350

1шт.

6

1933838

MOTOR, ELECTRIC

MOTOR ASSY, drive, for cranking motor 1113176

1шт.

6

1948877

DRIVE

MOTOR ASSY, drive, for cranking motor 1113197

1шт.

7

1952970

HOUSING

HOUSING W/BUSHING, 1943628 plug, 125947 & wick, 1909654, drive, for cranking motor 1113176

1шт.

7

1967333

HEAD (CYLINDER)

HOUSING W/BUSHING, 1943628, plug 125947 & wick, 1909654, drive, for cranking motor 1113197

1шт.

1916439

WICK

WICK, drive end

1шт.

8

1906987

BRUSH

BRUSH

4шт.

9

1926617

BRUSH HOLDER

HOLDER, brush ground, for cranking motor 1113176

2шт.

9

1940477

HOLDER

HOLDER, brush ground, for cranking motor 1113197

2шт.

10

1950546

HOLDER

HOLDER, brush insulated

2шт.

11

1945620

SPRING

SPRING, brush

2шт.

12

1945923

PACKAGE

PACKAGE, brush support

2шт.

13

1930694

CABLE

LEAD, ground

2шт.

14

1942245

LEVER

LEVER, shift

1шт.

15

1942260

SPRING

SPRING, lever, for cranking motor 1113176

1шт.

15

1948521

SPRING

SPRING, lever, for cranking motor 1113197

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

17

1942250

PLUNGER

PLUNGER

1шт.

18

1115510

SOLENOID SWITCH

SWITCH ASSY, solenoid

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

1942249

CONNECTOR, ELEC

CONNECTOR CONNECTOR, switch

1шт.

20

1928022

SNAP RING

RING, pinion stop retainer

1шт.

21

1928021

COLLAR

COLLAR, pinion stop

1шт.

22

110730

LOCK WASHER

WASHER, terminal stud lock, for cranking motor 1113176

1шт.

22

110730

LOCK WASHER

WASHER, terminal stud lock, for cranking motor 1113197

1шт.

23

805258

NUT

NUT, terminal stud, 5/32 in. thick

1шт.

24

120377

NUT,3/8" - 16, Gr 5

NUT, , Terminal stud outer 3/8"-16, G5

1шт.

25

821453

WASHER

brake, between lever housing & motor drive

1шт.

26

1857268

INSULATING WASHER

WASHER, insulating terminal stud, for cranking motor 1113176

1шт.

26

1950029

WASHER

WASHER, insulating terminal stud, for cranking motor 1113197

1шт.

27

805790

WASHER

WASHER, terminal stud plain

1шт.

28

NLS

NO LONGER SERVICED

WASHER, space, between lever housing & armature

1шт.

29

1942259

WASHER

WASHER, retainer spring

1шт.

30

833602

WASHER

WASHER, commutator end space, for cranking motor 1113176

1шт.

30

1914842

WASHER

WASHER, commutator end space, for cranking motor 1113197

1шт.

31

122077

PLUG

drive housing attaching

4шт.

32

1942257

BOOT

BOOT

1шт.

33

1872678

BUSHING

BUSHING, commutator end

1шт.

34

1943628

BUSHING

BUSHING, drive end, for cranking motor 1113176

1шт.

34

1955994

BUSHING

BUSHING, drive end, for cranking motor 1113197

1шт.

35

1933999

BUSHING

BUSHING, lever housing

1шт.

36

1938376

RING, SNAP

RING SNAP RING, lever attaching pin snap

1шт.

37

931783

BUSHING, insulating terminal stud

1шт.

38

9415234

SNAP RING

RING, spring retainer snap, for cranking motor 1113176

1шт.

38

9415235

RING, SNAP

RING SNAP RING, spring retainer snap, for cranking motor 1113197

1шт.

39

1942256

RETAINER

RETAINER, spring 1-13/64 in. hole

1шт.

40

809593

PIN

PIN, drive housing dowel, for cranking motor 1113176

1шт.

40

1947350

WICK

WICK, lever housing, for crank motor 1113197

1шт.

41

1942253

PIN

PIN, lever attaching

1шт.

42

1942282

PIN

RETAINER, spring, 13/32 in. hole

1шт.

43

1419572

PLUG

PLUG, 1/2 dia. lever housing

2шт.

44

9411375

PLUG

PLUG, 1-3/16 diameter lever housing

2шт.

45

1959514

SCREW

SCREW, brush attaching, for cranking motor 1113197

4шт.

46

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

47

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

48

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

49

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

Выбрано товаров: 76
