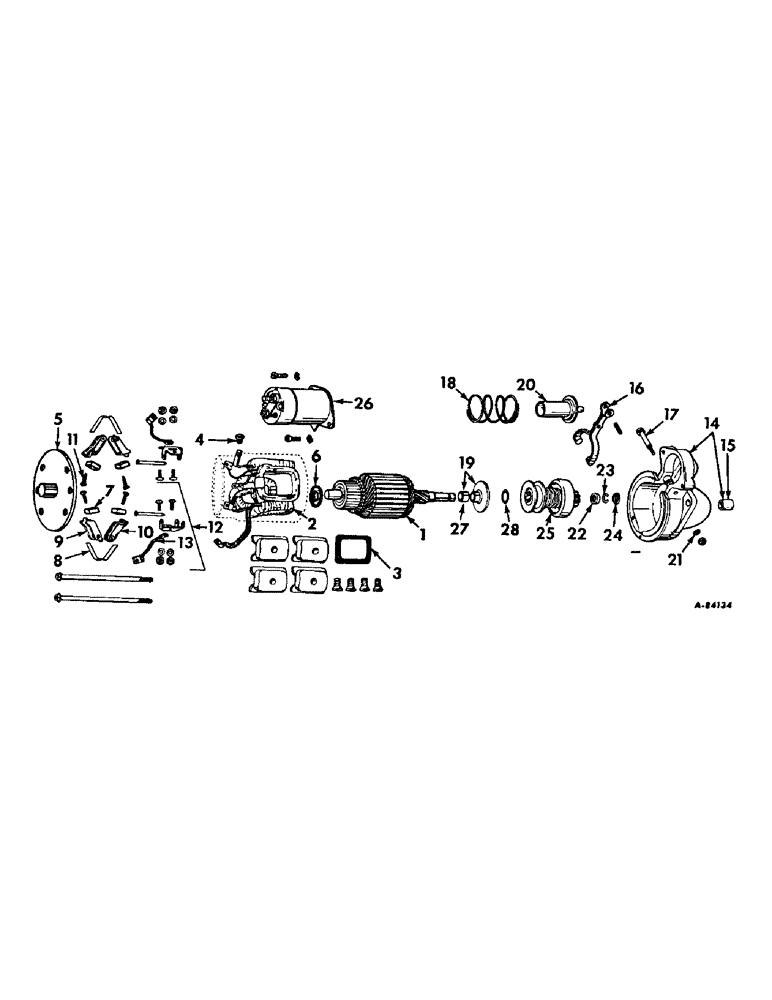

Запчасти Case IH 706 (G-14) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1108334

SPARE PART MOTOR ASSY, cranking, 396565R91, 12 volt, consists of all unmarked parts, and those marked unit B

1шт.

104190A1R

REMAN-STARTER

Remanufactured Starter (replaced 1107275)

1шт.

104190A1C

CORE-STARTER

Return Number

1шт.

104193A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104193A1C

CORE-STARTER

Return Number

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

120622

NUT,#8-32

NUT, #8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd. cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

1947353

FRAME

ARMATURE

1шт.

2

1942870

COIL

FIELD COIL ASSY, 3 coils

1шт.

1935131

COIL

COIL, shunt field

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

4

1935168

GROMMET

GROMMET, field frame, unit A

1шт.

4

1966391

GROMMET

GROMMET, field frame, unit B

1шт.

5

1928966

FRAME

FRAME, commutator end

1шт.

6

833602

WASHER

WASHER, commutator end brake, unit A

1шт.

6

1914842

WASHER

WASHER, commutator end brake, unit B

1шт.

7

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1926617

BRUSH HOLDER

HOLDER, brush ground, unit A

2шт.

9

1940477

HOLDER

HOLDER, brush ground, unit B

2шт.

10

1938587

BRUSH HOLDER

HOLDER, brush insulated, unit A

2шт.

10

1926618

HOLDER

HOLDER, brush insulated, unit B

2шт.

11

1926648

SCREW, brush attaching

4шт.

12

1928015

BRACKET

PACKAGE, brush holder support

2шт.

13

1926605

ELECTRICAL WIRE

WIRE LEAD, brush ground

2шт.

14

1961176

SPARE PART HOUSING ASSY, drive end, unit A

1шт.

14

1968704

HOUSING ASSY, drive end, unit B

1шт.

15

1839345

BUSHING

BUSHING, drive end bushing

1шт.

16

1932205

LEVER

LEVER, shift, unit A

1шт.

16

1951567

LEVER

LEVER, shift, unit B

1шт.

17

1932197

SCREW

STUD, shift lever, unit A

1шт.

17

1814529

STUD, shift lever, unit B

1шт.

18

1932208

SPRING

SPRING, plunger return, unit A

1шт.

18

1958679

SPRING

SPRING, plunger return, unit B

1шт.

19

820149

PLATE

PLATE ASSY, center bearing

1шт.

20

1953041

PLUNGER

PLUNGER, solenoid switch, unit A

1шт.

20

1941113

PLUNGER

PLUNGER, solenoid switch, unit B

1шт.

21

1953479

WASHER, shift lever stud sealing lock

2шт.

22

1928021

COLLAR

COLLAR, pinion stop drive end

1шт.

23

1928022

SNAP RING

RING, pinion stop retainer drive end

1шт.

24

1928023

WASHER

COLLAR, drive end spacing

1шт.

25

1939109

PINION

DRIVE ASSY, motor, unit A

1шт.

25

1968705

DRIVE

DRIVE ASSY, motor, unit B

1шт.

26

1114356

SOLENOID,Starter

SWITCH ASSY, solenoid

1шт.

120622

NUT,#8-32

NUT, #8-32

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

27

820148

BUSHING

BUSHING, center bearing

1шт.

28

821453

WASHER

between center bearing & motor drive

1шт.

1952427

GASKET

GASKET, solenoid switch

1шт.
