Запчасти Case IH 706 (G-12) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, DELCO REMY (06) - ELECTRICAL SYSTEMS

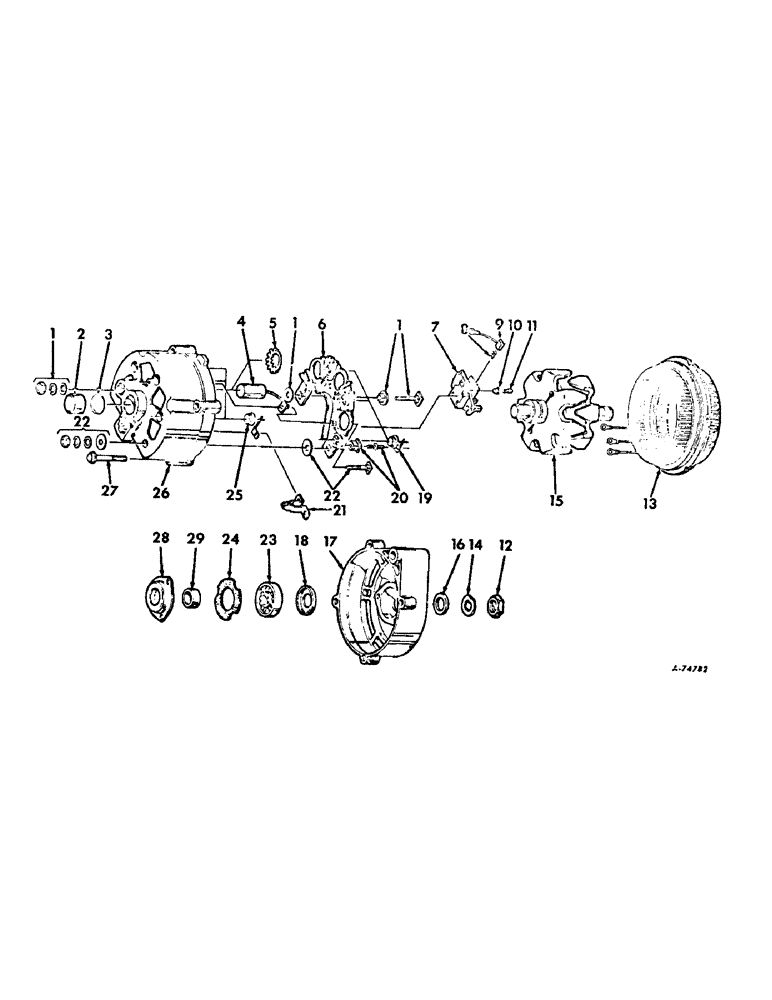

Схема запчастей Case IH 706 - (G-12) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, DELCO REMY (06) - ELECTRICAL SYSTEMS
15
19
27
28
8
7
20
6
10
25
22
3
16
11
23
1
17
4
26
2
18
24
1
1
14
29
21
9
12
5
13

Артикул

Название

Примечание

Количество

1100720

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 389276R91, Farmall tractors w/serial no. 37236 & below, International tractors w/serial no. 5273 & below

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1100689

ALTERNATOR GENERATOR ASSY, 250348C91, tractors w/air conditioned cab, 32 amp

1шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL PACKAGE, ground

1шт.

2

7451326

BEARING

BEARING, slip ring end roller

1шт.

3

1959790

SEAL

RETAINER W/FELT, slip ring end

1шт.

4

1959455

CAPACITOR

CAPACITOR, used only with 1100689

1шт.

5

1960750

VALVE SPRING

SPRING, capacitor, used only with 1100689

1шт.

6

1959828

PACKAGE

HEAT SINK ASSY

1шт.

7

1964682

HOLDER

HOLDER ASSY, brush & spring

1шт.

8

1955519

SPRING

SPRING, brush, order holder assy., 1964682

2шт.

9

1958197

SPARE PART BRUSH, order holder assy., 1964682

2шт.

10

1959389

INSULATOR

INSULATOR, capacitor screw

2шт.

11

1957501

SCREW

SCREW, brush holder attaching

2шт.

12

1911324

NUT

NUT, drive end shaft

1шт.

13

1959381

COIL

STATOR ASSY

1шт.

14

1941978

WASHER

WASHER, drive end shaft

1шт.

15

1964695

ROTOR

ROTOR ASSY

1шт.

16

1959991

COLLAR

COLLAR, drive end outside spacer

1шт.

17

1959917

FUNNEL

FRAME, drive end

1шт.

18

1947344

SLINGER

SLINGER, drive end grease

1шт.

19

1959829

DIODE

DIODE, positive

3шт.

20

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

21

NSS

NOT SOLD SEPARAT

(Not used)

1шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

954378

BALL BEARING

BEARING, drive end ball

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1959830

SET

DIODE, negative

3шт.

26

1959827

FUNNEL

FRAME FRAME W/NEGATIVE DIODE, bearing, retainer & condenser

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1955494

PLATE

RETAINER ASSY, drive end bearing

1шт.

1965104

HOSE

SCREW, attaching

3шт.

29

1963139

COLLAR CLAMP

COLLAR, drive end inside spacer

1шт.

Выбрано товаров: 34
