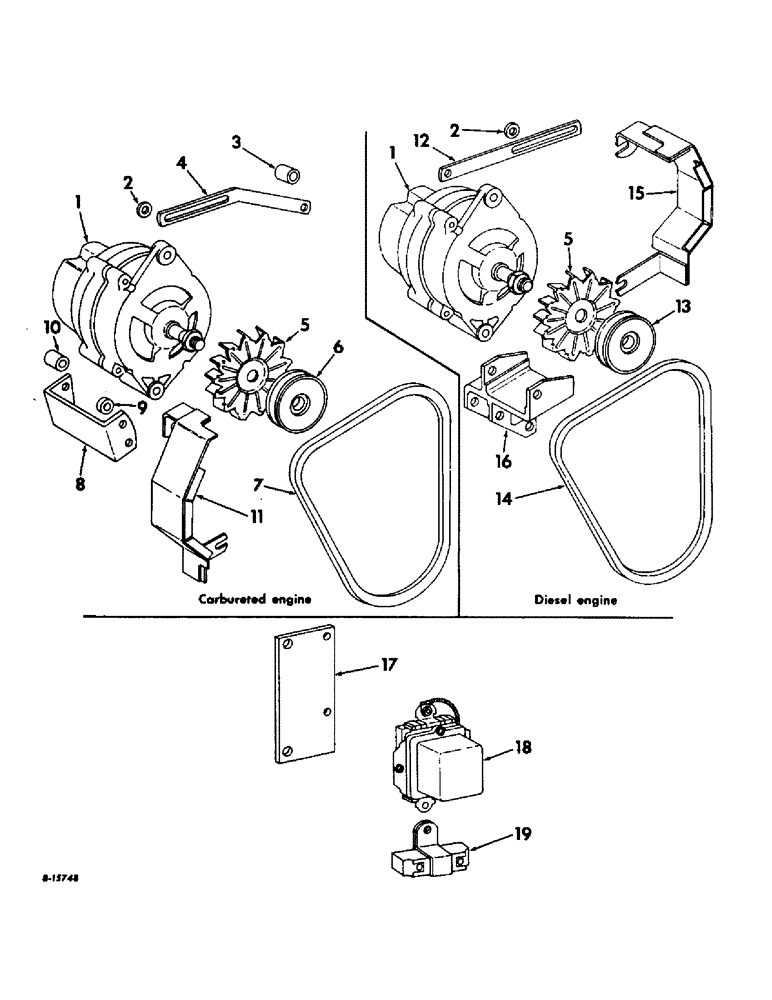

Запчасти Case IH 706 (G-09) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91, 55 amp

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1100689

ALTERNATOR GENERATOR ASSY, 250348C91, 32 amp, for components, see list of parts under details of alternator generator

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex, mach screw

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

2

280185R1

SPACER

SPACER, alternator generator brace

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

371108R1

SPACER,3/8" Pipe x .844"

SPACER, generator brace

1шт.

4

371107R2

SUPPORT

BRACE, alternator generator

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

1940994

FAN

FAN, alternator generator

1шт.

6

384986R1

PULLEY

PULLEY, alternator generator

1шт.

7

393415R1

BELT

BELT, Generator & water pump

1шт.

8

384991R1

SUPPORT

BRACKET, alternator generator mounting

1шт.

8

395454R1

SPARE PART BRACKET, alternator, carbureted engine tractors w/air conditioner

1шт.

102635

NUT,3/8"-16, G5

NUT, 3/8"-16, G5

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 hex-hd. cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

384992R1

SPACER

SPACER, alternator generator mounting bracket, short

1шт.

10

384993R1

SPACER

SPACER, alternator generator mounting bracket, long

1шт.

10

351549R1

WASHER

SPACER, alternator bracket, tractors w/air conditioner

1шт.

11

396360R1

SHIELD

SHIELD ASSY, alternator fan & pulley

1шт.

12

396359R1

SPARE PART

BRACE, alternator mounting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

13

1946716

PULLEY

PULLY, alternator

1шт.

14

396543R1

V-BELT,0.50" W x 63.50" L

Generator & water pump

1шт.

15

396365R1

SHIELD

SHIELD ASSY, alternator fan & pulley

1шт.

16

3056886R11

SPARE PART BRACKET ASSY, alternator generator mounting, carbureted engine tractors

1шт.

16

3132268R12

HOLDER

BRACKET ASSY, alternator generator, diesel engine tractors, will work for 3056886R11

1шт.

16073R1

SCREW, 5/16-18 x 2-3/8 hex-hd. cap

2шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

384989R91

SPARE PART BRACKET ASSY, voltage regulator mounting

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

1шт.

179804

RETAINING WIRE

SCREW, 1/4-20 x 1-7/8 hex-hd. cap

1шт.

385544R1

SPACER,1/4" Pipe x 3/8"

SPACER, mounting bracket, short

1шт.

385545R1

SPARE PART SPACER, mounting bracket, long

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

1119516

REGULATOR

REGULATOR ASSY, voltage, 384988R91, composed of (1) cover 1958151, (1) regulator 1119515, (2) screw, cover 1962733, (1) shock bracket package 1962629

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

1962014

RESISTOR

RESISTANCE UNIT

1шт.

2751808R1

PRODUCT GRAPHIC

PRODUCT GRAPHIC, warning decal, for red vehicle

1шт.

2751893R1

PRODUCT GRAPHIC

PRODUCT GRAPHIC, warning decal, for yellow vehicle

1шт.
