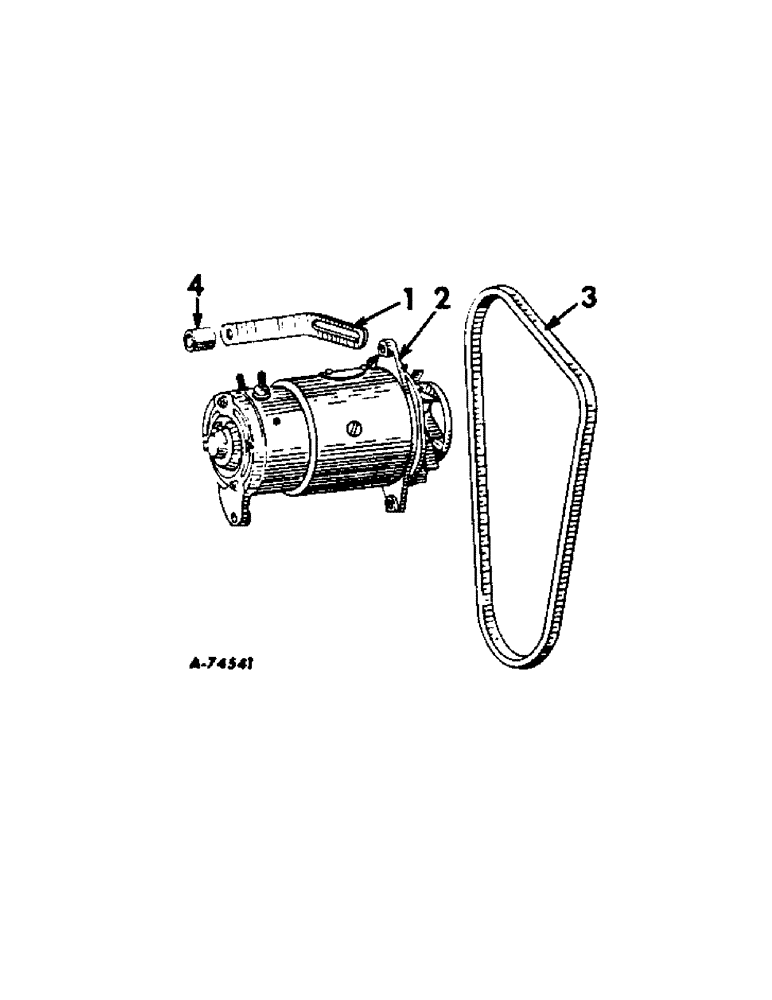

Запчасти Case IH 706 (G-06) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

367250R1

SPARE PART BRACE, generator, gasoline

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd. cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

1

371107R2

SUPPORT

BRACE, generator, LP gas

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd. cap

1шт.

2

1100401

SPARE PART GENERATOR ASSY, 369599R92, for components see list of parts under details of generator

1шт.

2

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

2

103804A1R

REMAN-ALTERNATOR

Generator

1шт.

2

103804A1C

CORE-ALTERNATOR

Return number

1шт.

2

104019A1R

REMAN-GENERATOR

Remanufactured, 12 volt 25 ampere

1шт.

2

104019A1C

CORE-GENERATOR

Return Number, 12 volt 25 ampere

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

332562R1

BELT,0.57" W

Generator and water pump

1шт.

4

280185R1

SPACER

SPACER, generator brace, gasoline

1шт.

4

371108R1

SPACER,3/8" Pipe x .844"

SPACER, generator brace, LP gas

1шт.
