Запчасти Case IH 706 (G-06[A]) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

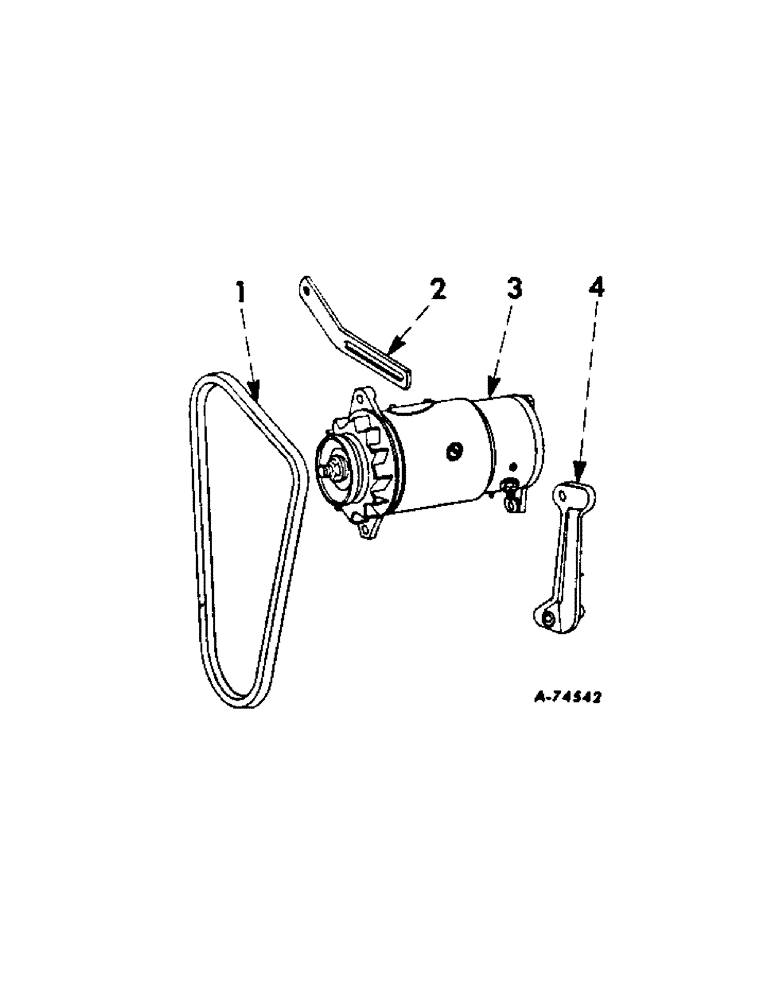

Схема запчастей Case IH 706 - (G-06[A]) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
4
1
3
2

Артикул

Название

Примечание

Количество

1

316250R1

BELT,0.50" W

Generator and water pump (Diesel)

1шт.

2

304018R1

BRACE

BRACE, generator (Diesel)

1шт.

NSS

NOT SOLD SEPARAT

NUT, 7/16-14 hex (Diesel)

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, (Diesel) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

280185R1

SPACER

SPACER, generator brace (Diesel)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Diesel) 5/16"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (Diesel) 7/16"

1шт.

3

1100395

SPARE PART GENERATOR ASSY, 303964R92, for components see list of parts under details of generator (Diesel)

1шт.

3

104018A1R

REMAN-GENERATOR

2 Brush

1шт.

3

104018A1C

CORE-GENERATOR

Return Number

1шт.

425-115

NUT,5/16"-24, G5

NUT, 5/16-24 hex (Diesel)

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, (Diesel) Hex, 5/16"-18 x 1 1/8", G5

1шт.

181343

BOLT,Hex, 5/16" - 24 x 1 1/2", Gr 5

SCREW, 5/16-24 x 1-1/2 hex-hd. cap (Diesel)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Diesel) 5/16"

2шт.

95-11034

WASHER,1/4"

WASHER, 11/32 x 11/16 x .065 (Diesel)

2шт.

4

304017R1

SPARE PART BRACKET, generator rear mounting (Diesel)

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, (Diesel) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Diesel) 5/16"

2шт.

Выбрано товаров: 18
