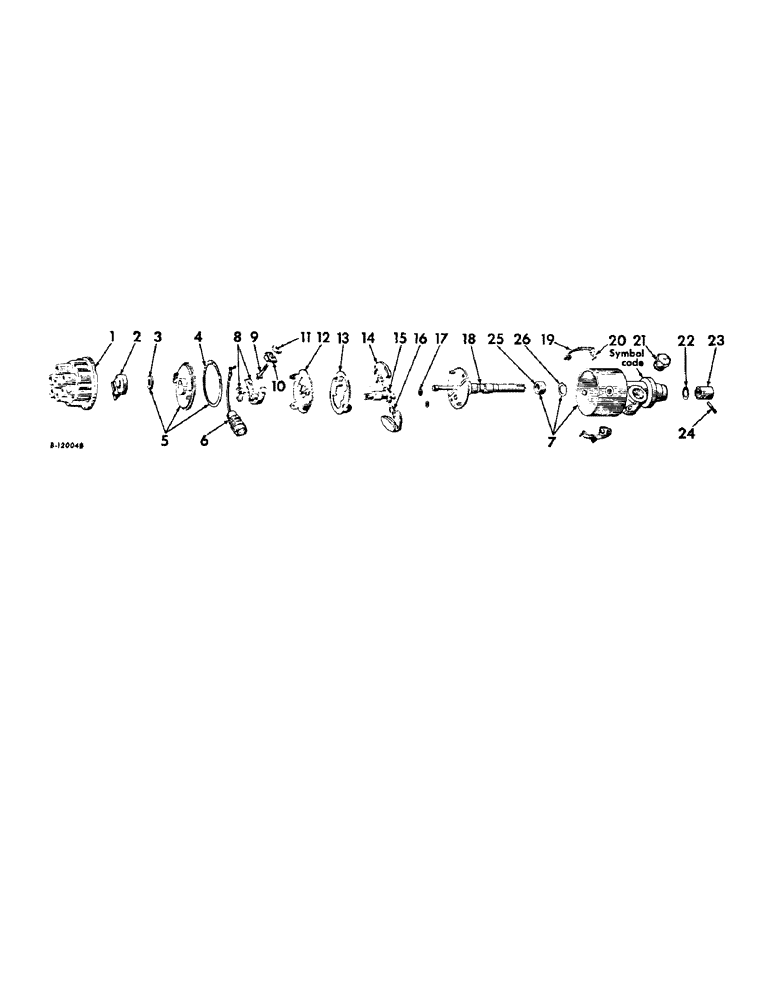

Запчасти Case IH 706 (G-05) - ELECTRICAL SYSTEM, DISTRIBUTOR (06) - ELECTRICAL SYSTEMS

107310C91

DISTRIBUTOR

ASSY, AD symbol, order distributor, 388592R91, for C-263 gasoline engines up to serial no. 52339 & C-263 LP gas engines up to serial no. 51854 (replaced 372986R91)

1шт.

388535R91

DISTRIBUTOR

ASSY, AP symbol, for C-263 LP gas engines with serial nos., Serial Range: 51855-62128

1шт.

388592R91

DISTRIBUTOR

ASSY, AN symbol, for C-263 gasoline engines with serial no. 52340 and above or for C-263 LP gas engines with serial no. 62129 and above, C-291 LP gas engines, serial no. 5800 and below

1шт.

399597R91

DISTRIBUTOR

ASSY, C-291 LP gas engines, serial no. 5801 and above

1шт.

398690R91

DISTRIBUTOR

ASSY, AS symbol, C-291 gasoline engines

1шт.

1

368062R91

CAP

ASSEMBLY, distributor

1шт.

1

368062R91GV

CAP

Value, distributor cap

1шт.

2

353896R91

ROTOR ASSY.

ROTOR ASSEMBLY, distributor

1шт.

3

353901R2

FELT SEAL

FELT, breaker cover seal

1шт.

4

352284R2

GASKET

breaker cover, for C-263 engines

1шт.

4

384830R1

GASKET

breaker cover, for C-291 engines

1шт.

5

384831R91

COVER

ASSY, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

353903R92

CONDENSER

ASSEMBLY

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

no. 8-32 x 3/16 C-Z slt-fil-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

368051R11

HOUSING ASSY, distributor

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 C-Z slt. hdls pipe

1шт.

8

372951R91

SCREW,POINTED

POINT SET, distributor

1шт.

8

372951R91GV

SET

Value, Pointed Screw

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

no. 8-32 x 3/16 C-Z slt-pan-hd. mach

1шт.

21394D

WASHER

stationary point and terminal

3шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

372868R11

RETAINER

PLATE ASSY, breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

no. 8-32 x 3/8 C-Z slt-rd-hd. mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

353920R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

no. 8-32 x 1/4 C-Z slt-fil-hd. mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353917R91

ARM

ASSY, weight

2шт.

15

356192R91

CAM

ASSEMBLY

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

362725R91

SPRING

governor, set of two, for distributors 372986R91, 388592R91 and 399597R91, also order shaft, 388593R91 for service replacement on distributor, 372986R91

1шт.

16

389004R91

SPRING, governor, set of two, for distributor, 388535R91

1шт.

16

381673R1

SPRING

governor, set of two, for distributor, 398690R91

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

388593R91

SHAFT

ASSY, distributor, for distributors 372986R91, 388592R91 and 399597R91, also order springs, 362725R91 for service replacement on distributor, 372986R91

1шт.

18

371580R91

SHAFT ASSY, distributor, for distributor 388535R91

1шт.

18

401115R1

SHAFT

ASSY, distributor, for distributor 398690R91

1шт.

19

368096R1

SPRING

distributor cap

2шт.

20

353895R1

SUPPORT

distributor cap spring

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

no. 8-32 x 3/8 C-Z slt-rd-hd. mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21

369013R1

PLUG

distributor housing

1шт.

22

368054R1

THRUST WASHER

distributor thrust, lower

1шт.

23

368053R1

BUSHING

COLLAR, distributor shaft

1шт.

24

354552R1

HARDWARE

PIN, distributor gear

1шт.

25

368057R91

OIL SEAL

OIL SEAL, distributor shaft

1шт.

26

368055R1

WASHER, distributor thrust, upper

1шт.

407062R91

BREAKER

SET, points and condenser

1шт.

376556R91

PACKAGE

governor spring, for distributor 398690R91

1шт.
