Запчасти Case IH 706 (G-03) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR (06) - ELECTRICAL SYSTEMS

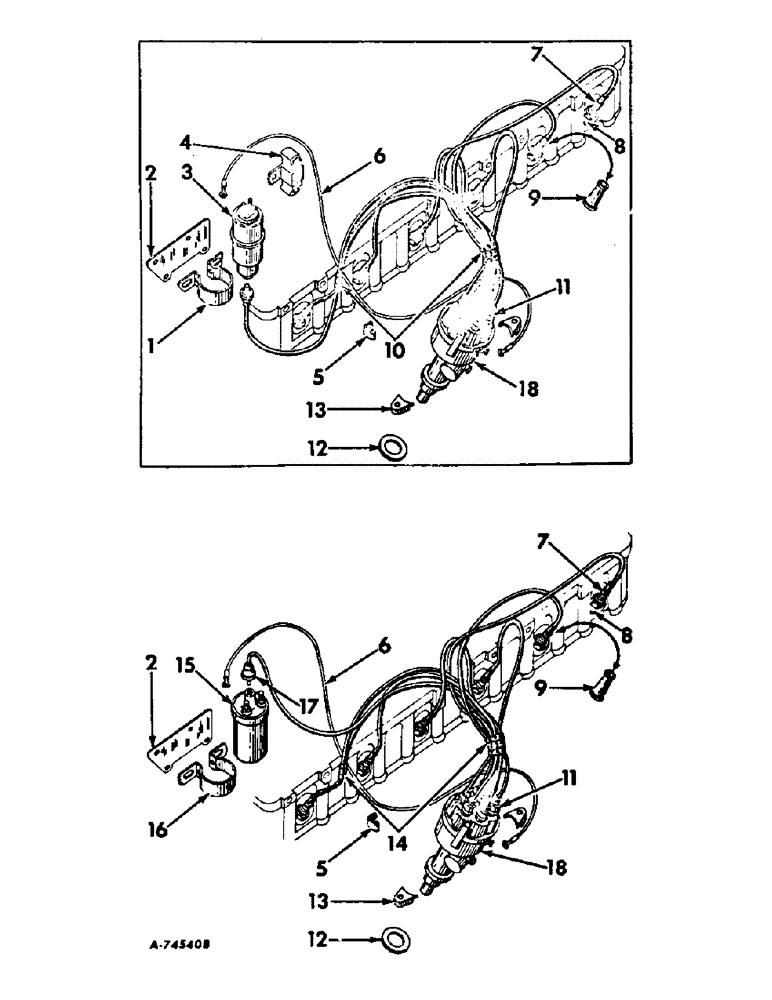

Схема запчастей Case IH 706 - (G-03) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR (06) - ELECTRICAL SYSTEMS
14
3
5
10
5
13
12
9
18
1
16
6
6
11
2
17
8
13
15
9
7
7
12
11
8
18
2
4

Артикул

Название

Примечание

Количество

1

358619R1

CLAMP, coil, serial no. 70900 & below

1шт.

120611

NUT,#10 - 32

no. 10-32 C-Z sq.

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd. cap

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no. 10-32 x 1-1/4 slt-rd-hd. mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga.

2шт.

2

370534R11

BRACKET ASSY, ignition coil

1шт.

179852

BOLT

SCREW, 7/16-14 x 1/2 hex-hd. cap

2шт.

3

368839R91

COIL

ASSY, ignition, 12R

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd. cap, serial no. 70900 & below

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

368573R91

RESISTOR

ignition coil, engine serial no. 66621 & below

1шт.

5

370535R1

CLIP

coil to distributor cable

1шт.

386871R1

WASHER, cable clip

1шт.

6

368267R91

CABLE

ASSY, coil to distributor primary

1шт.

7

396499R1

SPARK PLUG

w/gasket 37762H, light or moderate service, Champion D18Y

6шт.

7

371522R91

SPARK PLUG

w/gasket, 37762H, intermediate service, Champion D-16

6шт.

7

397149R1

SPARK PLUG

w/gasket, 37762H, intermediate service, Prestolite 1881

6шт.

7

397146R1

SPARK PLUG, w/gasket, 37762H, intermediate service, Prestolite 1881

6шт.

7

360942R91

SPARK PLUG

w/gasket, 37762H, normal service, Champion 8 com

6шт.

7

353982R91

SPARK PLUG, w/gasket, 37762H, normal service, ACC85

6шт.

7

359276R91

SPARK PLUG

w/gasket, 37762H, normal service, Auto-Lite BT8

6шт.

7

397141R1

SPARK PLUG, w/gasket, 37762H, normal service, Prestolite 1

6шт.

7

361688R91

SPARK ARRESTER

SPARK PLUG, w/gasket, 37762H, severe service, Champion D9

6шт.

7

353983R91

SPARK PLUG, w/gasket, 37762H, severe service, ACC83

6шт.

7

359275R91

SPARK PLUG, w/gasket, 37762H, severe service, Auto-Lite Bt4

6шт.

7

397144R1

SPARK PLUG, w/gasket, 37762H, severe service, PrestoLite 183

6шт.

7

361686R91

SPARK PLUG

w/gasket, 37762H, extreme severe service, Champion D6

6шт.

7

3539869

SPARK PLUG, w/gasket, 37762H, extreme severe service, ACC81

6шт.

7

359274R91

SPARK PLUG, w/gasket, 37762H, extreme severe service, AutoLite BT3

6шт.

7

397143R1

SPARK PLUG, w/gasket, 37762H, extremely severe service, PrestoLite182

6шт.

7

393759R91

SPARK PLUG

w/gasket, 37762H, LP gas, Champion D15Y

6шт.

7

397147R1

SPARK PLUG

w/gasket, 37762H, LP gas, PrestoLite 1852

6шт.

8

37762H

GASKET

spark plug

6шт.

9

371430R1

INSULATOR

spark plug terminal

6шт.

10

368270R91

CABLE

ASSY, spark plug, consists of six, serial no. 70900 & below, spark plug cables, coil to distributor cable and eight nipples, 251553R1

1шт.

11

251553R1

BOOT

NIPPLE, distributor cap terminal, 7 used w/cable, 385930R91, 8 used w/cable, 368270R91

1шт.

12

353936R2

GASKET

distributor

1шт.

13

353937R1

CLIP

CLAMP, distributor

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

LP gas engine S/N 72673 & below Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

395927R1

BOLT, 5/16-18 x 7/8 special hex-hd., LP gas engine serial no. 72674 & above

1шт.

12736D

ELECTRICAL WIRE

SEAL, distributor screw, LP gas engine serial no. 72674 & above, replaces 279673R91, use w/screw 395927R1

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

385930R91

CABLE

ASSY, spark plug, engine serial no. 70901 & above, consists of six spark plug cables, coil to distributor cable, seven nipples, 251553R1 & nipple, 372875R1

1шт.

15

395330R92

COIL

ASSY, ignition, engine serial no. 70901 & above

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

396328R1

CLAMP

ingintion coil, engine serial no. 70901 & above

1шт.

177056

HUB

SCREW 10-32 x 1-1/2 C-Z slt-rd-hd. tap

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd. cap

2шт.

95-11034

WASHER,1/4"

11/32 x 11/6 x .065

2шт.

17

372875R1

NIPPLE, LUBE

NIPPLE, coil terminal

1шт.

18

NSS

NOT SOLD SEPARAT

DISTRIBUTOR ASSY, for components, see list of part under details of distributor

1шт.

396546R91

PACKAGE

ignition coil service, serial no. 70900 & below

1шт.

396546R91

PACKAGE

ignition coil service, serial no. 70900 & below, consists of (1) coil 395330R91, (1) clamp 396328R91, (1) screw 177056, (2) washers 120217, (2) nuts 120614, (1) nipple 372875R1

1шт.

Выбрано товаров: 57
