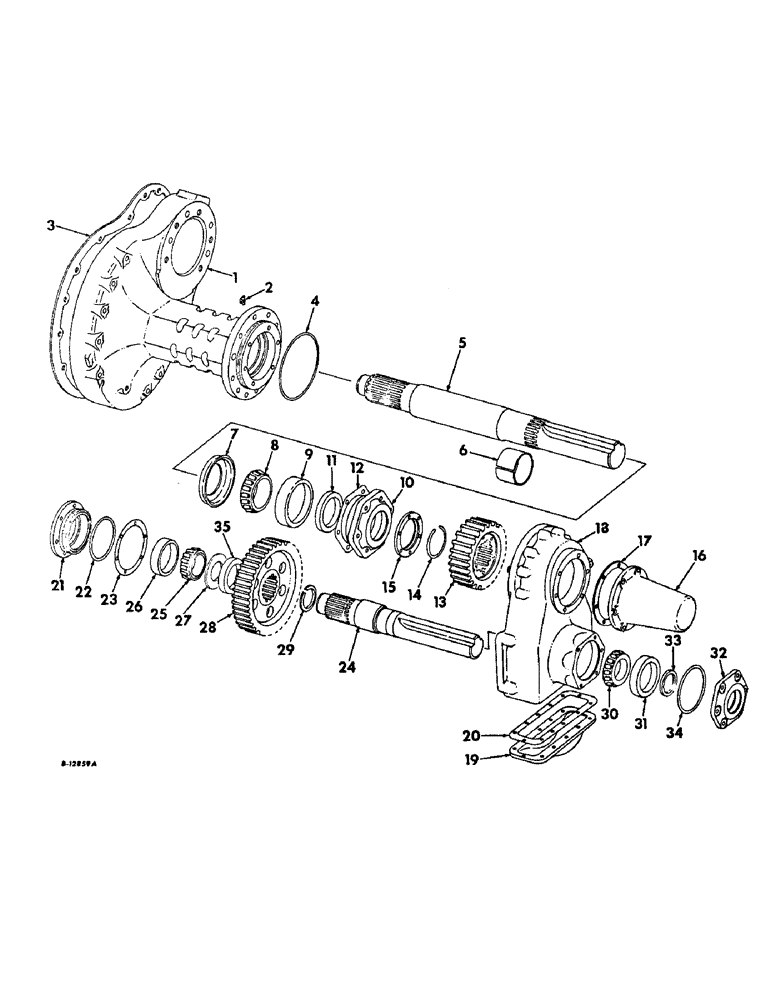

Запчасти Case IH 706 (B-33) - POWER TRAIN, FINAL DRIVE, COUNTERSHAFT AND CARRIER, TRACTORS WITH COTTON PICKER (03) - POWER TRAIN

1

382856R11

CARRIER

ASSY, rear axle housing

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 automotive sq-hd.

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 hex-hd. cap, Course Threads

20шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd. cap, Course Threads

16шт.

322593R1

BOLT

SCREW W/NYLON PELLET, 3/4-10 x 2-1/4 hex-hd. cap

22шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 x 1-1/2 x .134 ga.

2шт.

2

NLS

NO LONGER SERVICED

FITTING, 5/16 65 deg. angle drive type lub.

2шт.

3

380225R1

GASKET

rear axle housing carrier

2шт.

4

286967R1

O-RING

9-1/4 x 9-1/2 x 1/8, rear axle housing carrier

2шт.

5

383642R1

SHAFT, rear axle drive gear

2шт.

6

383645R1

GUARD, rear axle drive gear shaft spline, used when rear axle housing is removed and tractor is, Serial Range: converted-basic

2шт.

7

380154R1

RETAINER, rear axle drive gear shaft outer brg grease

2шт.

8

ST2059

BEARING ASSY

rear axle drive gear shaft outer cone

2шт.

9

11350D

BEARING

rear axle drive gear shaft outer cup

2шт.

10

383646R1

CAP, rear axle drive gear shaft outer brg

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

12шт.

11

380157R91

OIL SEAL

SEAL, rear axle drive gear shaft brg cap oil

2шт.

12

380227R1

SHIM

rear axle drive gear shaft cover brg cap, .007

1шт.

12

380228R1

SHIM

rear axle drive gear shaft outer brg cap, .012

1шт.

12

380229R1

SHIM

rear axle drive gear shaft outer brg cap, .0299

1шт.

12

380230R1

SHIM

rear axle drive gear shaft outer brg cap, .0040 or .0050

1шт.

12

385158R1

SHIM

rear axle drive gear shaft outer brg cap, .0025 or .0035

1шт.

13

383643R1

GEAR, rear axle drive, 32 T

2шт.

14

383647R1

RING, rear axle drive gear snap

2шт.

15

383649R1

RETAINER, rear axle drive gear snap ring

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

12шт.

16

383651R1

CAP, drive axle shaft

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd. cap

12шт.

17

383650R1

GASKET, drive axle shaft cap

2шт.

18

382886R11

HOUSING

ASSY, rear axle

2шт.

20029R1

PIN, 1 x 2-1/4 dowel

2шт.

103870

PLUG, 1 in. auto sq-soc-hd. pipe

2шт.

322593R1

BOLT

SCREW W/NYLON PELLET INSERT, 3/4-10 x 2-1/4 hex-hd. cap

1шт.

286967R1

O-RING

9-1/4 x 9-1/2 x 1/8

2шт.

19

382887R11

PAN, ENGINE OIL

PAN ASSY, rear axle housing

2шт.

445686

PLUG

3/8-18 auto sq-hd. pipe

2шт.

103879

PLUG, 3/8 sq-hd. pipe

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd. cap

24шт.

20

382888R1

GASKET

rear axle housing pan

2шт.

21

382889R1

CAP

rear axle inner brg

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

12шт.

22

252741R1

O-RING

5-3/4 x 6 x 1/8, rear axle inner brg cap

2шт.

23

382891R1

SHIM

rear axle inner brg, .007

1шт.

23

382892R1

SHIM

rear axle inner brg, .012

1шт.

23

382893R1

SHIM

rear axle inner brg, .0299

1шт.

23

382894R1

SHIM

rear axle inner brg, .0040-.0050

1шт.

24

382895R1

SHAFT

AXLE, rear

2шт.

25

204811R91

BEARING

ASSY, rear axle inner cone

2шт.

26

983416R1

BEARING CUP

BEARING, rear axle inner cup

2шт.

27

384304R1

SPACER

SPACER, rear axle

2шт.

28

383644R1

PINION

GEAR, rear axle driven, 52 T

2шт.

29

380220R1

SNAP RING,#362, 3.423, Ext

RING, rear axle driven gear retainer snap

2шт.

30

141377H

BEARING CONE

BEARING ASSY, rear axle outer cone

2шт.

31

11350D

BEARING

rear axle outer cup

2шт.

32

382899R1

CAP

rear axle outer brg

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

12шт.

33

378077R91

OIL SEAL

rear axle outer brg oil

2шт.

34

161067R1

RING

O-RING, 6-1/2 x 6-3/4 x 1/8, rear axle outer brg cap

2шт.

35

387037R1

SPACER

rear axle gear

2шт.

384640R91

PARTS ACCESSORY, final drive, consists of fuel strainer bowl, 58839D, gasket, 355888R2, ref nos. 13 thru 34 and attaching parts.

1шт.
