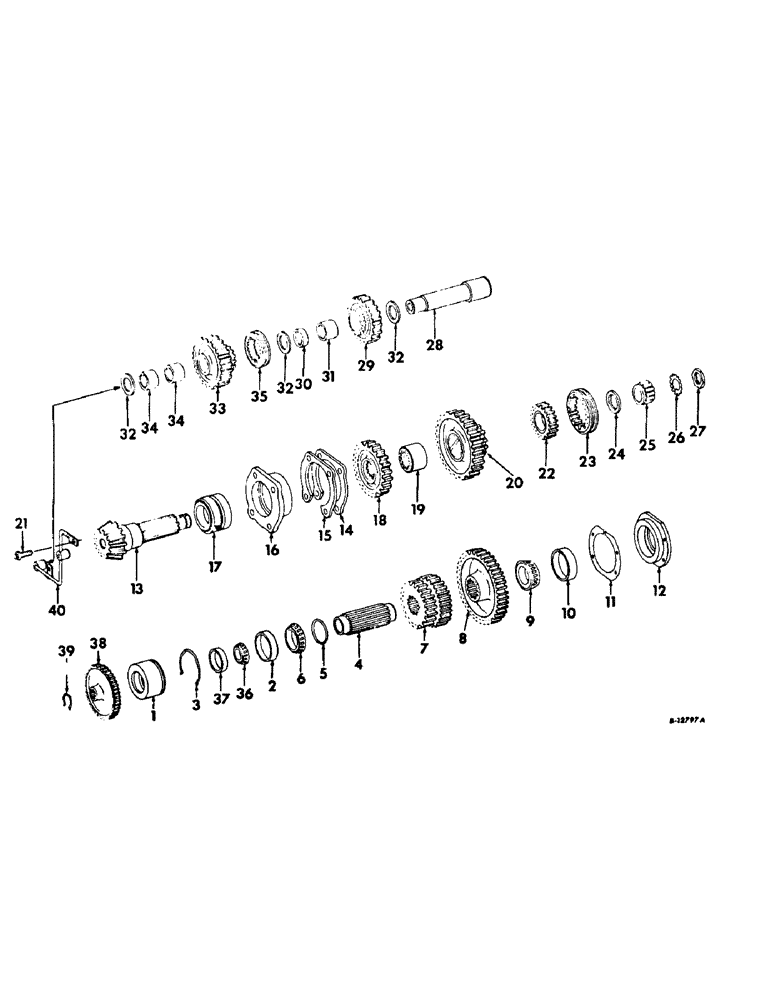

Запчасти Case IH 706 (B-07) - POWER TRAIN, RANGE TRANSMISSION, IN REAR FRAME (03) - POWER TRAIN

1

380274R11

CAGE

ASSY, countershaft rear brg

1шт.

2

ST970

BEARING SET,88.92mm OD x 16.56mm W

BEARING, countershaft rear cup

1шт.

3

384340R1

RING, SNAP

RING, brg cage rear retaining

1шт.

4

380276R1

SHAFT

COUNTERSHAFT, Farmall tractors up to serial no. 29330, International tractors up to serial no. 4623

1шт.

4

393159R1

SHAFT

COUNTERSHAFT, Farmall tractors with serial no. 29331 & above, International tractors with serial no. 4624 & above

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap

1шт.

6

ST2124

BEARING ASSY,51.59mm ID x 22.23mm W

countershaft rear cone

1шт.

7

380279R1

GEAR

lo drive, 28 T & 33 T, Farmall tractors w/serial no. 40810 and below, International tractors w/serial no. 5648 and below

1шт.

7

391883R1

GEAR WHEEL

GEAR, lo drive, 28 and 33T, Farmall tractors w/serial no. 40811 and above, International tractors w/serial no. 5649 and above

1шт.

8

380161R2

PINION

GEAR, constant mesh, 50T

1шт.

9

ST2122

BEARING ASSY,52.39mm ID x 30.16mm W

countershaft front cone, Farmall tractors up to serial no. 29330, International tractors up to serial no. 4623

1шт.

9

ST2124

BEARING ASSY,51.59mm ID x 22.23mm W

countershaft front cone, Farmall tractors with serial no. 29331 & above, International tractors with serial no. 4624 & above

1шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

BEARING, countershaft front cup, Farmall tractors up to serial no. 29330, International tractors up to serial no. 4623

1шт.

10

ST970

BEARING SET,88.92mm OD x 16.56mm W

BEARING, countershaft front cup, Farmall tractors with serial no. 29331 & above, International tractors with serial no. 4624 & above

1шт.

11

380280R1

SHIM

countershaft brg (or as required)

2шт.

12

380281R1

CAGE

countershaft front brg, Farmall tractors up to serial no. 29330, International tractors up to serial no. 4623

1шт.

12

393160R1

CAGE, countershaft front brg, Farmall tractors with serial no. 29331 & above, International tractors with serial no. 4624 & above

1шт.

NLS

NO LONGER SERVICED

4шт.

13

380355R1

SHAFT

transmission main and drive bevel pinion, 13T

1шт.

13

380160R1

GEAR

SHAFT, transmission main & drive bevel pinion, 16 T, Farmall hi-clear tractors

1шт.

14

380283R2

SHIM

main shaft brg -.004

1шт.

15

380284R2

SHIM

main shaft brg -.007 (or as required)

2шт.

16

380285R1

CAGE

main shaft brg

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

main shaft brg cage

2шт.

17

ST2126

TAPERED BEARING,2.5" ID x 4.4375" OD x 1.1875"

BEARING, main shaft rear

1шт.

18

380288R1

GEAR

reverse driven, 35T

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

380290R21

PINION

GEAR W/BUSHING ASSY, hi-lo driven, Farmall tractors w/serial no. 40810 and below, International tractors w/serial no. 5648 and and below

1шт.

20

391896R21

GEAR

W/BUSHING ASSY, hi-lo driven, Farmall tractors w/serial no. 40811 and above, International tractors w/serial no. 5649 and above

1шт.

21

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket

2шт.

396323R1

WASHER

17/32 x 7/8 x 16 ga.

1шт.

22

393522R1

GEAR

CARRIER, shift collar, will work for 380292R2

1шт.

23

393521R1

COLLAR

hi-lo shift, will work for 380293R1

1шт.

24

380294R1

SPACER

main shaft

1шт.

24

384338R1

SPACER, main shaft, Farmall hi-clear tractors

1шт.

25

380295R91

BEARING, ROLLER, CYL,40mm ID x 69.58mm OD x 30.16mm W

main shaft front

1шт.

25

336050R91

BEARING

main shaft front, Farmall hi-clear tractors, order 380295R91 and one 380294R1

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R1

NUT

main shaft

1шт.

28

380296R11

SHAFT

ASSY, reverse idler

1шт.

29

393523R1

GEAR

reverse idler, 30T, will work for 380299R1

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

32

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

3шт.

33

393525R1

GEAR

reverse drive, 34T, will work for 380301R1

1шт.

34

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, drive gear

2шт.

35

393524R1

COLLAR

forward-reverse shift, will work for 380302R1

1шт.

36

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

independent power take-off drive shaft cone

1шт.

37

ST991

BEARING CUP

BEARING, independent power take-off driven shaft cup

1шт.

38

380319R1

PINION

GEAR, pump drive

1шт.

39

384341R1

RING, SNAP

RING, pump drive gear retaining

1шт.

40

380162R91

TUBE

ASSY, pressure lub

1шт.

372703R4

FLUID

hy-tran, quart can

1шт.

372704R4

TRANSMISSION OIL

FLUID, hy-tran, gallon can

1шт.

372705R4

FLUID

hy-tran, five gallon can

1шт.

407024R4

FLUID

hy-tran, fifteen gallon can

1шт.
