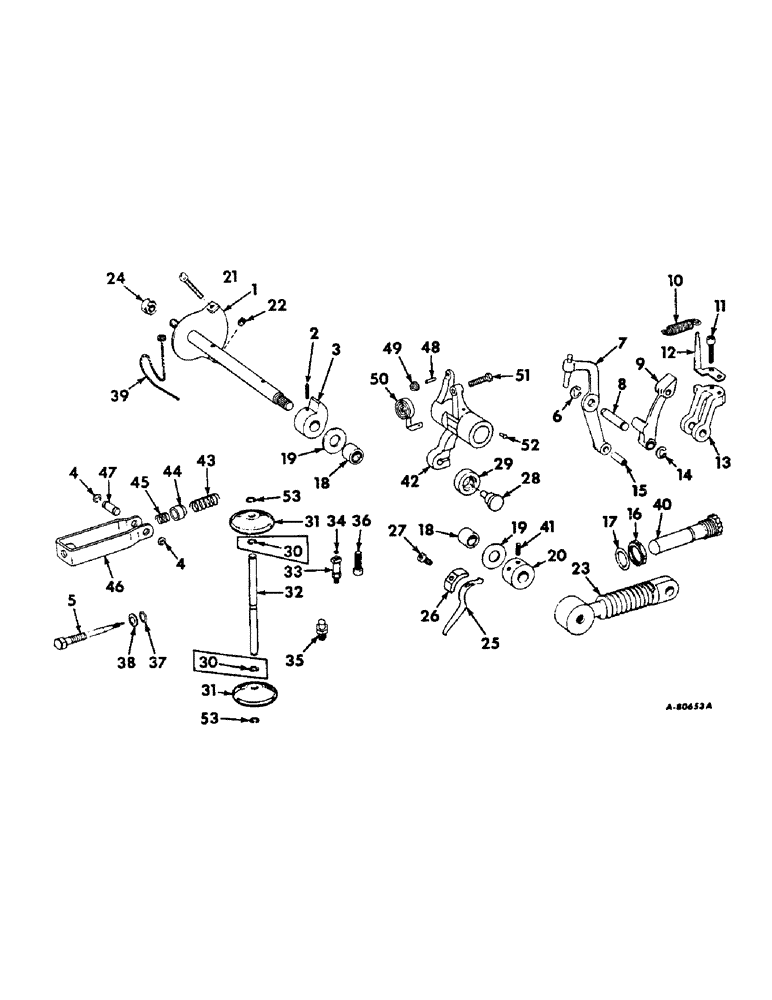

Запчасти Case IH 706 (E-38) - FUEL SYSTEM, INTERNATIONAL R.D. FUEL INJECTION PUMP, GOVERNOR, D-282 DIESEL ENGINES (02) - FUEL SYSTEM

1

601113C12

SHAFT ASSY, control

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

1шт.

2

20683R1

SCREW, no. 10-32 x 1/4 hex-soc-hd. set

1шт.

3

310016R2

CAM, control shaft

1шт.

4

606912C1

O-RING, governor spring yoke pin

2шт.

5

345304R2

SCREW, governor spring arm yoke guide

1шт.

6

606913C1

RING, governor spring arm bracket pin

1шт.

7

601200C11

LEVER W/PIN, 20686R1, shut-off

1шт.

8

601201C1

PIN, governor spring arm bracket

1шт.

9

341332R1

ARM, governor spring

1шт.

10

320065R1

SPRING, shut-off lever

1шт.

11

20680R1

SCREW, no. 8-32 x 5/8 hex-soc-hd. cap

2шт.

12

320066R1

BRACKET, shut-off lever spring

1шт.

13

310033R1

BRACKET, governor spring arm

1шт.

14

606911C1

RING, bracket pin thrust

1шт.

15

20686R1

PIN, 3/16 x 5/8 roll

1шт.

16

310036R1

NUT, load adjusting screw

1шт.

17

310137R1

O-RING

SEAL, load adjusting screw

1шт.

18

309209R91

NEEDLE BEARING

ASSY, governor arm

2шт.

19

310009R1

WASHER

control shaft

2шт.

20

341328R1

SPACER, excess fuel spring

1шт.

21

601348C1

SCREW, stop plate

1шт.

115998

NUT,#8-32

NUT, , Stop plate screw lock #8-32

1шт.

22

20682R1

SCREW, no. 8-32 x 3/8 hex-soc-hd.

1шт.

23

601115C11

LEVER ASSY, control

1шт.

24

25-114

NUT,1/4"-28, G5

control shaft

1шт.

25

345308R1

VALVE SPRING

SPRING, excess fuel

1шт.

26

341329R1

CLAMP, excess fuel spring

1шт.

27

20677R1

SCREW, no. 8-32 x 1/4 hex-soc-hd. cap, excess fuel spring clamp

1шт.

28

320060R1

PIN, governor arm roller

1шт.

29

320061R1

ROLLER

governor arm

1шт.

30

606910C1

SNAP RING,#25, Ext, Crescent

RING, snap, , governor weight, used only with shaft, 310025R1 #25, Ext, Crescent

2шт.

31

310024R2

WEIGHT, governor

2шт.

32

310025R1

SHAFT, governor weight, four grooves on shaft for snap rings

1шт.

32

607237C1

SHAFT, governor weight, two grooves on end of shaft for snap rings

1шт.

33

332372R91

PIN W/RING, 606909C1, governor timing

1шт.

34

606909C1

RING, governor cup timing pin snap

1шт.

35

NSS

NOT SOLD SEPARAT

(Not used)

1шт.

36

20678R1

SCREW, no. 8-32 x 1/2 hex-soc-hd. cap, governor arm

1шт.

37

310135R1

SEAL

O-RING, governor spring screw

1шт.

38

395-31022

WASHER,#10

governor spring screw

1шт.

39

279673R91

WASHER

WIRE, seal

1шт.

40

349149R1

SCREW, fuel load adjusting

1шт.

41

20681R1

SCREW, 8-32 x 1/4 hex-soc-hd. set

1шт.

42

601105C11

ARM, governor, composed of Ref. nos. 18 & 48 thru 52

1шт.

43

601214C1

SPRING, governor

1шт.

44

601111C1

SEAT, governor spring

1шт.

45

601112C1

SPRING, idle

1шт.

46

601109C11

YOKE ASSY, governor spring arm

1шт.

47

601202C1

PIN, governor spring arm

1шт.

48

20685R1

PIN, spring slotted

1шт.

49

601106C1

SEAT, governor arm spring

1шт.

50

601107C1

SPRING, temperature compension

1шт.

51

601108C1

SCREW, governor arm

1шт.

52

109371

STUD, drive

1шт.

53

610379C1

RING, weight shaft snap

2шт.
