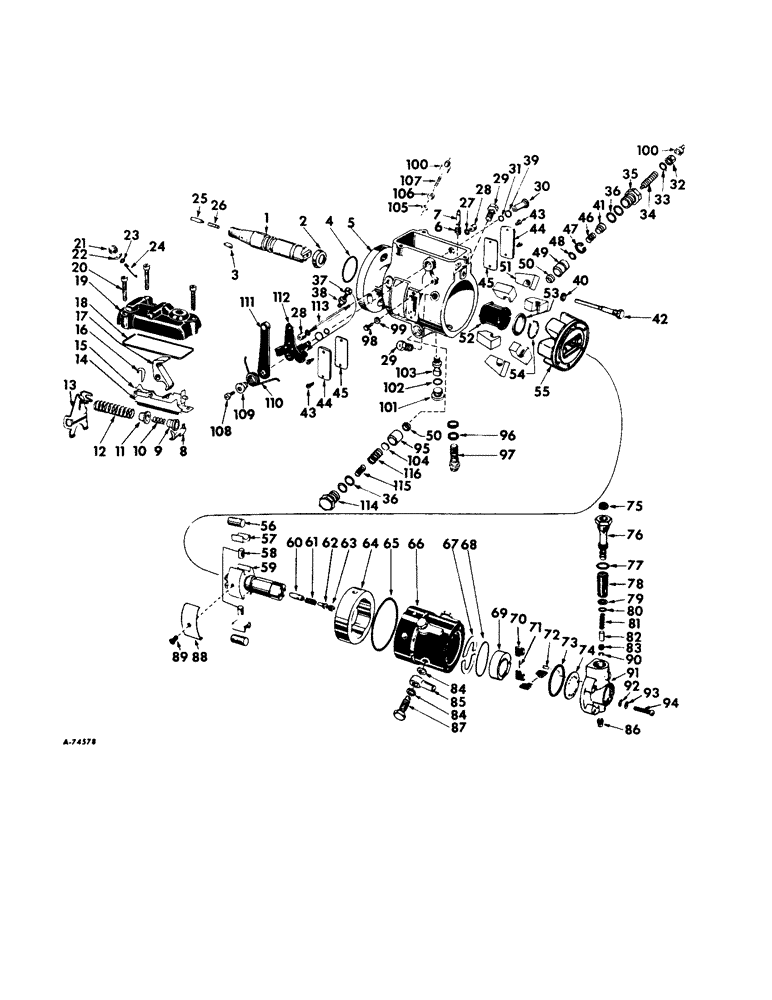

Запчасти Case IH 706 (E-26) - FUEL SYSTEM, FUEL INJECTION PUMP, ROOSA MASTER, D-282 DIESEL ENGINES (02) - FUEL SYSTEM

347886R91

PUMP

ASSY, injection

1шт.

1

304715R1

SHAFT

drive

1шт.

2

313288R1

SEAL

drive shaft oil

2шт.

3

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

4

304720R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL, pilot tube oil

1шт.

5

324187R91

HOUSING

ASSY, pump

1шт.

6

304746R1

VALVE SPRING

SPRING, metering valve

1шт.

7

313683R1

VALVE

metering

1шт.

313286R1

WASHER

SHIM, metering

1шт.

8

324188R91

ARM

ASSY, metering valve

1шт.

9

368015R1

RETAINER, idling spring

1шт.

10

304810R1

SPRING

governor idling

1шт.

11

367998R1

GUIDE

idling spring

1шт.

12

367999R1

VALVE SPRING

SPRING, governor control

1шт.

13

321367R1

ARM

governor

1шт.

14

367995R1

VALVE SPRING

SPRING, governor linkage

1шт.

15

313241R91

HOOK ASSY, governor linkage

1шт.

313242R1

SCREW, linkage hood adjusting

1шт.

313240R1

WASHER, hood adjusting screw

1шт.

16

368023R1

CAM

fuel shut-off shaft stop

1шт.

17

304794R1

LEVER

throttle shaft

1шт.

18

368012R1

SEAL

control cover

1шт.

19

304744R1

COVER ASSY

COVER, governor control

1шт.

20

319674R1

SCREW

cover hold-down

3шт.

319676R1

WASHER

cover screw

3шт.

115545

LOCK WASHER,Int Tooth, #10

WASHER, cover screw lock

3шт.

21

368009R1

NUT

low idle adjusting screw

1шт.

22

304728R1

WASHER

low idle adjusting screw

1шт.

23

304729R1

SEAL

low idle adjusting screw

1шт.

24

304788R1

SET SCREW

low idle adjusting

1шт.

25

304716R1

KNOB

BUTTON, thrust

1шт.

26

304717R1

VALVE SPRING

SPRING, thrust button

1шт.

27

304721R1

SEAL

pivot shaft

2шт.

28

368018R1

NUT

pivot shaft retaining

2шт.

29

319839R1

SCREW, head locking

2шт.

30

306954R1

SHAFT, shut-off

1шт.

31

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL, throttle shaft

2шт.

32

312313R1

NUT, advance adjusting screw lock

1шт.

33

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL, advance adjusting screw

1шт.

34

319691R1

CAPSCREW,1/4" x 1.385"

SCREW, advance adjusting

1шт.

35

319693R1

PLUG

piston holf power

1шт.

36

319687R1

WIPER SEAL

advance piston hole plug

4шт.

37

304789R1

ADJUSTMENT SCREW

high idle adjusting

1шт.

38

307818R1

LOCK NUT

NUT, high idle adjusting

1шт.

39

319744R1

WASHER

throttle shaft seal

2шт.

40

368014R1

WASHER

guide stud

1шт.

41

319692R1

GUIDE

advance adjusting spring

1шт.

42

313677R1

STUD

governor idling spring

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

cover

4шт.

44

304740R1

COVER ASSY

COVER, timing line

2шт.

45

367979R1

GASKET

cover

2шт.

46

319683R1

SPRING

advance trimmer

1шт.

47

346659R1

RING, SNAP

RING, advance piston power

1шт.

48

3467261

SEAL, piston ring

1шт.

49

3472501

PISTON, power

1шт.

50

368035R1

WASHER

advance slide

2шт.

51

319669R1

WEIGHT

governor

6шт.

52

321369R1

ARM

SLEEVE, governor thrust

1шт.

53

368342R1

THRUST WASHER

governor sleeve thrust

1шт.

54

368345R1

SNAP RING

RING, governor cage retaining

1шт.

55

324369R91

RETAINER

ASSY, governor weight

1шт.

56

368805R1

ROLLER

plunger cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE, cam roller

2шт.

58

317898R1

PLUNGER, rotor, for rotors marked with letter A

2шт.

58

317897R1

PLUNGER, rotor, for rotors marked with letter B

2шт.

58

317896R1

PLUNGER, rotor, for rotors marked with letter C

2шт.

58

317895R1

PLUNGER, rotor, for rotors marked with letter D

2шт.

59

NSS

NOT SOLD SEPARAT

(Not furnished separately)

1шт.

60

304804R1

VALVE

distributor rotor delivery

1шт.

61

304807R1

SPRING

distributor rotor delivery valve

1шт.

62

317900R1

STOP

distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW, delivery valve retaining

1шт.

64

613560C1

RING

cam

1шт.

65

368337R1

SEALING RING

SEAL, hydraulic head

1шт.

66

304719R91

ROTOR

HEAD AND ROTOR ASSY, hydraulic, composed of (2) plunger 317895R1, (2) retainer 304800R1, (1) ring 304801R1, (1) screw 317901R1, (1) spring 304807R1, (1) stop 317900R1, (1) valve 304804R1

1шт.

67

304800R1

WASHER

RETAINER, distributor rotor

2шт.

68

304801R1

RING

distributor rotor retainer

1шт.

69

304745R1

GUIDE

LINER, transfer pump

1шт.

70

346728R1

BLADE

transfer pump

4шт.

71

346724R1

SPRING

transfer pump blade

2шт.

72

368812R1

DOWEL

PIN, end plate roll

1шт.

73

367982R1

O-RING,0.154" Width

transfer pump

1шт.

74

346725R1

PLATE ASSY.

PLATE, thrust

1шт.

75

346705R91

PLUG

ASSY, end plate adjusting

1шт.

76

346711R1

SLEEVE

end plate

1шт.

77

368030R1

RING

O-RING, end plate sleeve

1шт.

78

346708R1

FILTER

ELEMENT, filter

1шт.

79

346709R1

SEAL

SEAL, element

1шт.

80

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, End plate sleeve

1шт.

81

346707R1

VALVE SPRING

SPRING, regulating

1шт.

82

367988R1

PLUNGER

PISTON, regulating

1шт.

83

346706R1

SEAL, regulating piston

1шт.

84

367984R1

SEALING WASHER

WASHER, fuel line connector screw

12шт.

85

NSS

NOT SOLD SEPARAT

CONNECTOR, injector pipe, furnished as part of injection pipe

1шт.

86

346712R1

PLUG

end plate pipe

1шт.

87

367983R1

CAPSCREW,Hex, 3/8" - 24 x 1.055", Drilled

SCREW, fuel line connector

6шт.

88

304797R1

VALVE SPRING

SPRING, leaf

1шт.

89

368806R1

SCREW, leaf spring adjusting

1шт.

90

346731R1

RING

retaining

1шт.

91

346704R1

PLATE ASSY.

PLATE, end

1шт.

92

319676R1

WASHER

end plate screw

4шт.

93

115545

LOCK WASHER,Int Tooth, #10

WASHER, end plate screw lock

4шт.

94

304790R1

SCREW

end plate

4шт.

95

319686R1

PISTON ASSY

PISTON, spring

1шт.

96

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Head locating screw

2шт.

97

346648R91

SCREW

head locating

1шт.

98

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, torque screw hole plug

1шт.

99

324791R1

SEAL ASSY.

WASHER, torque screw hole plug

1шт.

100

313287R1

COVER ASSY

CAP, torque & advance adj screw

2шт.

101

319688R1

PLUG

advance screw hole

1шт.

102

319689R1

WIPER SEAL

advance screw hole plug

1шт.

103

319680R1

SCREW

cam advance

1шт.

104

368575R1

SHIM

advance spring, .004-.006

1шт.

104

372617R1

SHIM, advance spring, .0155-.0175

1шт.

104

372618R1

SHIM

advance spring, .032-.034

1шт.

105

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL, torque screw

1шт.

106

321313R1

NUT

torque screw

1шт.

107

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW, torque

1шт.

108

217921

SCREW, throttle lever spring

1шт.

109

304743R1

RETAINER

throttle lever spring

1шт.

110

304739R1

VALVE SPRING

SPRING, throttle lever

1шт.

111

304738R91

LEVER

ASSY, throttle

1шт.

112

304749R91

SHAFT

ASSY, throttle

1шт.

113

368016R1

SHAFT

governor arm pivot

1шт.

114

319684R1

PLUG, piston hole spring

1шт.

115

347252R1

SPRING

inner advance

1шт.

116

347251R1

SPRING, outer advance

1шт.

347784R91

GASKET KIT

PACKAGE, fuel injection pump overhaul gasket

1шт.

12736D

ELECTRICAL WIRE

WIRE, lead pump & sealing

6шт.

279673R91

WASHER

WIRE, torque screw cap seal

1шт.
