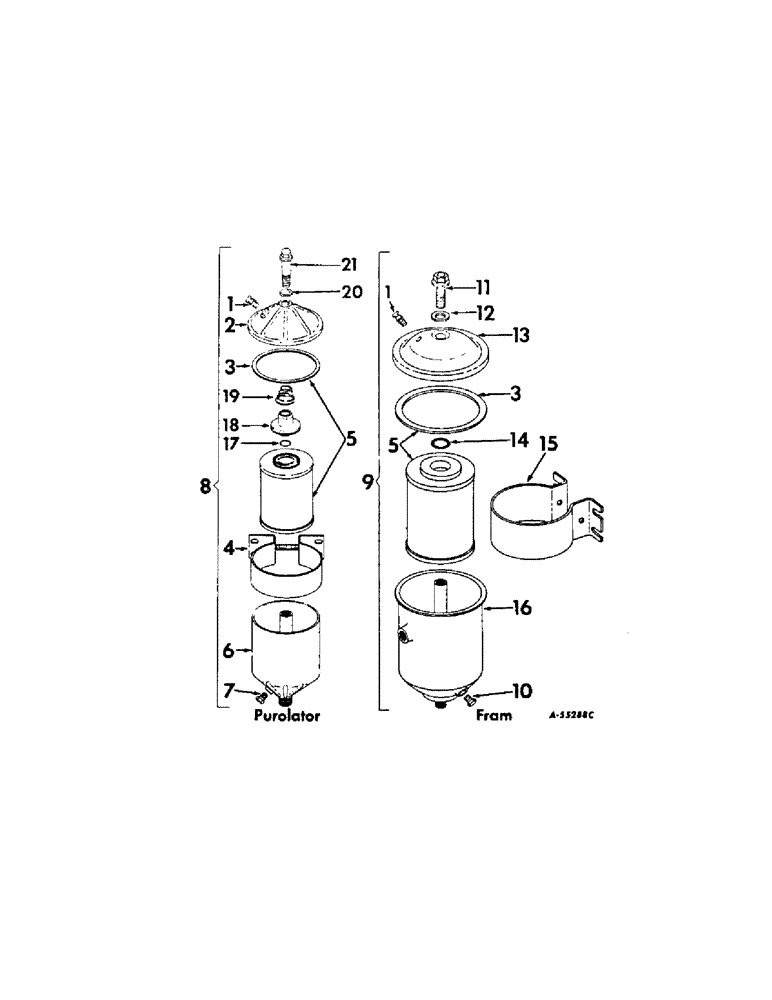

Запчасти Case IH 706 (E-18[A]) - FUEL SYSTEM, FUEL FILTER D-282 DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

39677DA

VALVE

BLEEDER, filter, D-282 Diesel engine tractors

2шт.

2

343669R91

COVER

ASSY, filter, includes Ref. nos. 17 thru 21, D-282 Diesel engine tractors

1шт.

2

321720R91

END ASSY.

COVER & BUSHING ASSY, filter, D-282 Diesel engine tractors

1шт.

3

304102R1

GASKET

element cover, D-282 Diesel engine tractors

1шт.

4

304104R91

HOLDER

BRACKET ASSY, filter, D-282 Diesel engine tractors

1шт.

5

304101R91

FILTER, ELEMENT

ELEMENT ASSY, final fuel filter, D-282 Diesel engine tractors

1шт.

5

306353R91

ELEMENT

ASSY, primary fuel filter, cotton, D-282 Diesel engine tractors

1шт.

5

610309C91

ELEMENT

ASSY, primary fuel filter water separator, special, D-282 Diesel engine tractors

1шт.

6

304100R91

BODY

CASE ASSY, filter, D-282 Diesel engine tractors

1шт.

7

258995R1

PLUG

filter drain, D-282 Diesel engine tractors

1шт.

8

347066R91

HOSE ASSY.

FILTER ASSY, final fuel, Purolator, less Ref. no. 4, D-282 Diesel engine tractors

1шт.

8

610932C91

FILTER CARTRIDGE

FILTER ASSY, primary fuel, Purolator, less Ref. no. 4, will work for 601507C91, optional with 610933C91, D-282 Diesel engine tractors

1шт.

9

610933C91

FILTER

ASSY, primary fuel, Fram, less Ref. no. 15, will work for 601508C91, optional with 610932C91, D-282 Diesel engine tractors

1шт.

10

610383C1

PLUG

filter drain, D-282 Diesel engine tractors

1шт.

11

368492R1

SCREW, filter vent cap, D-282 Diesel engine tractors

1шт.

12

368493R1

GASKET

filter vent cap screw, D-282 Diesel engine tractors

1шт.

13

603941C91

COVER ASSY, filter, D-282 Diesel engine tractors

1шт.

14

306777R1

O-RING

O-RING, filter body, D-282 Diesel engine tractors

1шт.

15

306780R1

STRAP, filter bracket, D-282 Diesel engine tractors

1шт.

120372

NUT

1/4-20 C-Z sq., D-282 Diesel engine tractors

1шт.

133086

SCREW, 1/4-10 x 3 slt-rd-hd. mach, D-282 Diesel engine tractors

1шт.

131200

WASHER

1/4 phosphate coated light lock, D-282 Diesel engine tractors

1шт.

16

NSS

NOT SOLD SEPARAT

CASE ASSY, filter, not serviced separately, order filter, 610933C91, D-282 Diesel engine tractors

1шт.

17

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32, gasket retainer, D-282 Diesel engine tractors

1шт.

18

321722R91

RETAINER

ASSY, gasket, D-282 Diesel engine tractors

1шт.

19

321721R1

VALVE SPRING

SPRING, D-282 Diesel engine tractors

1шт.

20

368334R1

GASKET

screw retaining, D-282 Diesel engine tractors

1шт.

21

321727R1

CAPSCREW,3/8" - 24 x 1 11/16"

SCREW, cover retaining, D-282 Diesel engine tractors

1шт.

603945C1

NUT

speed, flat type, D-282 Diesel engine tractors

1шт.

134519

VALVE

COCK, 1/8 type B drain, used with primary fuel filter water separator element, D-282 Diesel engine tractors

1шт.
