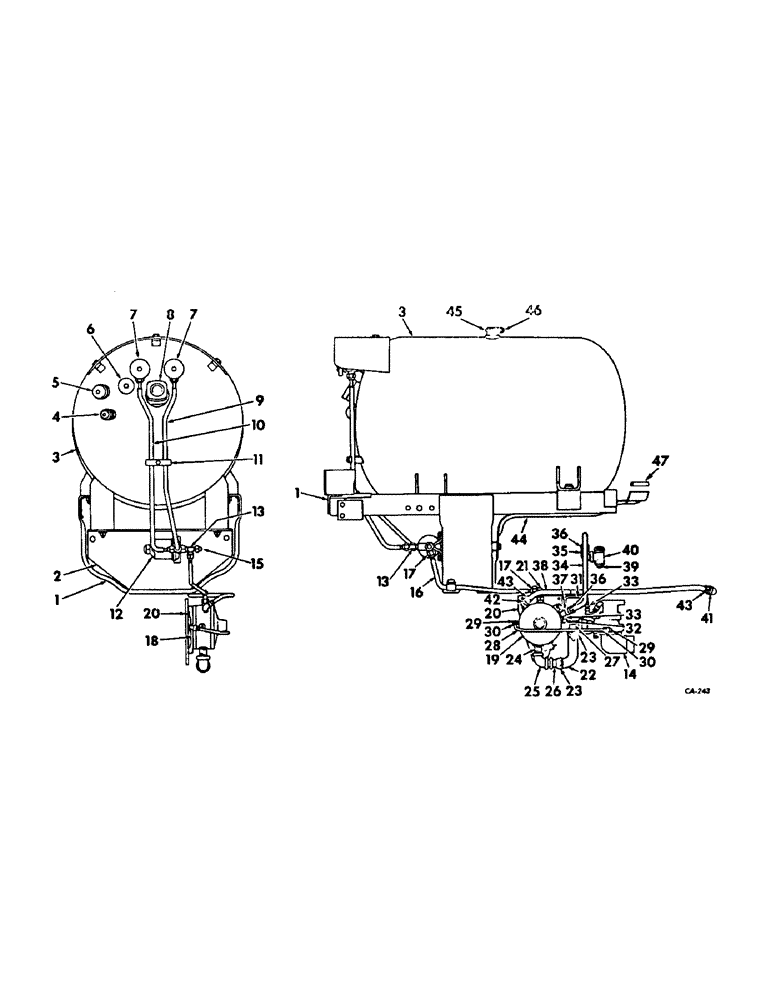

Запчасти Case IH 706 (E-13) - FUEL SYSTEM, FUEL TANK, SUPPORTS AND PIPING, LP GAS ENGINE TRACTORS (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
380340R92
SUPPORT ASSY, fuel tank
1шт.
131-883
SPRING NUT,Rtnr, 5/16" - 18
5/16-18 floating cage, used with .543-.548 square holes
2шт.
389117R91
NUT
5/16-18 floating cage, used with .582-.587 square holes
2шт.
413-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5
SCREW, 1/2-13 x 1-1/8 hex-hd. cap
4шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
446229
WASHER,1/2" x 1 1/4" x .109"
9/16 x 1-1/4 x .019
4шт.
2
383805R1
BRACE, fuel tank rear support
1шт.
NLS
NO LONGER SERVICED
2шт.
3
380440R91
TANK ASSY, fuel, composed of (1) cap 363692R1, (1) gauge 363693R91, (1) gauge 364830R91, (1) valve 109567R91, (2) valve 400678R91, (1) valve 363688R91, (1) valve 363690R91
1шт.
144420H
LOCK NUT,7/16"-20, GC
NUT, 7/16-20 C-Z elastic stop
4шт.
80298R1
BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8
SCREW, 7/16-20 x 1-1/2 hex-hd. cap
4шт.
369324R1
WASHER, .472 x .88 x .18
8шт.
4
109567R91
VALVE ASSY, vapor return, for components see list of parts under details of valves
1шт.
5
363688R91
VALVE ASSY, 3/4 NPT filler, for components see list of parts under details of valves
1шт.
6
363693R91
GAUGE W/PLATE, 369049R1 ring, 369050R1 and stem assy, 369048R91, fixed liquid level, Bastian Blasting Co, optional with 376514R91
1шт.
6
376514R91
GAUGE W/DIAL, 376524R1 ring, 369050R1 and stem assy, 369048R91, fixed liquid level, Fisher Governor, optional with 363693R91
1шт.
7
400678R91
VALVE ASSY, service, for components see list of parts under details of valves, replaces 109850R91
1шт.
8
364830R91
GAUGE W/CHAMBER, 369381R91 and gasket 364263R1, liquid level magnetic, Rochester, optional with 364596R91
1шт.
225593
SCREW, 5/16-24 x 7/8 C-Z fil-hd. cap, Rochester
4шт.
8
364596R91
GAUGE W/GASKET, 364263R1, liquid level magnetic, Taylor, optional with 364830R91
1шт.
225594
SCREW
5/16-24 x 1 C-Z fil-hd. cap, Taylor
4шт.
8
369381R91
CHAMBER ASSY, dial, Rochester, not illustrated
1шт.
164314
SCREW, no. 6-32 x 1/4 C-Z pan-hd. cr-rec tapping
2шт.
8
364263R1
GASKET, liquid level gauge, not illustrated
1шт.
9
380331R11
LINE ASSY, filter to liquid valve fuel
1шт.
10
380333R11
LINE ASSY, filter to vapor valve fuel
1шт.
11
380334R1
CLAMP, fuel line
1шт.
179797
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1шт.
12
346818R91
FILTER ASSY, fuel, for components see list of parts under details of fuel filter
1шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
2шт.
13
364598R1
TEE, 2 way right angle flared tube
2шт.
14
383371R92
CARBURETOR ASSY, 1-1/2 updraft, for components see list of parts under details of carburetor
1шт.
103026
NUT,3/8"-24, G5
2шт.
15
357495R1
CAP, fuel line tee
1шт.
16
380328R11
LINE ASSY, regulator to filter fuel, Farmall tractors w/serial no. 31208 and below, International tractors w/serial no. 4996 and below
1шт.
16
NSS
NOT SOLD SEPARAT
TUBE ASSY, regulator to fuel filter, Farmall tractors w/serial no. 31209 and above, International tractors w/serial no. 4997 and above
1шт.
Use 18.0 in. of 3/8 OD copper tubing from 50 ft rolls marked, 995063R1, 13.5 in. of insulating loom from 100 ft roll marked, 995074R1, and two nuts, 357078R1
1шт.
17
357078R1
NUT, fuel line tee cap
2шт.
18
86224H
SPACER,1/4" Pipe x 3/8"
Fuel regulator 1/4" Pipe x 3/8"
2шт.
19
371100R91
REGULATOR ASSY, fuel, C-263 engines serial no. 66123 and above, C-291 engines serial no. 501 and above, for components, see list of parts under details of LP gas fuel regulator
1шт.
179819
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5
1шт.
179822
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
1шт.
20
392732R11
BRACKET ASSY, fuel regulator mounting
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
1шт.
179819
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5
2шт.
21
109563R1
ELBOW
90 deg. flared tube, at regulator
1шт.
22
371102R1
HOSE
fuel line
1шт.
23
274086R91
HOSE CLAMP,0.94/1.63 Type F Worm
CLAMP, fuel line hose
2шт.
24
191363
NIPPLE, 3/4 x 1-3/4 pipe
1шт.
25
192651
ELBOW, 3/4 x 1-2 90 deg reducing pipe
1шт.
26
188902R1
NIPPLE, fuel hose, regulator
1шт.
27
188897R1
ELBOW, fuel hose, carburetor end
1шт.
28
NSS
NOT SOLD SEPARAT
TUBE, fuel regulator to carburetor balance, use 18 inches of 5/16 OD copper tubing from 50 ft. roll marked 995062R1 and 2 nuts, 19985R1
1шт.
29
24847H
ELBOW,90 Degree x 1/8" NPT x 1/2"-20
1/2-20 hi duty tube fitting male pipe
2шт.
30
19985R1
TUBE NUT,1/2"-20
NUT, 1/2-20 hi duty tube fitting
2шт.
31
NSS
NOT SOLD SEPARAT
TUBE, fuel regulator to carburetor idle, use 11 inches of 3/8 OD copper tubing from 50 ft roll marked 995060R1 and 2 nuts 19983R1 (NSS)
1шт.
32
32468H
ELBOW,90 Degree x 1/8" NPT x 3/8"-24
3/8-24 hi-duty tube fitting male pipe
1шт.
33
19983R1
NUT, 3/8-24 hi-duty fitting
2шт.
34
NSS
NOT SOLD SEPARAT
TUBE, fuel regulator to cylinder hd, use 25 inches of 1/2 OD copper tubing from 50 ft. roll marked 995064R1 and 2 nuts, 19987R1, water
1шт.
35
68134D
ELBOW, 1/16-16 hi-duty tube fitting male pipe 90º x 1/2" NPT x 11/16"-16
2шт.
36
19987R1
NUT
11/16-16 hi-duty tube
2шт.
37
58986D
ELBOW, 11/16 -16 45 deg. hi-duty tube fitting male pipe 45º x 3/8" NPT x 11/16"-16
1шт.
38
NSS
NOT SOLD SEPARAT
TUBE, fuel regulator to water pump, use 38 inches of 1/2 OD copper tubing from 50 ft. roll marked 995064R1 and 2 nuts, 19987R1
1шт.
39
144610
PIPE
NIPPLE, 1/2 x 1-3/8 close pipe
1шт.
40
138105
TEE,1/2" NPT, Fem
1/2 pipe
1шт.
41
386063R1
ELBOW, 45 deg., regulator to pump water line, pump end
1шт.
42
40876D
ELBOW, 11/16-16 hi-duty tube fitting male pipe 90º x 3/8" NPT x 11/16"-16
1шт.
43
222-506
TUBE NUT,11/16"-16
NUT, 11/16-16 hi-duty tube (replaced 19987R1)
2шт.
44
378681R11
SHIELD ASSY, lower heat
1шт.
179812
GEAR
SCREW, 5/16-18 x 1/2 hex-hd. cap
6шт.
45
376512R91
VALVE, relief, optional with 363690R91
1шт.
45
363690R91
VALVE, relief, optional with 376512R91
1шт.
46
363692R1
CAP, relief valve, used with valve 363690R91
1шт.
46
376513R1
CAP, relief valve, used with valve 376512R91
1шт.
47
392910R1
BUMPER
heat shield
1шт.
Выбрано товаров: 80
