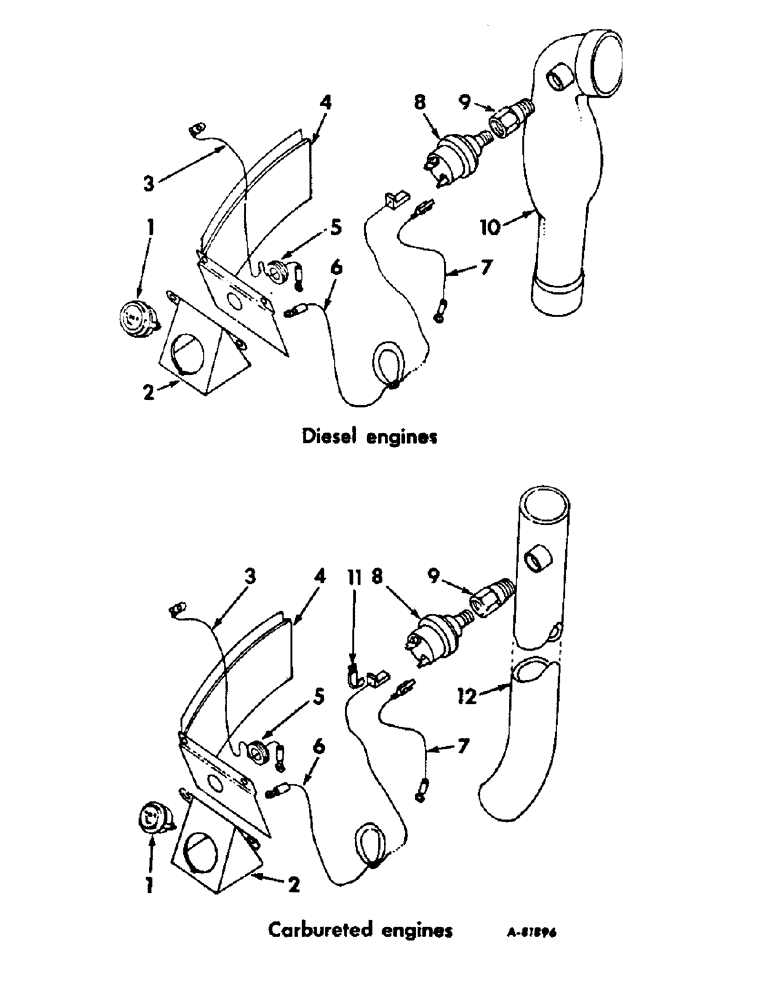

Запчасти Case IH 706 (E-08) - FUEL SYSTEM, ELECTRIC AIR CLEANER INDICATOR (02) - FUEL SYSTEM

390852R92

PARTS ACCESSORY, electric air cleaner indicator, diesel engine tractors, Farmall tractors w/serial no. 37236 & below, International tractors w/serial no. 5273 & below

1шт.

390853R91

PARTS ACCESSORY, electric air cleaner indicator, carbureted engine tractors, Farmall tractors w/serial no. 37236 & below, International tractors w/serial no. 5273 & below

1шт.

396559R91

PARTS ACCESSORY, electric air cleaner indicator, diesel engine tractors, Farmall tractors w/serial 37237 & above, International tractors w/serial no. 5274 & above

1шт.

396560R91

PARTS ACCESSORY, electric air cleaner indicator, carbureted engine tractors, Farmall tractors w/serial 37237 & above, International tractors w/serial no. 5274 & above

1шт.

1

389871R91

GAUGE

INDICATOR ASSY, electric air cleaner

1шт.

2

392408R1

HOUSING

electric air cleaner indicator

1шт.

3

389911R91

CABLE ASSY, push button switch to electric air cleaner indicator, will work for 390840R1

1шт.

4

389907R1

HOUSING, steering support lower LH

1шт.

5

117959

GROMMET,5/16" ID x .719" x .062"

rubber electric air cleaner indicator cables

1шт.

6

405214R1

CABLE ASSY, electric air cleaner indicator to vacuum switch, will work for 389982R91

1шт.

7

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, will work for 377120R92

1шт.

8

389682R91

SWITCH

electric air cleaner vacuum

1шт.

9

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

10

389912R3

INTAKE AIR HOSE

Air Cleaner Outlet, Farmall tractors w/serial no. 37236 & below, International tractors w/serial no. 5273 & below

1шт.

10

396563R1

TUBE

ASSY, air cleaner outlet, not illustrated, Farmall tractors w/serial 37237 & above, International tractors w/serial no. 5274 & above

1шт.

11

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

12

389909R21

PIPE ASSY, air cleaner to carburetor, Farmall tractors w/serial no. 37236 & below, International tractors w/serial no. 5273 & below

1шт.

12

396561R1

PIPE ASSY, air cleaner to carburetor, Farmall tractors w/serial 37237 above, International tractors w/serial no. 5274 & above

1шт.

366460R1

CABLE CLIP

CLIP, cable

3шт.
