Запчасти Case IH 706 (E-06) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS (02) - FUEL SYSTEM

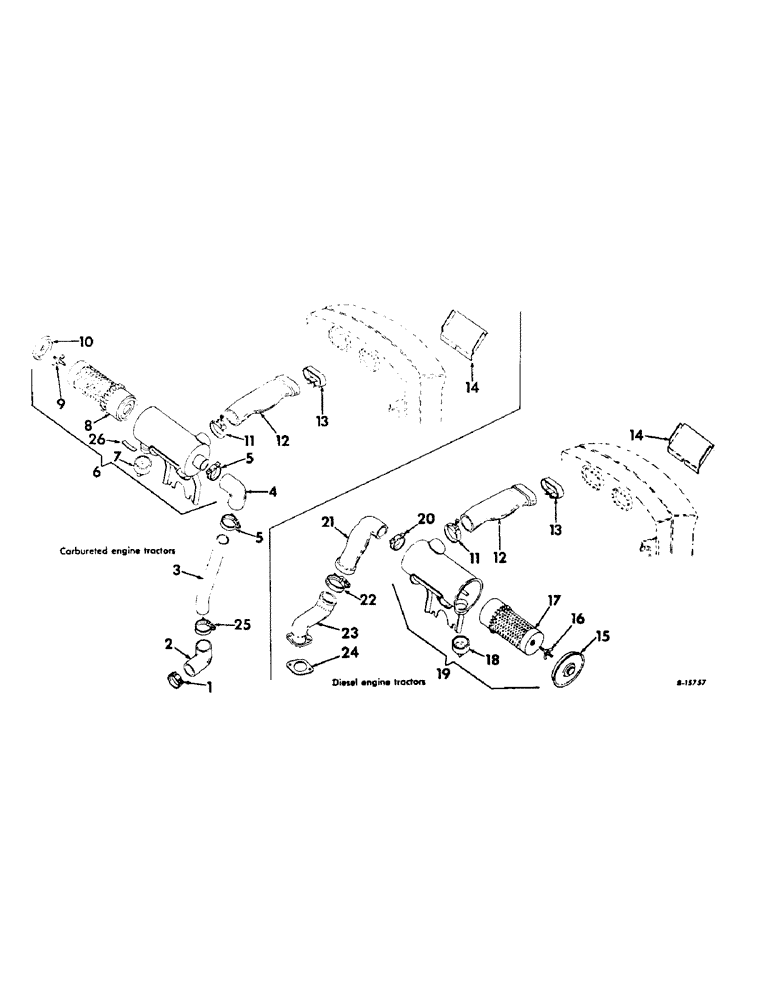

Схема запчастей Case IH 706 - (E-06) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS (02) - FUEL SYSTEM
11
24
19
10
2
18
9
4
7
21
6
26
3
11
6
23
12
14
12
14
13
8
25
5
13
22
17
15
20
16

Артикул

Название

Примечание

Количество

1

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, air cleaner pipe hose, carburetor end

1шт.

2

300664R1

HOSE ASSY.

HOSE, air cleaner pipe lower, see note A

1шт.

2

382400R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID, SAE 20R4, Class SC

Air Cleaner Pipe Lower, See note B 2.25" ID, 2.50" ID, SAE 20R4, Class SC

1шт.

3

380036R1

PIPE, air cleaner to carburetor, order pipe, 385023R2, hose 306190R1, hose, 382400R1 and four clamps, 274088R91, see note A

1шт.

3

385023R2

PIPE, air cleaner to carburetor, see note B

1шт.

4

275362R1

ELBOW

HOSE, air cleaner pipe upper, see note A

1шт.

4

306190R1

HOSE ASSY.

HOSE, air cleaner pipe upper, see note B

1шт.

5

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, upper hose

2шт.

6

380745R94

CLEANER ASSY, air, screw, 3/8-16 x 1/2 hex-hd. cap

4шт.

7

383734R2

VALVE

dust

1шт.

8

384812R93

AIR CLEANER

ELEMENT ASSY

1шт.

9

385925R91

NUT

and GASKET ASSY

1шт.

10

384828R91

COVER

ASSY

1шт.

11

357870R91

CLAMP

intake hose rear

1шт.

12

380035R2

INTAKE AIR HOSE,2.16" ID, 3.00" ID x 11.20"

Air Cleaner 2.16" ID, 3.00" ID x 11.20"

1шт.

13

380600R91

FASTENER

CLAMP, intake hose front

1шт.

14

383786R2

DEFLECTOR, air intake

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

15

384828R91

COVER

ASSY

1шт.

16

385925R91

NUT

AND GASKET ASSY

1шт.

17

383731R93

AIR CLEANER,Round, 2.62" ID x 5.25" OD x 14" L

Filter, Primary

1шт.

18

383734R2

VALVE

dust

1шт.

19

380746R93

CLEANER ASSY, air

1шт.

20

274089R91

CLAMP

outlet hose to air cleaner

1шт.

21

380039R4

INTAKE AIR HOSE,3.00" ID, 3.40" ID

Air Cleaner Outlet 3.00" ID, 3.40" ID

1шт.

22

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

CLAMP, outlet hose to elbow

1шт.

23

380040R1

ELBOW, air intake manifold

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd. cap

2шт.

24

369497R2

GASKET

air intake manifold elbow

1шт.

25

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, lower hose upper

1шт.

26

387067R1

SPRING

dust unloader

1шт.

Выбрано товаров: 32
