Запчасти Case IH 706 (D-29) - DIESEL ENGINES, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE

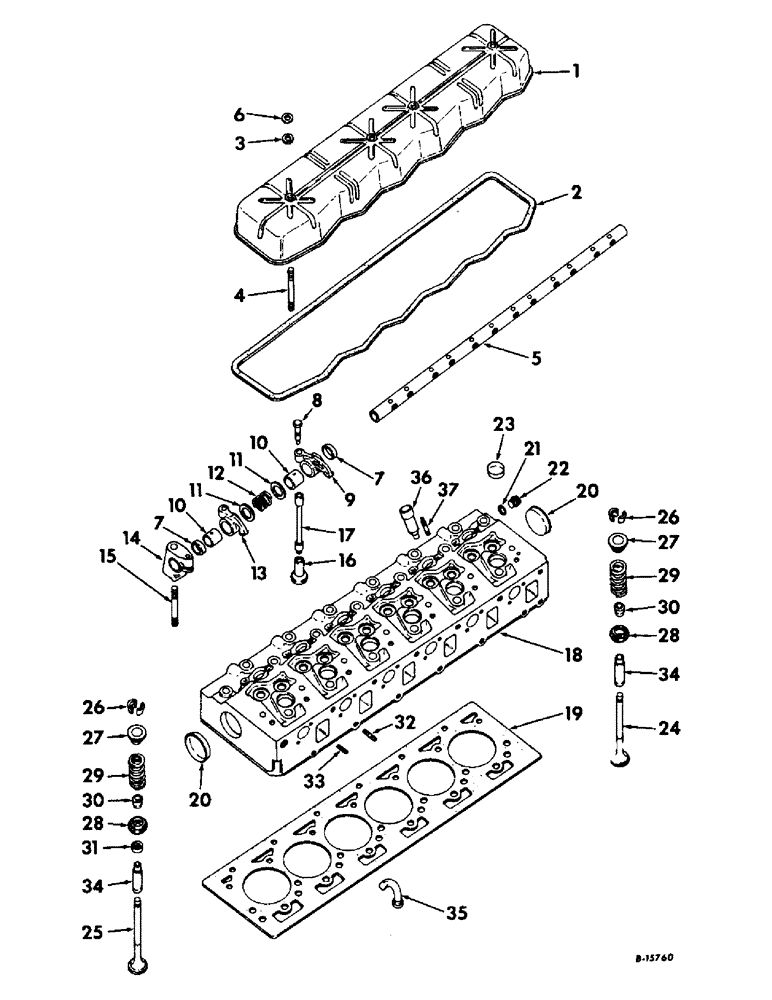

Схема запчастей Case IH 706 - (D-29) - DIESEL ENGINES, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE
26
30
2
28
37
10
20
18
8
34
1
29
5
17
24
13
26
31
6
32
28
7
12
36
25
3
10
20
19
30
27
27
15
22
34
21
11
33
7
35
23
29
16
11
9
4
14

Артикул

Название

Примечание

Количество

1

3132840R91

COVER

valve housing, will work for 3055182R1

1шт.

179830

4шт.

2

3055186R1

GASKET

valve housing cover

1шт.

3

3055578R2

RING

valve housing cover packing

4шт.

4

3132764R1

ADAPTER

valve hsg cover, replaces 3055223R1

4шт.

5

3055071R21

SHAFT

W/TWO PLUG, 933565R1, rocker arm

1шт.

933565R1

PLUG,M14, Conical

expansion

2шт.

6

3055579R1

WASHER

valve housing cover

4шт.

7

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

distance

11шт.

8

3132137R1

ADJUSTMENT SCREW

Rocker arm, Replaces 3055076R1

12шт.

3132138R1

NUT

rocker arm adjusting

12шт.

9

3055072R21

ROCKER ARM

ARM W/BUSHING, 3132019R1 intake rocker, on orders for 3055072R91, furnish package 3132292R91

6шт.

10

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

rocker arm assy., replaces 3055074R2

12шт.

11

3055669R1

THRUST WASHER

rocker arm thrust

12шт.

12

3055075R1

SPRING

rocker arm

6шт.

13

3055073R21

ROCKER ARM

ARM W/BUSHING, 3132019R1 exhaust rocker, on orders for 3055073R12, furnish package 3132293R91

6шт.

14

3055077R4

BRACKET

rocker arm shaft

7шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

7шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

15

3055220R1

STUD,1/2" - 20 x 3.18"

rocker arm shaft bracket

7шт.

16

3055052R1

TAPPET

valve

12шт.

17

3055053R91

ROD

valve push

12шт.

18

3059458R93

HEAD

W/VALVES, cylinder, composed of (12) cone 3055057R91, (12) cap 3055058R1, (1) head 3055655R91, (12) rotocap 3055059R91, (12) seal 3055187R91, (12) spring 3055060R1, (6) valve 3055055R1, (6) valve 3059459R1

1шт.

18

3055655R92

CYLINDER HEAD

HEAD ASSY, cylinder

1шт.

19

313286R1

WASHER

GASKET, cyl hd., optional w/3132285R1, will work for 3055063R1

1шт.

19

3132285R1

GASKET

cyl hd., optional w/3132286R1, will work for 3055640R1

1шт.

20

933574R1

PLUG,M50, Conical

expansion 50 mm

2шт.

21

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing M10 x 13.5 x 1

1шт.

22

933127R1

PLUG

crankcase

1шт.

23

933750R1

PLUG,M32, Conical

expansion 32 mm, will work for 933573R1

6шт.

24

3055055R1

VALVE

intake

6шт.

25

3059459R1

STD EXHAUST VALVE

VALVE, exhaust

6шт.

26

3055057R91

ROCKER ARM COTTER

CONE ASSY, spring lock valve

12шт.

27

3055058R2

SPRING CUP

CAP, valve spring retainer

12шт.

28

3055059R91

CAP

ROTOCAP

12шт.

29

3055060R1

SPRING

valve

12шт.

30

3055187R91

SEAL

valve stem

12шт.

31

3132361R1

INSERT

exhaust valve seat, .016 O/S

6шт.

31

3132362R1

VALVE SEAT

INSERT, exhaust valve seat, .004 O/S, replaces 3055219R1

6шт.

32

3055663R1

STUD

exhaust pipe

12шт.

33

3055221R1

STUD

water collecting pipe

12шт.

34

3055022R1

GUIDE

valve stem

12шт.

35

3055224R11

CINTRE

PIPE ASSY, cooling

6шт.

36

3055344R1

SLEEVE

INSERT, nozzle holder

6шт.

3055227R1

NUT

cylinder head

26шт.

37

3055412R1

STUD

nozzle holder

12шт.

3055369R1

PLATE

SHACKLE, engine mounting RH

1шт.

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

SCREW, 3/4-10 x 1-1/8 hex-hd. cap

1шт.

3055370R1

STIRRUP

SHACKLE, engine mounting, front

1шт.

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

SCREW, 3/4-10 x 1-1/8 hex-hd. cap

1шт.

3132292R91

ROCKER

PACKAGE, intake rocker arm, composed of (1) arm 3055072R1, (2) bushing 3132019R1, (2) nut 3132138R1, (2) stud 3132137R1

1шт.

3132293R91

ARM ASSY.

PACKAGE, exhaust rocker arm, composed of (1) arm 3055073R1, (2) bushing 3132019R1, (2) nut 3132138R1, (2) stud 3132137R1

1шт.

Выбрано товаров: 53
