Запчасти Case IH 706 (D-21) - DIESEL ENGINES, CRANKCASE AND RELATED PARTS (01) - ENGINE

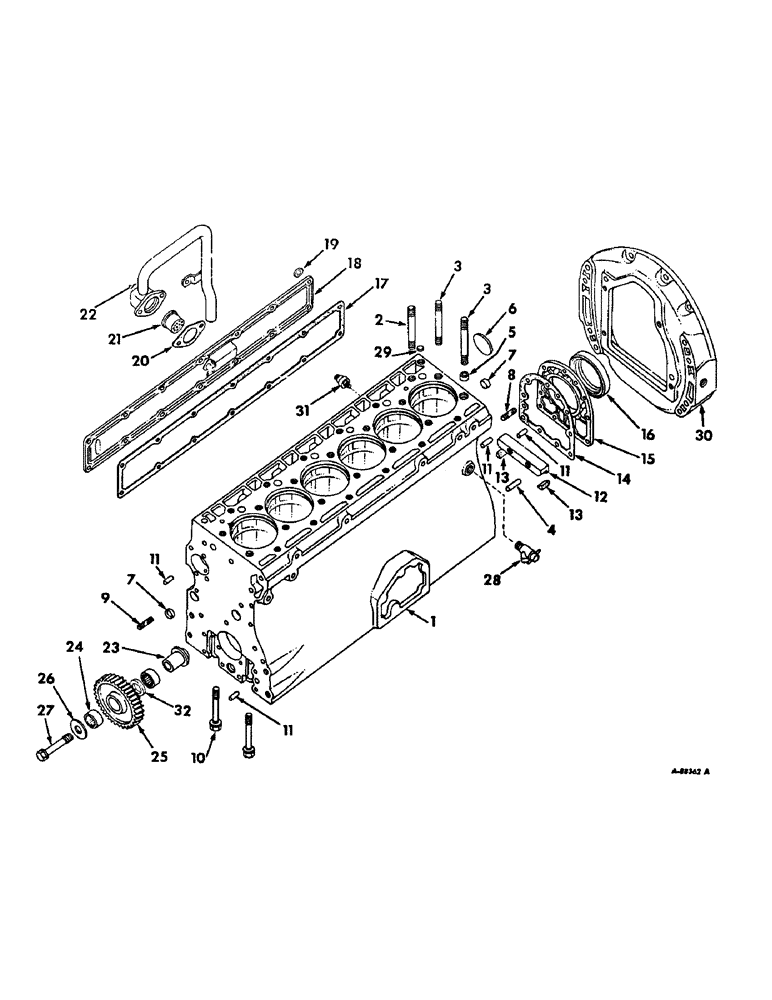

Схема запчастей Case IH 706 - (D-21) - DIESEL ENGINES, CRANKCASE AND RELATED PARTS (01) - ENGINE
7
24
25
17
32
19
12
11
14
7
27
31
9
29
10
5
6
3
22
15
11
20
23
18
11
1
2
11
3
16
21
13
30
4
8
28
26
13

Артикул

Название

Примечание

Количество

1

3132724R92

CRANKCASE

ASSY, replaces 3055991R91

1шт.

2

3055066R1

STUD

cyl head, used w/crankcase 3055991R91

1шт.

3

3055018R1

STUD

cyl head, used w/crankcase 3055991R91

14шт.

3055227R1

NUT

cylinder head

1шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

5

3055007R1

BUSHING

dowel

2шт.

6

172602

SUPPORT

expansion

1шт.

7

933537R1

PLUG,M25, Conical

COVER, closing 25 mm

2шт.

8

3055270R1

STUD

rear

1шт.

9

3055989R1

STUD

water pump carrier

1шт.

10

3055666R1

BOLT,Crankshaft Bearing 9/16" - 12 x 4 3/4"

SCREW, crankshaft brg cap, replaces 3055011R1

14шт.

11

141242

DOWEL

PIN, dowel

4шт.

12

3055214R1

SUPPORT

STRIP, crankcase sealing

1шт.

13

714868R1

SEALING STRIP

sealing

2шт.

14

3055215R1

GASKET

crankshaft seal retainer

1шт.

15

3055216R1

RETAINER

crankcase rear oil seal

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

933570R1

WASHER

DISK, spring

9шт.

16

3055310R91

SEAL

crankshaft rear oil

1шт.

17

3055392R1

GASKET

side cover

1шт.

18

3055730R11

COVER

ASSY, crankcase side

1шт.

179814

SPACER

12шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd. cap

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

19

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

8.5 x 19 x 2.5 mm

15шт.

20

3055359R1

GASKET

breather

1шт.

21

3055324R91

ELEMENT

ASSY, breather filter

1шт.

22

3055993R11

BREATHER

ASSY

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

933625R1

LOCK WASHER

RING, packing 8 x 11.5

2шт.

23

3055373R1

CARRIER

idler gear

1шт.

24

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

RETAINER, needle brg, on orders for 3057301R91, furnish two retainer 3055816R91 and ring 787656R1

2шт.

25

3055043R3

PINION

GEAR ASSY, idler, on orders for 3055043R21 furnish gear 3055043R3, two retainers 3058816R91 and ring 787656R1

1шт.

787585R1

PLUG

SCREW, locking

1шт.

26

3055372R1

DISC

RING, idler gear anti-wear

1шт.

27

3055374R1

BOLT

idler gear carrier

1шт.

28

3055248R91

VALVE

COCK, radiator drain

1шт.

29

933536R1

PLUG,M10, Conical

COVER, closing 10 mm

1шт.

30

3055976R2

CASE

HOUSING, flywheel

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd. cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

31

392249R92

SWITCH

engine oil pressure

1шт.

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

ADAPTER, 1/4-1/8 reducing pipe

1шт.

32

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING, distance

1шт.

Выбрано товаров: 46
