Запчасти Case IH 706 (D-12) - DIESEL ENGINES, INTAKE MANIFOLD AND EXHAUST SYSTEM (01) - ENGINE

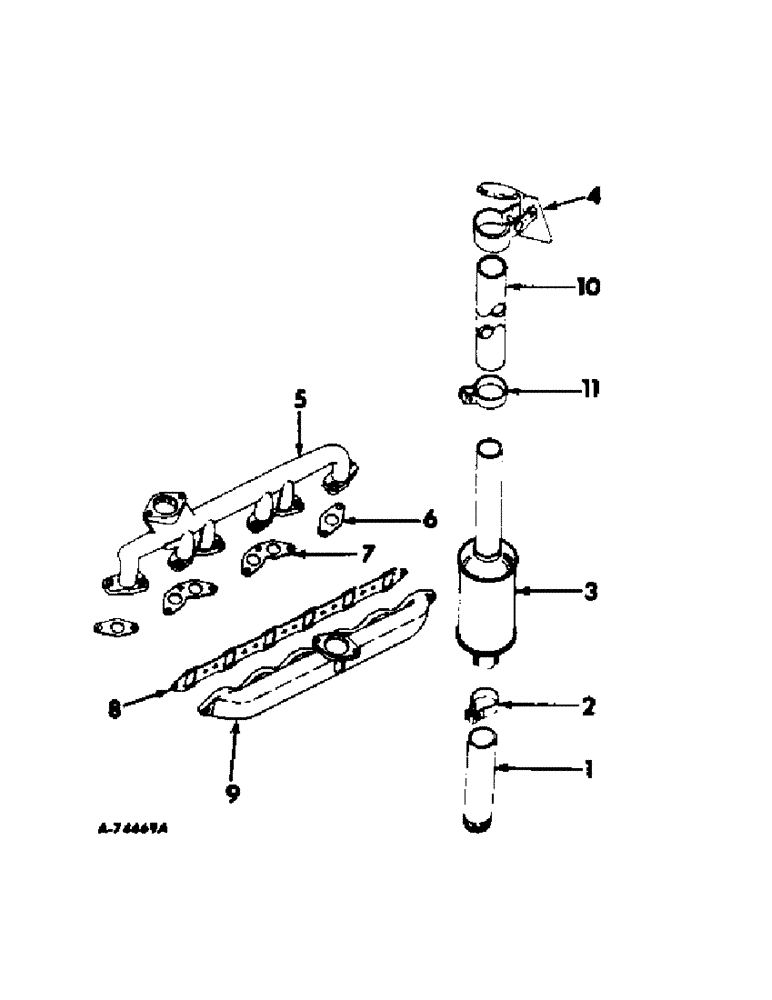

Схема запчастей Case IH 706 - (D-12) - DIESEL ENGINES, INTAKE MANIFOLD AND EXHAUST SYSTEM (01) - ENGINE
9
7
3
8
5
6
4
11
10
1
2

Артикул

Название

Примечание

Количество

1

370643R2

PIPE

exhaust

1шт.

2

350602R1

CLAMP

exhaust muffler

1шт.

102635

NUT,3/8"-16, G5

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd. cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

384346R92

MUFFLER

exhaust

1шт.

4

321574R91

PLUG

CAP ASSY, exhaust

1шт.

4

321977R91

PLUG

CAP ASSY, exhaust, tractors with cab

1шт.

5

278643R2

PIPE

MANIFOLD, exhaust

1шт.

39524DA

NUT

exhaust manifold stud

10шт.

113934H

WASHER

exhaust manifold stud

10шт.

6

278313R2

GASKET

exhaust manifold-end

2шт.

7

278314R1

MANIFOLD GASKET

exhaust manifold-center

2шт.

8

305804R1

MANIFOLD GASKET

intake manifold

1шт.

9

332110R11

MANIFOLD

ASSY, intake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd. cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

10

391155R1

EXTENSION, exhaust muffler, tractors with cab

1шт.

11

112030H

CLAMP, exhaust muffler extension, tractors with cab

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/81-6 x 1-1/2 hex-hd. mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 22
