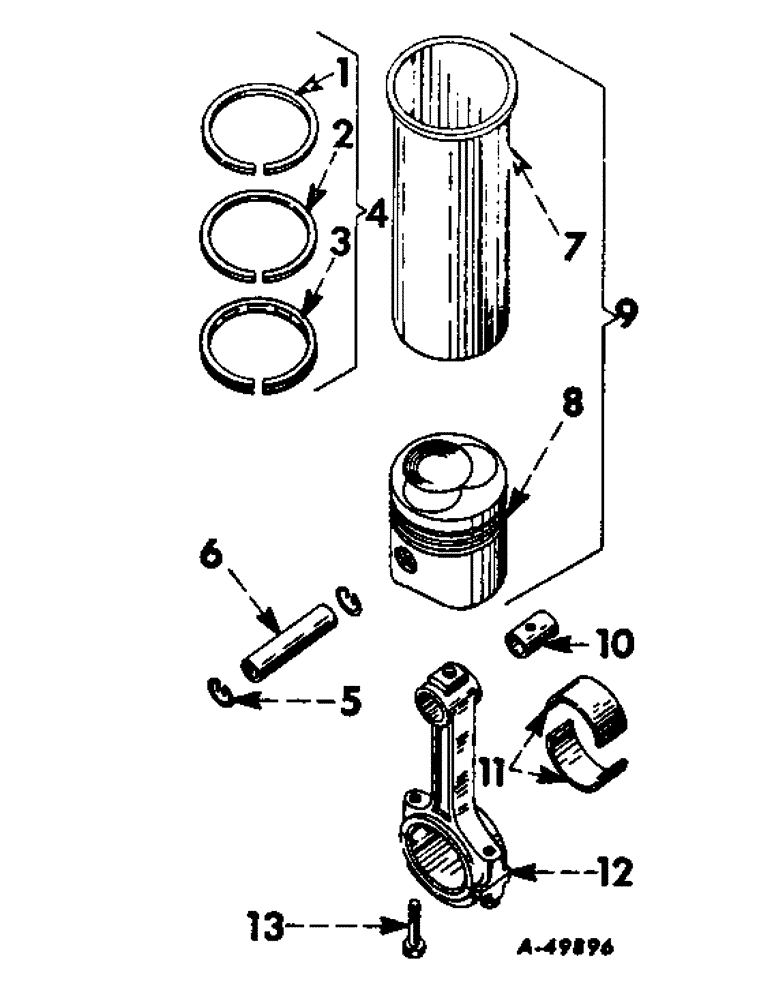

Запчасти Case IH 706 (D-08) - DIESEL ENGINES, CONNECTING RODS AND SLEEVE SETS, ENGINE SERIAL NO. 71778 AND ABOVE (01) - ENGINE

1

615288C1

RING, compression piston, top or first groove

6шт.

2

615289C1

RING

compression piston, second groove

6шт.

3

278329R1

RING, oil piston, third or bottom groove

6шт.

4

609336C91

PACKAGE

RING SET, piston, consists of twelve compression ring and six oil regulating rings

1шт.

5

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, , piston pin 1.125", Int, #112

12шт.

6

332436R1

PIN,28.57mm OD x 17.48mm L

RING, piston, std.

6шт.

6

332437R1

PIN, piston, .005 O/S

6шт.

7

320017R91

PACKAGE

CYLINDER SLEEVE PKG, consists of sleeve, 278272R1, shim, 320000R1 and two shims, 320018R1

6шт.

7

609026C11

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, S1 marking

6шт.

7

609027C11

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, S2 marking

6шт.

7

609028C11

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, S3 marking

6шт.

8

318377R2

PISTON

SS marking

6шт.

9

612006C91

PISTON ASSY

PISTON W/SLEEVE ASSY, cylinder, S1 marking, composed of (1) pin 332436R1, (1) piston 318377R2, (2) ring 388835R1, (1) ring 615288C1, (1) ring 615289C1, (1) ring 278329R1, (1) sleeve assy 609026C11

6шт.

9

612007C91

PISTON

W/SLEEVE ASSY, cylinder, S2 marking, composed of (1) pin 332436R1, (1) piston 318377R2, (2) ring 388835R1, (1) ring 615288C1, (1) ring 615289C1, (1) ring 278329C1, (1) sleeve assy 609027C11

6шт.

9

612008C91

PISTON

W/ SLEEVE ASSY, cylinder, S3 marking, composed of (1) pin 332436R1, (1) piston 318377R2, (2) ring 388835R1, (1) ring 615288C1, (1) ring 615289C1, (1) ring 278329R1, (1) sleeve assy 609028C11

6шт.

10

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std.

6шт.

11

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

11

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

11

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

11

367630R91

BEARING SET, connecting rod, std., consists of six bearings, 367408R11

1шт.

12

306280R12

ROD, CONNECTING

ROD W/TWO BOLTS, 316366R1 and bushing, 306708R1, connecting

6шт.

12

735237C91

REMAN-CONNECTING ROD

Remanufactured CONNECTING ROD

6шт.

12

1928147C1

CORE-ROD CONNECTING

Return No, CONNECTING ROD

6шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.
