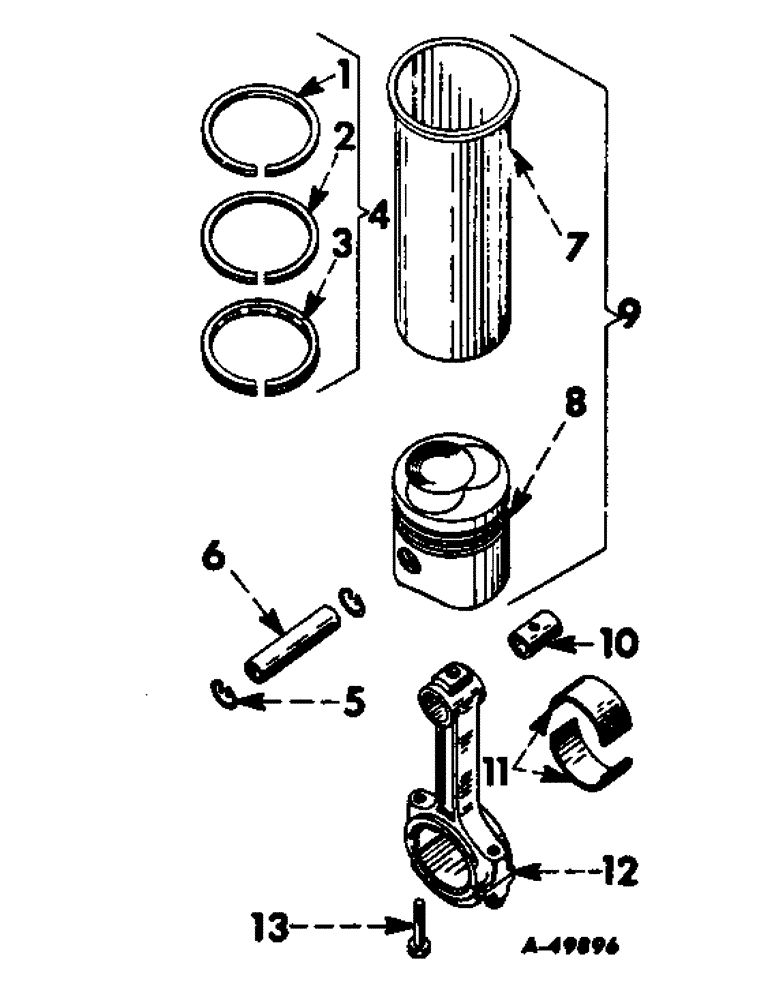

Запчасти Case IH 706 (D-07) - DIESEL ENGINES, CONNECTING RODS AND SLEEVE SETS, ENGINE SERIAL NO. 71777 AND BELOW (01) - ENGINE

1

615288C1

RING, compression piston, top or first groove, will work for 317879R1

6шт.

2

615289C1

RING

compression piston- second groove, will work for 338403R1

6шт.

3

278329R1

RING, oil piston, third or bottom groove

6шт.

4

680035C91

RING, SET

RING SET, piston, replaces 609336C91, will work for 316336R92

1шт.

5

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, , piston pin 1.125", Int, #112

12шт.

6

332436R1

PIN,28.57mm OD x 17.48mm L

piston, std.

6шт.

6

332437R1

PIN, piston, .005 O/S

6шт.

7

320017R91

PACKAGE

CYLINDER SLEEVE PKG, consists of sleeve, 278272R1, shim, 320000R1 and two shims, 320018R1

6шт.

7

278272R1

SLEEVE CYLINDER

SLEEVE, cylinder, std.

6шт.

7

323802R1

SLEEVE CYLINDER

SLEEVE, cylinder, .002 oversize

6шт.

7

601289C1

SLEEVE CYLINDER

SLEEVE, cylinder, .010 oversize

6шт.

320000R1

SHIM

cylinder sleeve, .005

1шт.

320018R1

SHIM

cylinder sleeve, .003

1шт.

8

318377R2

PISTON

SS marking

6шт.

9

609345C91

SLEEVE

SET, crankcase, consists of six sleeves, 609344C91

1шт.

9

609344C91

PACKAGE, REPAIR

SLEEVE ASSY, cylinder, composed of (1) pin 332436R1, (1) piston 318377R2, (2) ring 338835R1, (1) ring 615288C1, (1) ring 615289C1, (1) ring 278329R1, (1) sleeve pkg 320017R91

6шт.

9

609346C91

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, oversize, composed of (1) pin 332436R1, (1) piston 318377R2, (1) ring 615288C1, (1) ring 278329R1, (1) ring 615289C1, (2) ring 338835R1, (1) shim 320000R1, (2) shim 320018R1, (1) sleeve 323802R1

6шт.

10

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std

6шт.

11

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

11

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

11

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

11

367630R91

BEARING SET, connecting rod, std, consists of six bearings, 367408R11

1шт.

12

306280R12

ROD, CONNECTING

ROD W/TWO BOLTS, 316366R1 and bushing, 306708R1, connecting

6шт.

12

735237C91

REMAN-CONNECTING ROD

Remanufactured CONNECTING ROD

6шт.

12

1928147C1

CORE-ROD CONNECTING

Return No, CONNECTING ROD

6шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.
