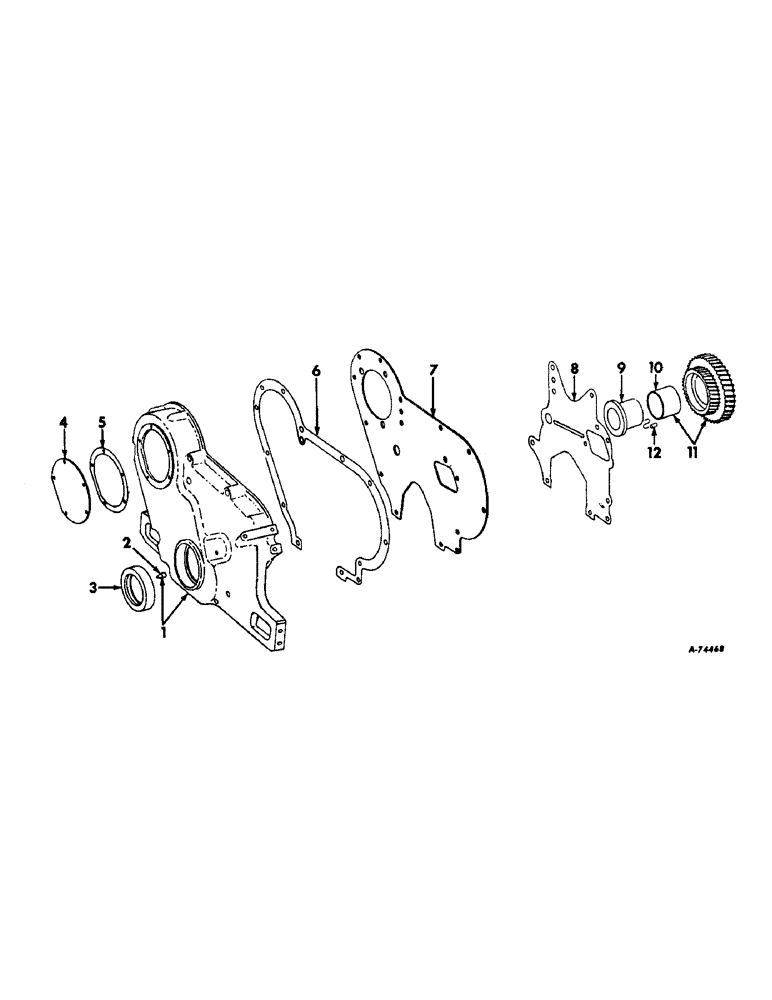

Запчасти Case IH 706 (D-05) - DIESEL ENGINES, CRANKCASE FRONT COVER AND IDLER GEAR (01) - ENGINE

1

345263R11

COVER ASSY, crankcase front

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd. cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

2

367572R1

INDICATOR

POINTER, timing

1шт.

3

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

crankshaft oil

1шт.

4

278269R1

COVER ASSY

COVER, injection pump gear

1шт.

NSS

NOT SOLD SEPARAT

SCREW, 5/16-18 x 5/8 hex-hd. cap

5шт.

NSS

NOT SOLD SEPARAT

WASHER, 5/16 med. lock

5шт.

5

278270R1

GASKET

injection pump gear cover

1шт.

6

278268R1

GASKET

crankcase front cover

1шт.

7

278264R11

PLATE W/THREE NUTS, 264723R1, crankcase front

1шт.

264723R1

NUT, spline

3шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd. cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

278265R1

GASKET

crankcase front plate

1шт.

9

367580R91

SHAFT ASSY, idler gear

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd. cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

367578R1

BUSHING

idler gear

1шт.

11

278263R11

PINION

GEAR ASSY, idler

1шт.

12

NLS

NO LONGER SERVICED

idler gear shaft dowel

1шт.
