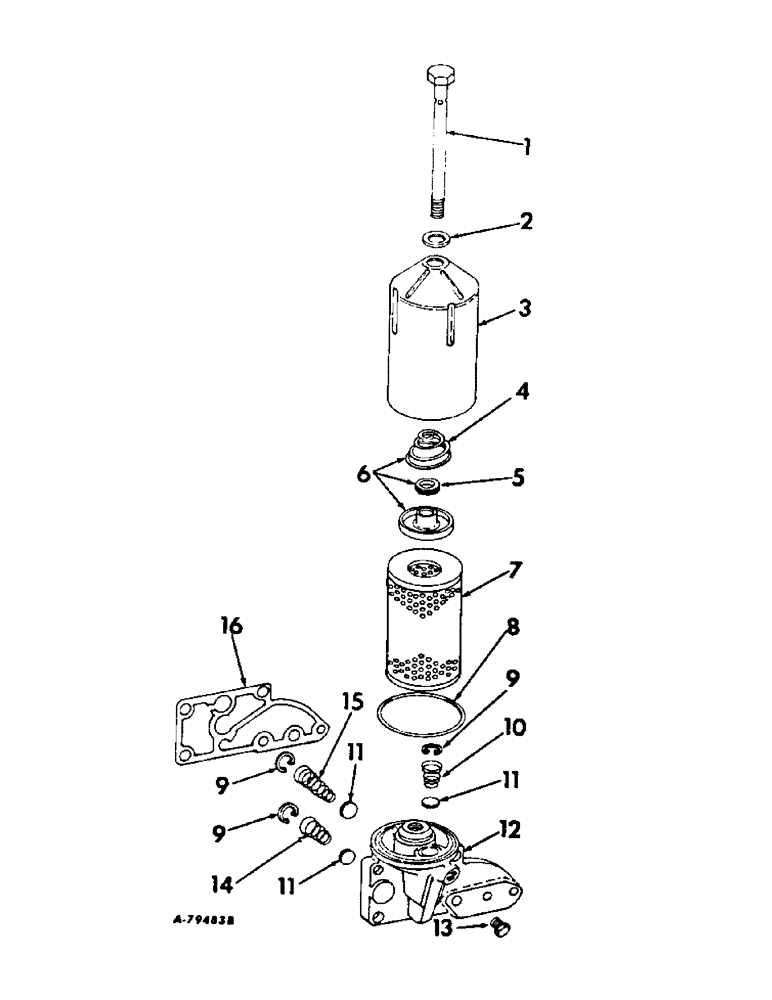

Запчасти Case IH 706 (C-17) - CARBURETED ENGINES, OIL FILTER, CARBURETED ENGINES WITH SERIAL NO. 47104 AND ABOVE (01) - ENGINE

384522R92

FILTER

ASSY, oil, less ref. 10

1шт.

1

384530R11

TUBE ASSY, oil filter center 7.4" Length

1шт.

2

384532R1

GASKET

center tube

1шт.

3

384529R1

CASE

oil filter

1шт.

4

384536R1

SPRING, element hold-down

1шт.

5

384535R1

WASHER

GROMMET, element retaining washer

1шт.

6

384533R91

RETAINER

ASSY, element

1шт.

7

279994R91

ELEMENT

oil filter

1шт.

8

304854R1

RING

GASKET, oil filter case

1шт.

9

303322R1

SNAP RING,1.00", Int, #100

3шт.

10

384525R1

SPRING

check valve

1шт.

11

384528R1

NO LONGER SERVICED

VALVE, oil filter base

3шт.

12

384523R12

BASE

ASSY, oil filter, composed of (1) base 384523R1 (NSS), (1) plug 17191R1, (3) ring 303322R1, (1) spring 384525R1, (1) spring 384526R1, (1) spring 384527R1, (2) valve 384528R1, (1) valve 389917R11 (NSS)

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd. cap

3шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 hex-hd. cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

397299R1

PLUG

oil filter base

1шт.

14

384526R1

SPRING

pressure regulating

1шт.

15

384527R1

SPRING

element by-pass

1шт.

16

384537R2

GASKET

oil filter base

1шт.
