Запчасти Case IH 706 (C-10) - CARBURETED ENGINES, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE

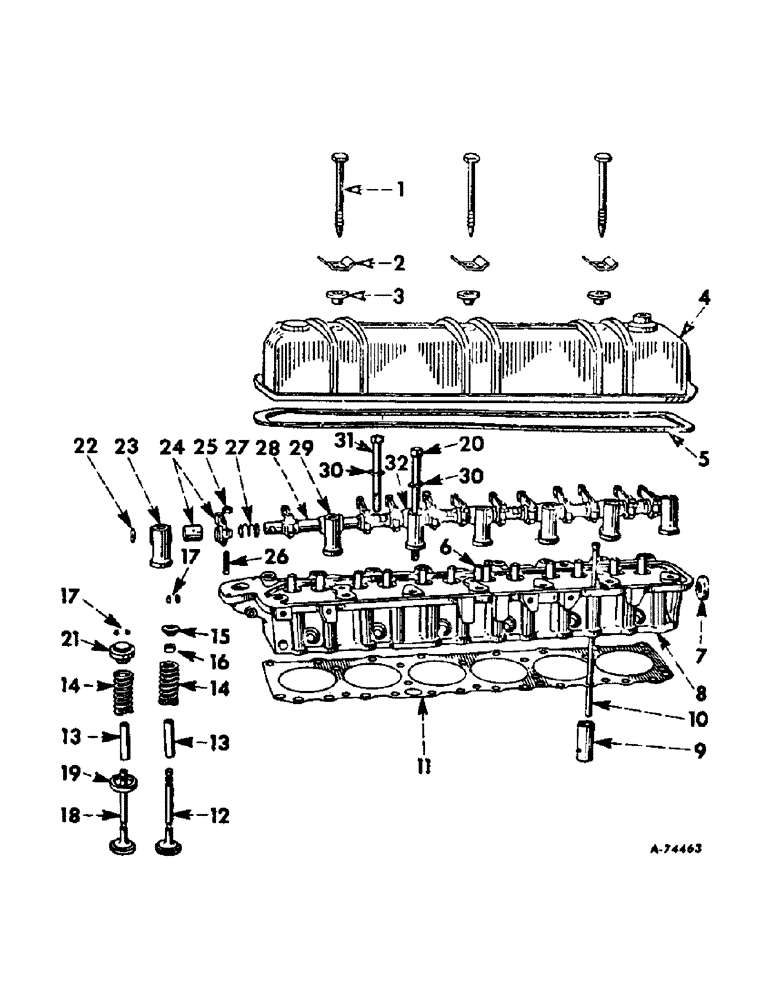

Схема запчастей Case IH 706 - (C-10) - CARBURETED ENGINES, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE
24
19
15
20
17
31
5
29
30
13
17
13
7
6
11
10
12
26
16
23
32
14
4
1
25
18
22
28
3
21
8
14
27
9
30
2

Артикул

Название

Примечание

Количество

1

168144R1

BOLT (SPREADER)

BOLT, valve cover

3шт.

2

370208R1

SUPPORT

STIFFENER, valve cover

3шт.

3

164420R1

GROMMET

valve cover

3шт.

Q399

WASHER

11/32 x 1 x 16 ga.

3шт.

4

378617R91

COVER

ASSEMBLY, valve

1шт.

5

369983R1

GASKET

valve cover

1шт.

6

69500R1

SLEEVE

DOWEL, valve lever shaft intermediate no. 2, no. 4 and no. 6 bracket

3шт.

7

70128R1

PLUG,Cup, 1 5/8"

core hole

1шт.

8

382098R94

HEAD

W/VALVES ASSY, cylinder, composed of (1) head 383665R94, (24) key 41339D, (6) retainer 151167R3, (6) rotocoil 375604R91, (12) seal 866834R1, (12) spring 367192R1, (6) valve 372699R3, (6) valve 234276R1

1шт.

8

383665R94

HEAD

ASSY, cylinder, composed of (12) guide 237247R1 (NSS), (1) head 387972R2 (NSS), (1) plug 70128R1, (1) plug 126045, (2) screw 179812, (3) screw 179852, (6) seat 126373R1

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-hd. pipe, LP gas only

1шт.

9

75524R3

TAPPET

valve

12шт.

10

164436R91

PUSH ROD

ROD, valve push

12шт.

11

164418R2

CYLINDER HEAD GASKET

cylinder head

1шт.

12

234276R1

VALVE

intake

6шт.

13

237248R1

GUIDE

intake and exhaust valve stem

12шт.

14

367192R1

SPRING

valve

12шт.

15

151167R3

SEAT

RETAINER, valve spring

6шт.

16

866834R1

BAFFLE

SEAL, intake & exhaust valve

12шт.

17

41339D

KEY

valve spring retainer

24шт.

18

372699R3

LOCK VALVE

VALVE, exhaust

6шт.

19

126373R1

SEAT

exhaust valve, gasoline

6шт.

19

112508R1

SEAT

exhaust valve, LP gas

6шт.

19

126231R1

SEAT

.015 O/S exhaust valve, gasoline

6шт.

19

126229R1

SEAT

.015 O/S exhaust valve, LP gas

6шт.

19

83488R2

SEAT, .030 O/S exhaust valve, gasoline

6шт.

19

112509R1

SEAT, .030 O/S exhaust valve, LP gas

6шт.

20

367190R1

BOLT,Cyl Hd, 1/2" x 7 3/4", Gr 8

BOLT, cylinder head, long

7шт.

21

375604R91

SEAT

ROTO-COIL, exhaust valve

6шт.

22

109544R1

PLUG

3/4 dia. expansion

2шт.

23

164422R1

BRACKET

valve lever shaft front and rear

2шт.

24

164432R91

ARM

LEVER ASSEMBLY, valve

12шт.

25

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

12шт.

26

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

12шт.

27

35619H

SPRING

valve lever

6шт.

28

76953R3

SHAFT

valve lever

2шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

2шт.

29

164423R11

BRACKET

W/DOWEL, 69500R1 assy., valve lever shaft intermediate no. 2, no. 4, and no. 6

3шт.

30

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt

15шт.

31

69722R1

BOLT,Hex, 1/2" - 13 x 4.688", Gr 8

cylinder head, short

8шт.

32

164425R1

BRACKET

valve center shaft intermediate no. 3 and no. 5

2шт.

Выбрано товаров: 41
