Запчасти Case IH 560 (052) - FUEL SYSTEM, FUEL TANK, SUPPORT AND PIPING, L.P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM

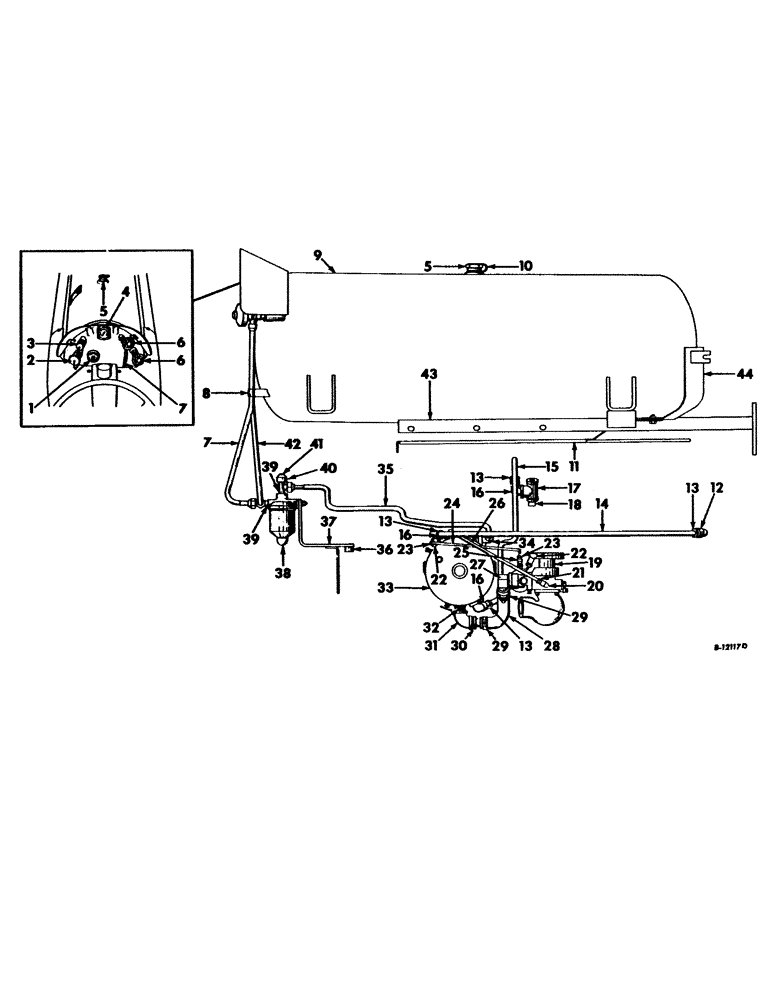

Схема запчастей Case IH 560 - (052) - FUEL SYSTEM, FUEL TANK, SUPPORT AND PIPING, L.P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM
37
9
25
7
38
22
13
6
13
16
35
36
32
6
23
42
14
2
39
4
5
34
13
23
29
29
41
15
12
16
8
7
10
13
16
28
30
44
43
20
18
33
5
3
31
17
1
27
21
19
40
11
39
22
24
26

Артикул

Название

Примечание

Количество

1

376514R91

GAUGE, w/dial, 376524R1, ring 369050R1 and stem assembly, 369048R91, assembly, fixed liquid level (Fisher Governor) (optional with 363693R91)

1шт.

1

363693R91

GAUGE, w/plate, 369049R1, ring, 369050R1 and stem, 369048R91, assembly, fixed liquid level (Bastian Blessing Co.) (optional with 357068R91)

1шт.

2

363688R91

VALVE ASSEMBLY, 3/4NPT filler (Bastian Blessing Co.) (optional with 376516R91) (for components see list of parts under details of "valves")

1шт.

2

376516R91

VALVE ASSEMBLY, 3/4NPT filler (Fisher Governor) (optional with 363688R91) (for components see list of parts under details of "valves")

1шт.

3

109567R91

VALVE, w/excess flow check and chain assembly, vapor return (optional with 357064R92) (for components see list of parts under details of "valves")

1шт.

3

376517R91

VALVE, w/excess flow check and chain assembly, vapor return (optional with 109567R91) (for components see list of parts under details of "valves")

1шт.

4

371797R91

GAUGE, w/chamber, 369381R91 and gasket, 364263R1 assembly, liquid level magnetic

1шт.

SCREW, 5/16 x 7/8" fil-hd. cap (Rochester)

4шт.

SCREW, 5/16 x 1" fil-hd. cap (Taylor)

4шт.

4

364263R1

GASKET, liquid level gauge (not illustrated) (used with gauge, 371797R91)

1шт.

4

369381R91

CHAMBER ASSEMBLY, dial (Rochester) (not illustrated) (used with gauge, 371797R91)

1шт.

SCREW, 6-32 x 1/4" pan-hd-rec. tapping

2шт.

5

363690R91

VALVE, relief (optional with 376512R91)

1шт.

5

376512R91

VALVE, relief (optional with 363690R91)

1шт.

6

109850R91

VALVE, w/handwheel and excess flow check assembly, service (for components see list of parts under detail of "valves")

2шт.

7

371783R11

LINE ASSEMBLY, filter to vapor valve fuel

1шт.

8

369758R1

CLAMP

fuel line

1шт.

SCREW, 1/4 x 1" hex-hd. cap

1шт.

9

371775R91

TANK ASSEMBLY, fuel, composed of (1) cap 363692R1, (1) gauge 363693R91, (1) gauge 371797R91, (1) valve 109567R91, (2) valve 109850R91, (1) valve 363688R91, (1) valve 363690R91, (1) tank (NSS)

1шт.

375435R1

NUT, 7/16NF "lokut"

4шт.

SCREW, 7/16 x 1-1/2" hex-hd. cap

4шт.

359673R1

SPACER, fuel tank mounting (560 series)

8шт.

369324R1

SPACER, fuel tank mounting (International 660)

8шт.

10

363692R1

CAP, rain relief valve (used with valve, 363690R91)

1шт.

10

368363R1

CAP, rain relief valve (used with valve, 376512R91)

1шт.

11

371670R11

SHIELD, heat

1шт.

SCREW, 5/16 x 3/8" cap

2шт.

12

19502R1

ELBOW, regulator to water pump line (45 deg.)

1шт.

13

19987R1

NUT

coupling

4шт.

14

371106R11

LINE, w/two nuts, 19987R1, assembly, regulator to water pump water

1шт.

15

371105R21

LINE, w/two nuts, 19987R1, assembly, regulator to cylinder head water

1шт.

16

68134D

ELBOW, 90 deg. 90º x 1/2" NPT x 11/16"-16

3шт.

17

138105

TEE,1/2" NPT, Fem

1/2" pipe

1шт.

18

144610

PIPE

NIPPLE, 1/2 x 1-3/8" close pipe

1шт.

19

371088R91

CARBURETOR ASSEMBLY, (for components see list of parts under details of "carburetor")

1шт.

SCREW, 3/8 x 1-1/4" hex-hd. cap

2шт.

20

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

regulator to carburetor balance line

2шт.

21

19985R1

TUBE NUT,1/2"-20

NUT, coupling

2шт.

22

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

1/8" x 90 deg.

2шт.

23

19983R1

NUT, coupling

4шт.

24

371104R11

LINE, w/two nuts, 19983R1 assembly, regulator to carburetor idle

1шт.

25

373191R91

TEE, 19272R1, w/nut, 19983R1 assembly

1шт.

25

19272R1

TEE, 1/8" x 90 deg., two-way

1шт.

26

371103R11

LINE, w/two nuts, 19985R1 assembly, regulator to carburetor balance

1шт.

27

188897R1

ELBOW, fuel hose

1шт.

28

371102R1

HOSE

fuel line

1шт.

29

39114H

CLAMP

fuel line hose

2шт.

30

188902R1

NIPPLE, fuel hose

1шт.

31

119099

ELBOW, 3/4" x 90 deg. pipe 90º, 3/4" NPT

1шт.

32

128067

BOLT

NIPPLE, 3/4 x 1-1/2" pipe

1шт.

33

371100R91

REGULATOR ASSEMBLY, fuel (for components see list of parts under detail of "regulator")

1шт.

SCREW, 5/16 x 1-1/8" hex-hd. cap

1шт.

SCREW, 5/16 x 1-1/2" hex-hd. cap

2шт.

86224H

SPACER,1/4" Pipe x 3/8"

Fuel regulator 1/4" Pipe x 3/8"

2шт.

WASHER, 5/16" lock

3шт.

34

109563R1

ELBOW

90 deg. flared tube

1шт.

35

371660R11

LINE, regulator to fuel filter (560 series)

1шт.

35

373081R11

LINE, regulator to fuel filter (International 660)

1шт.

36

371658R1

SPACER, filter mounting bracket

2шт.

37

371781R11

BRACKET, fuel filter and voltage regulator mounting (560 series)

1шт.

SCREW, 7/16 x 1-1/2" hex-hd. cap

2шт.

37

371781R1

BRACKET, fuel filter mounting (International 660)

1шт.

SCREW, 7/16 x 2-3/4" hex-hd. cap

2шт.

38

64147D

FILTER ASSEMBLY, fuel (for components see list of parts under details of "fuel filter")

1шт.

NUT, 5/16"

2шт.

SCREW, 5/16 x 7/8" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

39

364598R1

TEE, right angle, two-way flared tube

2шт.

40

357078R1

NUT, fuel line tee cap (optional with 361533R1)

1шт.

40

361533R1

NUT, fuel line tee cap (optional with 357078R1)

1шт.

41

357495R1

CAP, fuel line tee

1шт.

42

371782R11

LINE, filter to liquid valve fuel

1шт.

43

371779R11

ANGLE ASSEMBLY, fuel tank support LH (560 series)

1шт.

43

371780R11

ANGLE ASSEMBLY, fuel tank support RH (560 series)

1шт.

43

373073R11

ANGLE ASSEMBLY, fuel tank support LH (International 660 series)

1шт.

43

373074R11

ANGLE ASSEMBLY, fuel tank support RH (International 660 series)

1шт.

NUT, 3/8"

6шт.

SCREW, 3/8 x 1" hex-hd. cap

6шт.

SCREW, 7/16 x 1" hex-hd. cap

4шт.

WASHER, 13/32 x 13/16" x 16 ga.

12шт.

WASHER, 3/8" lock

6шт.

44

371673R11

SHIELD ASSEMBLY, front heat (560 series)

1шт.

44

373082R11

SHIELD ASSEMBLY, front heat (International 660)

1шт.

SCREW, 5/16 x 3/8" hex-hd. cap

1шт.
