Запчасти Case IH 560 (049) - FUEL SYSTEM, FUEL TANK SUPPORT (02) - FUEL SYSTEM

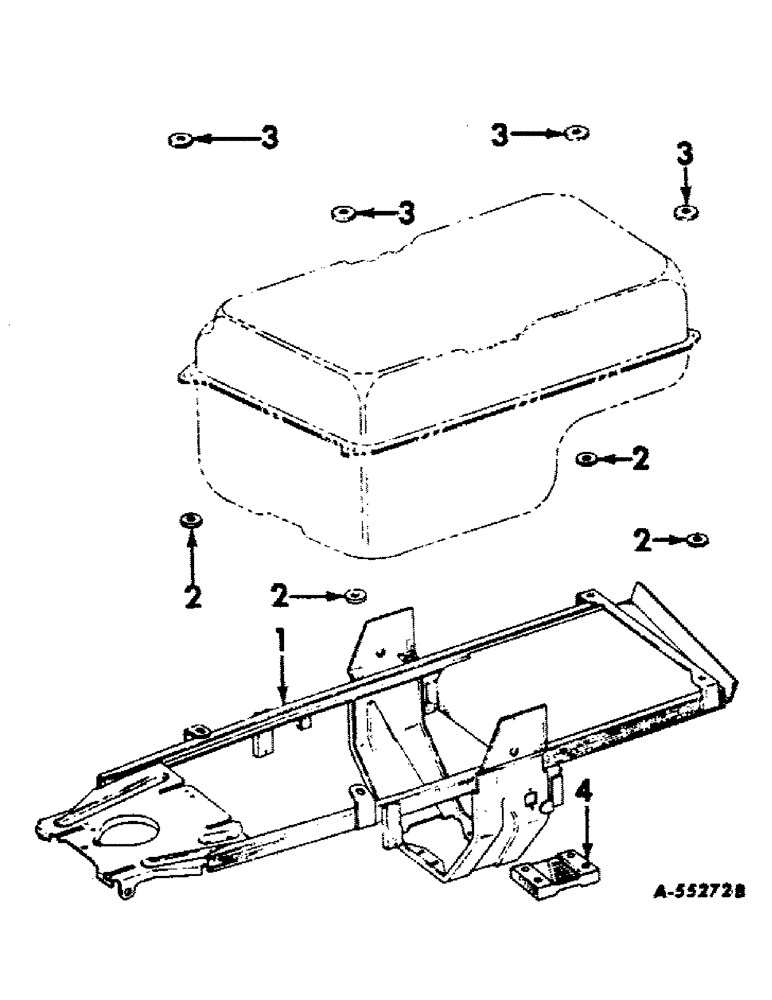

Схема запчастей Case IH 560 - (049) - FUEL SYSTEM, FUEL TANK SUPPORT (02) - FUEL SYSTEM
4
3
2
3
3
2
2
2
1
3

Артикул

Название

Примечание

Количество

1

370083R11

SUPPORT ASSEMBLY, fuel tank (gasoline and diesel engine tractors) (560 series)

1шт.

1

376365R91

SUPPORT ASSEMBLY, fuel tank (gasoline and diesel engine tractors) International 6604256 up

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage

2шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

SCREW, 7/16 x 1" hex-hd. cap (560 series)

4шт.

SCREW, 7/16 x 2" hex-hd. cap (International 660 series)

2шт.

SCREW, 7/16 x 2-1/4" hex-hd. cap (International 660 series)

2шт.

WASHER, 17/32 x 1-1/16" x 13 ga. (560 series)

4шт.

WASHER, 15/32 x 59/64" x .065 ga. (International 660 series)

4шт.

1

371776R91

SUPPORT ASSEMBLY, fuel tank (L.P. gas engine tractors)

1шт.

1

376367R91

SUPPORT ASSEMBLY, fuel tank (L.P. gas engine tractors) International 6604256 up

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage

2шт.

SCREW, 3/4 x 3/4" hex-hd. cap

1шт.

SCREW, 7/16 x 1" hex-hd. cap

2шт.

WASHER, 17/32 x 1-1/16" x 13 ga.

2шт.

2

60671D

INSULATOR BLOCK

PAD, fuel tank insulating Farmall 560 series, 501 to 12108 International 560 series, 501 to 1632 International 660 series, Serial Range: 501-869

8шт.

2

60671D

INSULATOR BLOCK

PAD, fuel tank insulating Farmall 560 series, 12109 up International 560 series, 1633 up International 660 series, 870 up

4шт.

3

362321R1

RETAINER, fuel tank insulating pad Farmall 560 series, 501 to 12108 International 560 series, 501 to 1632 International 660 series, Serial Range: 501-869

4шт.

3

95-11041

WASHER,3/8"

(13/32 x 13/16" x .065 ga), Fuel tank insulating pad, Farmall 560 series, 12109 up International 560 series, 1633 up International 660 series, 870 up 3/8"

4шт.

4

372330R1

ADAPTER, fuel tank support (International 660 series)

1шт.

Выбрано товаров: 20
