Запчасти Case IH 560 (044) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, CARBURETED ENGINE TRACTORS (02) - FUEL SYSTEM

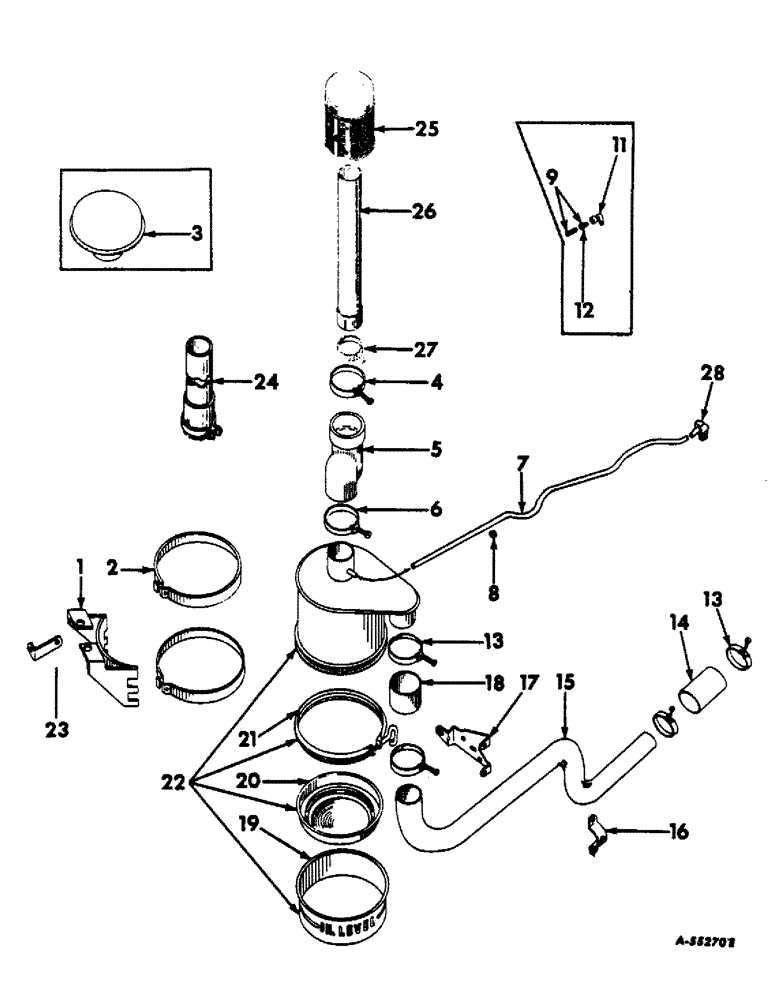

Схема запчастей Case IH 560 - (044) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, CARBURETED ENGINE TRACTORS (02) - FUEL SYSTEM
24
11
18
21
2
12
5
1
7
20
19
13
14
13
22
17
27
6
4
16
28
25
8
15
9
3
23
26

Артикул

Название

Примечание

Количество

1

370239R1

BRACKET, air cleaner (560 series)

1шт.

1

372833R1

BRACKET, air cleaner (International 660)

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 3/4" hex-hd cap

2шт.

2

53051D

BAND, air cleaner mounting

2шт.

NUT, 5/16" sq

2шт.

SCREW, 5/16 x 1-1/2" slt-fil-hd mach

2шт.

3

275285R91

CAP

ASSEMBLY, air cleaner intake Farmall 560501 to 44419 International 560501 to 4839 International, Serial Range: 660501-4255

1шт.

4

29978D

CLAMP

air cleaner intake hose upper

1шт.

5

370225R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID x 7.40", SAE 20R4 Class SC

- Air cleaner 2.25" ID, 2.50" ID x 7.40", SAE 20R4 Class SC

1шт.

6

29980D

CLAMP, air cleaner intake hose lower

1шт.

7

371306R1

HOSE ASSY.

HOSE, air cleaner to valve cover (gasoline), Serial Range: C263501-34299

1шт.

7

372621R1

HOSE, air cleaner to valve cover (L.P. gas)

1шт.

8

138963R1

GROMMET, air cleaner to valve cover hose, Serial Range: C263501-34299

1шт.

9

364252R11

PIPE ASSEMBLY, breather, Serial Range: C263501-29041

1шт.

11

365781R1

ELBOW, breather pipe, Serial Range: C263501-29041

1шт.

12

19986R1

TUBE NUT,9/16"-20

NUT, breather pipe elbow C263501 to 29041

1шт.

13

29980D

CLAMP, air cleaner outlet pipe hose

4шт.

14

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe, Carburetor End (Gasoline) 2.25" ID x 2.25", SAE 20R1 Class R

1шт.

14

363801R1

HOSE, air cleaner outlet pipe, carburetor end (L.P. gas) (2-1/4 x 2-3/4" long, 3 ply)

1шт.

15

370241R1

PIPE, air cleaner outlet (gasoline)

1шт.

15

371794R1

PIPE, air cleaner outlet (L.P. gas)

1шт.

16

370228R1

STRAP, air cleaner outlet pipe support

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 1/2" hex-hd cap

2шт.

17

370227R1

SUPPORT, air cleaner outlet pipe

1шт.

18

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe 2.25" ID x 2.25", SAE 20R1 Class R

1шт.

19

372490R1

BOWL

CUP, oil

1шт.

20

37249R11

CUP, inner oil

1шт.

21

54269DA

CLAMP

ASSEMBLY, oil cup retaining

1шт.

22

370583R91

CLEANER ASSEMBLY, air (560 series)

1шт.

22

372831R91

CLEANER ASSEMBLY, air (International 660)

1шт.

23

372834R1

BRACE, air cleaner bracket (International 660)

1шт.

NUT, 1/4"

1шт.

SCREW, 1/4 x 9/16" hex-hd cap

1шт.

SCREW, 5/16 x 5/8" hex-hd cap

1шт.

24

376351R1

AIR INTAKE TUBE,40575" OD, 24" Length

EXTENSION, air pipe (560 series)

1шт.

31790DA

CLAMP

air pipe

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 1-3/4" cap

1шт.

WASHER, 3/8" lock

1шт.

25

353413R92

PRE-SCREENER, air cleaner (for components see list of parts under details of pre-screener) Farmall 56044420 up, International 5604840 up, International 6604256 up

1шт.

26

376351R1

AIR INTAKE TUBE,40575" OD, 24" Length

PIPE, air cleaner extension International 6604256 up

1шт.

26

378809R1

PIPE, air cleaner extension Farmall 5604420 to 57881 International, Serial Range: 5604840-5454

1шт.

27

31790DA

CLAMP

air pipe Farmall 56044420 up International 5604840 up International 6604256 up

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 1-3/4" cap

1шт.

WASHER, 3/8" lock

1шт.

28

376559R1

ELBOW, breather pipe, Serial Range: C26329042-34300

1шт.

375865R91

PARTS ACCESSORY, pre-screener International, Serial Range: 660501-4255

1шт.

Выбрано товаров: 50
