Запчасти Case IH 560 (040) - FUEL SYSTEM, CARBURETOR, L.P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM

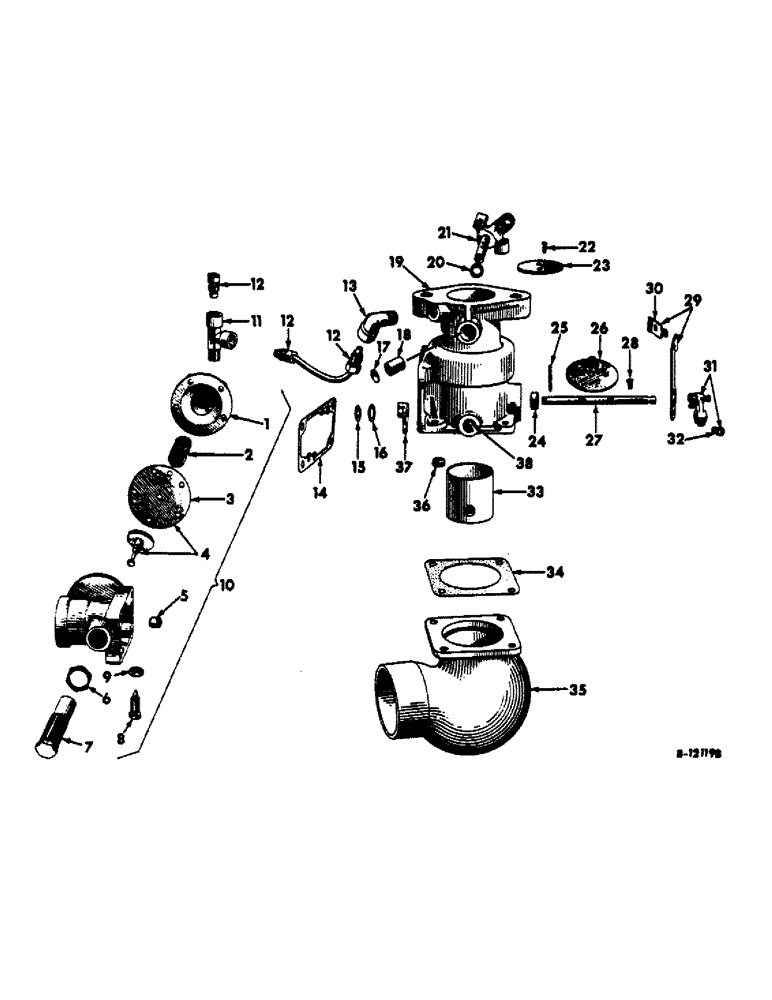

Схема запчастей Case IH 560 - (040) - FUEL SYSTEM, CARBURETOR, L.P. GAS ENGINE TRACTORS (02) - FUEL SYSTEM
21
32
35
9
36
16
27
25
12
15
13
28
3
10
26
12
23
24
34
7
8
31
2
29
12
22
18
37
17
33
1
38
20
19
6
14
30
5
4
11

Артикул

Название

Примечание

Количество

1

359623R1

COVER, economizer

1шт.

SCREW, no. 8 x 5/8" slt-fil-hd. cd-pltd. mach.

5шт.

WASHER, no. 8 cd-pltd. lock

5шт.

2

359622R1

SPRING, economizer (unit A)

1шт.

2

128071R1

SPRING, economizer (unit B)

1шт.

3

113504R1

DIAPHRAGM, economizer

1шт.

4

359621R91

DIAPHRAGM ASSEMBLY, economizer

1шт.

5

373189R1

SCREW, economizer bleed

1шт.

6

56430D

NUT, fuel adjusting screw lock

1шт.

7

56429D

SCREW, fuel adjusting

1шт.

8

359620R1

SCREW, starting adjusting

1шт.

9

113506R1

NUT, starting adjusting screw lock

1шт.

10

359618R91

INLET AND ECONOMIZER ASSEMBLY, gas (less ref. 5) (unit A)

1шт.

10

373537R91

INLET AND ECONOMIZER ASSEMBLY, gas (less ref. 5) (unit B)

1шт.

SCREW, no. 12 x 7/8" slt-fil-hd. cd-pltd. mach.

4шт.

WASHER, no. 12 cd-pltd. light lock

4шт.

11

19272R1

TEE, 1/8 x 90 deg. two-way (for 3/16 tube)

1шт.

11

373191R91

TEE, w/two nut, 19983R1 assembly, two-way (for 3/16 tube)

1шт.

12

19983R1

NUT, coupling

3шт.

13

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

1/8 x 90 deg. (for 3/16 tube)

1шт.

14

359624R1

GASKET, gas inlet and economizer

1шт.

15

37183D

WASHER, valve lever

1шт.

16

359615R1

WASHER, spring

1шт.

17

47856H

PLUG, 1/2" brs. expansion

1шт.

18

37024D

BUSHING, throttle bearing

2шт.

19

374862R91

BODY AND THROTTLE ASSEMBLY, partial (unit A), composed of (1) body (NSS), (2) bushing 37024D, (1) disc 359611R1, (1) nozzle 64835D, (1) oil seal 64837D, (1) plug 13123D, (1) plug 47856H, (2) screw 56370D, (1) shaft and stop 373187R91

1шт.

19

374859R91

BODY AND THROTTLE ASSEMBLY, partial (unit B), composed of (1) body (NSS), (2) bushing 37024D, (1) disc 374860R1, (1) nozzle 64835D, (1) oil seal 64834D, (1) plug 13123D, (1) plug 47856H, (2) screw 56370D, (1) shaft and stop 373536R91

1шт.

20

64837D

OIL SEAL, throttle shaft

1шт.

21

373187R91

SHAFT AND STOP ASSEMBLY, throttle (unit A)

1шт.

21

373536R91

SHAFT AND STOP ASSEMBLY, throttle (unit B)

1шт.

SCREW, no. 10NF x 5/8" slt-fil-hd. cd-pltd. mach.

1шт.

22

56370D

SCREW, throttle shaft

2шт.

23

359611R1

DISC, throttle (unit A) (used only with 371088R92 carburetor)

1шт.

23

374863R1

DISC, throttle (unit A) (used only with 371088R92 carburetor)

1шт.

23

268656R1

DISC, throttle (unit B) (used only with 373013R91 carburetor)

1шт.

23

374860R1

DISC, throttle (unit B) (used only with 373013R92 carburetor)

1шт.

24

58899D

WASHER, dust

1шт.

25

359616R1

PIN, valve lever

1шт.

26

359613R91

DISC ASSEMBLY, spring loaded choke (unit A)

1шт.

26

128068R91

DISC ASSEMBLY, spring loaded choke (unit B)

1шт.

27

359612R1

SHAFT, choke (unit A)

1шт.

27

128069R1

SHAFT, choke (unit B)

1шт.

28

56365D

SCREW, choke shaft

2шт.

29

58889D

SUPPORT ASSEMBLY, choke tube

1шт.

SCREW, no. 8 x 1/4" slt. binding hd. cd-pltd. mach.

2шт.

30

56389D

CLAMP, choke tube

1шт.

NUT, no. 10NF

1шт.

SCREW, no. 10NF x 3/8" slt-fil-hd. cd-pltd. mach.

1шт.

31

275583R91

LEVER ASSEMBLY, choke

1шт.

SCREW, no. 10NF x 1/2" hex-hd. mach.

1шт.

32

36756D

SCREW, choke lever set

1шт.

33

373939R1

VENTURI, (unit A)

1шт.

33

373940R1

VENTURI, (unit B)

1шт.

SCREW, no. 12 x 3/4" slt-fil-hd. cd-pltd. mach.

1шт.

WASHER, no. 12 cd-pltd. light lock

1шт.

34

359627R1

GASKET, air intake elbow (unit A)

1шт.

34

128073R1

GASKET, air intake elbow (unit B)

1шт.

35

373190R1

ELBOW, air intake (unit A)

1шт.

35

373538R1

ELBOW, air intake (unit B)

1шт.

SCREW, no. 12 x 5/8" slt-fil-hd. cd-pltd. mach

4шт.

WASHER, no. 12 cd-pltd. light lock

4шт.

36

13123D

PLUG, 3/16" brs. expansion

1шт.

37

359614R1

LEVER, valve

1шт.

38

64835D

NOZZLE, balance tube

1шт.

Выбрано товаров: 64
