Запчасти Case IH 560 (038) - FUEL SYSTEM, CARBURETOR, IH, GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM

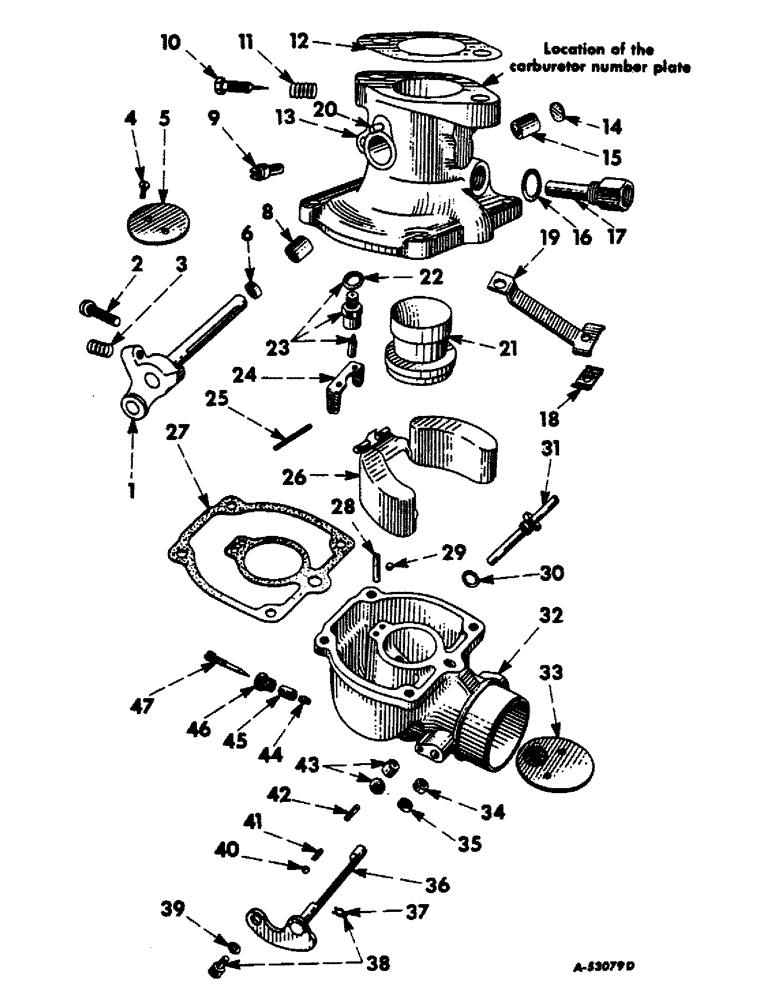

Схема запчастей Case IH 560 - (038) - FUEL SYSTEM, CARBURETOR, IH, GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM
6
34
16
4
14
39
18
8
40
44
35
22
19
33
5
25
20
1
29
9
12
2
24
11
36
32
28
10
13
38
23
31
26
30
27
17
3
43
46
47
41
42
15
45
21
37

Артикул

Название

Примечание

Количество

1

368139R91

SHAFT

AND LEVER ASSEMBLY, throttle

1шт.

2

132128

SCREW, throttle shaft adjusting Slotted Fil Hd, #10-32 x 7/8"

1шт.

3

25484D

SPRING

idle throttle adjustment retainer

1шт.

4

47392D

SCREW

throttle butterfly

2шт.

5

370862R1

BUTTERFLY, throttle (units A and C)

1шт.

5

54489D

VALVE

BUTTERFLY, throttle (units B and D)

1шт.

6

379598R1

SEAL

throttle shaft dust

1шт.

8

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

2шт.

9

368142R1

PLUG, idle passage

1шт.

10

362528R1

ADJUSTMENT SCREW

idle adjusting

1шт.

11

351959R1

SPRING

idle adjustment screw retainer

1шт.

12

31336D

GASKET

carburetor (not included in carburetor assembly)

1шт.

13

368147R21

BODY ASSEMBLY, throttle (units A and C), composed of (1) body 368147R2 (NSS), (2) bushing 47390D, (1) pin 45110D, (1) plug 32611D (NSS), (1) plug 47393D (NSS), (1) plug 5795D, (1) seal 379598R1

1шт.

13

373501R21

BODY ASSEMBLY, throttle (units B and D), composed of (1) body 373501R2 (NSS), (2) bushing 47390D, (1) pin 45110D, (1) plug 32611D (NSS), (1) plug 47393D (NSS), (1) plug 57956D, (1) seal 379598R1

1шт.

14

57956D

PLUG

throttle shaft expansion

1шт.

15

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

2шт.

16

18377D

GASKET

strainer screen retainer

1шт.

17

29902DX

SCREEN

RETAINER ASSEMBLY, strainer screen

1шт.

18

32596D

FASTENER

CLAMP, starting shutter control

1шт.

NUT, no. 10NF sq. cd-pltd.

1шт.

SCREW, no. 10NF x 5/8" slt-fil-hd. mach. cd-pltd.

1шт.

WASHER, no. 10 cd-pltd. lock

1шт.

19

368146R11

SUPPORT

BRACKET W/CLAMP, 32956D assembly starting shutter control

1шт.

20

45110D

PIN

throttle stop

1шт.

21

368143R1

VENTURI, double (unit A)

1шт.

21

372722R1

VENTURI, double (unit B)

1шт.

21

47407D29

VENTURI

single (unit C) (see note E)

1шт.

21

47407D33

VENTURI

single (unit D)

1шт.

22

25948D

GASKET

needle valve cage

1шт.

23

47396DXA45

CAGE

ASSEMBLY, needle valve (units A, B and C)

1шт.

23

47396DXA40

CAGE

ASSEMBLY, needle valve (unit D)

1шт.

24

47394D

SUPPORT

float lever pivot

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

no. 4 x 5/16" slt-rd-hd mach cd-pltd

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

25

47395D

PIVOT

float lever

1шт.

26

47398DX

FLOAT

AND LEVER ASSEMBLY

1шт.

27

47388DA

GASKET

fuel bowl

1шт.

28

49798D75

JET

idle metering #75

1шт.

29

35606D54

BLEED, main air (see note A)

1шт.

29

35606D52

BLEED, main air (see notes B, C and D)

1шт.

30

251583R1

WASHER

GASKET, metering nozzle

1шт.

31

370863R1

NOZZLE, metering (see notes A and B)

1шт.

31

374328R1

NOZZLE, metering (see notes C and D)

1шт.

31

376441R1

NOZZLE INJECTION

NOZZLE, metering (unit C) (see note E)

1шт.

31

379065R1

NOZZLE INJECTION

NOZZLE, metering (unit D)

1шт.

32

368144R91

BOWL ASSEMBLY, fuel (see note A), composed of (1) bleed 35606D54, (1) bowl 364261R1 (NSS), (1) filler 27445DB (NSS), (1) pin 351588R1, (1) plug 57957D (NSS), (1) plug 32611D (NSS), (1) retainer 45148D, (1) seal 45149DA, (1) seat 355003R1

1шт.

32

372720R12

BOWL ASSEMBLY, fuel (see notes B, C and D), composed of (1) bowl 372720R1 (NSS), (1) filler 27445DB (NSS), (1) pin 351588R1, (1) plug 57957D (NSS), (1) plug 32611D (NSS), (1) retainer 45148D, (1) seal 45149DA

1шт.

SCREW, 1/4 x 7/8" hex-hd. cd-pltd. cap

4шт.

WASHER, 1/4" cd-pltd. lock

4шт.

117243

BOTTOM

PLUG, 1/8" sq-hd cd-pltd pipe

1шт.

33

358002R12

SHUTTER ASSEMBLY, starting

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6 x 1/4" slt-rd-hd mach cd-pltd

2шт.

WASHER, no. 6 cd-pltd. lock

2шт.

34

45149DA

SEAL

butterfly dust

1шт.

35

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, dust seal

1шт.

36

352642R91

LEVER

SHAFT AND LEVER ASSEMBLY, starting shutter

1шт.

37

363881R1

RETAINER

starting shutter lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

no. 10NF x 5/8" fil-hd mach cd-pltd

1шт.

38

64283DBX

PIVOT ASSY.

SWIVEL ASSEMBLY, starting shutter lever

1шт.

39

32592D

WASHER

WASHER, starting shutter lever swivel

1шт.

40

52791R1

BALL,3/16" Dia, Stainless

friction spring

1шт.

41

46059D

SPRING

starting shutter friction

1шт.

42

351588R1

PIN

starting shutter stop

1шт.

43

60947D

PLUG

PACKAGE, drip hole filler replacement

1шт.

44

355003R1

VENT

SEAT, fuel adjustment screw, .051 (see note A)

1шт.

44

372721R1

SEAL, fuel adjustment screw, .055 (see note B)

1шт.

44

374329R1

SEAT, fuel adjustment screw, .049 (see note C)

1шт.

44

374330R1

SEAT, fuel adjustment screw, .060 (see note D)

1шт.

44

374482R2

SEAT

fuel adjustment screw, .061 (unit C)

1шт.

44

380500R1

SEAT

fuel adjustment screw, .063 (unit D)

1шт.

45

24703DA

PACKING

fuel adjusting screw (optional with 67266DX)

1шт.

45

67266DX

PACKING

fuel adjusting screw (optional with 24703DA)

1шт.

46

24687DA

NUT,7/16" - 32 NPT

NUT, fuel adjusting screw packing

1шт.

47

47404DA

ADJUSTMENT SCREW,Pan HD, 1/4" - 32 x 1-13/32", SST

fuel adjusting (see notes A and B)

1шт.

47

374327R1

ADJUSTMENT SCREW,Sl Str Knurled Hd, 1/4" - 32 x 1.54", SST

fuel adjusting (see notes C and D)

1шт.

376437R91

CARBURETOR

1шт.

PACKAGE, carburetor single venturi (see note A), consists of (1) bleed 35606D52, (1) bowl 372720R1 (NSS), (1) filler 27455DB (NSS), (1) gasket 31336D, (1) gasket 47338DA, (1) gasket 251583R1, (1) nozzle 376441D1, (1) nut 24687DA, (1) packing 24703DA, (1) pin 351588R1, (2) plug 32611D (NSS), (1) plug 57957D (NSS), (1) retainer 45148D, (1) screw 374327R1, (1) seal 45149DA, (1) seat 374330R1, (1) venturi 47407D29

1шт.

376438R91

CARBURETOR

PACKAGE, carburetor single venturi, (see note C), consists of (1) gasket 31336D, (1) gasket 47388DA, (1) gasket 251583R1, (1) nozzle 376441R1, (1) venturi 47407D29

1шт.
