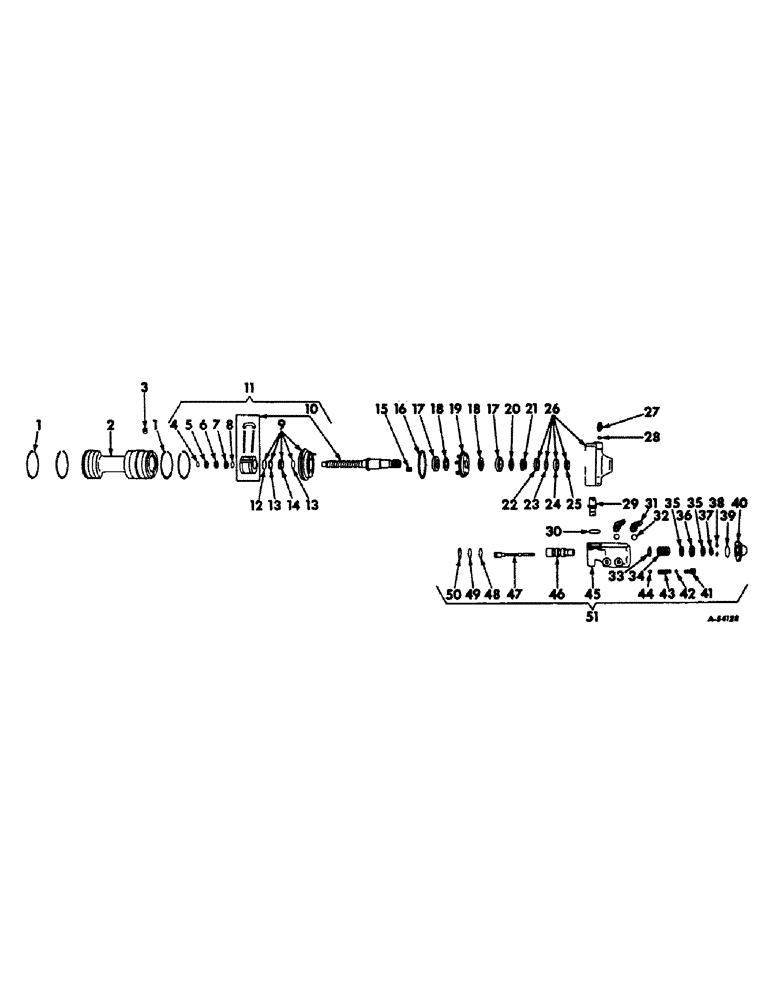

Запчасти Case IH 560 (176) - STEERING MECHANISM, POWER STEERING WORM UNIT, FARMALL 560 SERIES Steering Mechanism

370546R91

WORM UNIT ASSEMBLY, power steering

1шт.

1

372817R1

RING

rack piston

4шт.

2

372816R1

RACK, piston

1шт.

3

372815R1

SCREW,5/8" - 18 x 0.70", HT

retaining

1шт.

4

372804R1

RING

worm seal retaining

1шт.

5

372805R1

WASHER

retaining ring

1шт.

6

372806R1

WASHER

worm seal retaining

1шт.

7

372807R91

OIL SEAL

ASSEMBLY, steering worm

1шт.

8

372808R1

WASHER, seal retaining

1шт.

9

372803R91

ADAPTER ASSEMBLY, steering worm

1шт.

10

372805R91

WORM AND BALL NUT ASSEMBLY, steering

1шт.

11

372800R91

GEAR

WORM AND BLAL NUT, w/adapter assembly, steering

1шт.

12

372809R91

RING, adapter seal retaining

1шт.

13

372810R1

WASHER

adapter seal retaining

2шт.

14

373054R91

PACKING

OIL SEAL, adapter

1шт.

15

372814R1

THRUST BEARING

thrust bearing centering

4шт.

16

285723R1

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

adapter (3-1/8 x 3-3/8 x 1/8")

1шт.

17

372819R1

RACE

RACE, worm thrust bearing

2шт.

18

368372R91

THRUST BEARING

worm thrust needle

2шт.

19

372813R91

PLATE

CENTER RACE AND SPRING ASSEMBLY, steering worm

1шт.

20

371228R1

THRUST WASHER

worm thrust bearing nut

1шт.

21

371229R1

BEARING LOCK NUT

worm bearing lock

1шт.

22

372762R91

OIL SEAL

OIL SEAL, end cover

1шт.

23

371220R1

BACK-UP RING

oil seal back up

1шт.

24

371221R91

BEARING, NEEDLE,Needle, 22.21mm ID x 28.59mm OD x 9.52mm W

1шт.

25

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

OIL SEAL, end cover

1шт.

26

372811R91

COVER

END COVER ASSEMBLY, steering worm

1шт.

27

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 37 deg. end cover

1шт.

28

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

29

372812R1

LEVER

valve actuating

1шт.

30

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

footed valve (1-1/16 x 1-1/4 x 3/32")

1шт.

31

9411169

FITTING

ELBOW, 90 deg. footed valve

2шт.

32

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

33

372794R1

WASHER

centering spring, front

1шт.

34

574065R1

SPRING

centering

1шт.

35

372796R1

WASHER

centering spring, rear

2шт.

36

372818R1

SEALING RING

RING, spool valve seal

1шт.

37

574076R1

WASHER

RETAINER, spool valve seal ring

1шт.

38

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Valve body

2шт.

39

370943R1

O-RING,1.114" ID x 0.07" Width

end cover (1-1/8 x 1-1/4 x 1/16")

1шт.

40

372799R1

COVER

valve end

1шт.

SCREW, 1/4 x 5/8" hex-hd

2шт.

WASHER, 1/4" lock

2шт.

41

373062R91

PLUG

AND ROLL PIN ASSEMBLY, valve

1шт.

42

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

plug (1/4 x 3/8 x 1/16")

1шт.

43

372792R1

SPRING

ball

1шт.

44

16008R1

BALL,1/4" Dia, Steel

1/4" dia. stl.

1шт.

45

BODY, valve (not serviced separately, order valve assembly, 372791R91)

1шт.

46

SPOOL, valve (not serviced separately, order valve assembly, 372791R91)

1шт.

47

372793R91

YOKE

CLEVIS ASSEMBLY, spool valve

1шт.

19503R1

NUT,5/16"-24, GB

spool valve clevis stop

1шт.

48

368042R1

O-RING

SEAL, cover plate

1шт.

49

372798R1

PLATE ASSY.

PLATE, cover

1шт.

50

362988R1

OIL SEAL

RING, cover plate retaining

1шт.

51

372791R91

VALVE

ASSEMBLY, footed (includes ref. nos. 33 thru 50 incl. and attaching hardware)

1шт.

217907

SUPPORT

SCREW, 5/16 x 3/4" hex-soc-hd.

4шт.

10824H

WASHER, 21/64 x 1/2" x 18 ga.

4шт.

381361R91

O-RING

1шт.

PACKAGE, worm unit o-ring service, consists of (1) o-ring 285723R1, (1) o-ring 352219R1, (2) o-ring 359158R1, (2) o-ring 364839R1, (1) o-ring 368042R1, (1) o-ring 369751R1, (1) o-ring 370943R1, (1) o-ring 372818R1, (1) o-ring 372821R1, (1) oil seal 372762R91, (1) oil seal 372765R91, (1) oil seal 373054R91, (4) ring 372817R1, (1) seal 372807R91

1шт.

372801R1

ARBOR ASSEMBLY, transit (tool for removing ball nut)

1шт.
