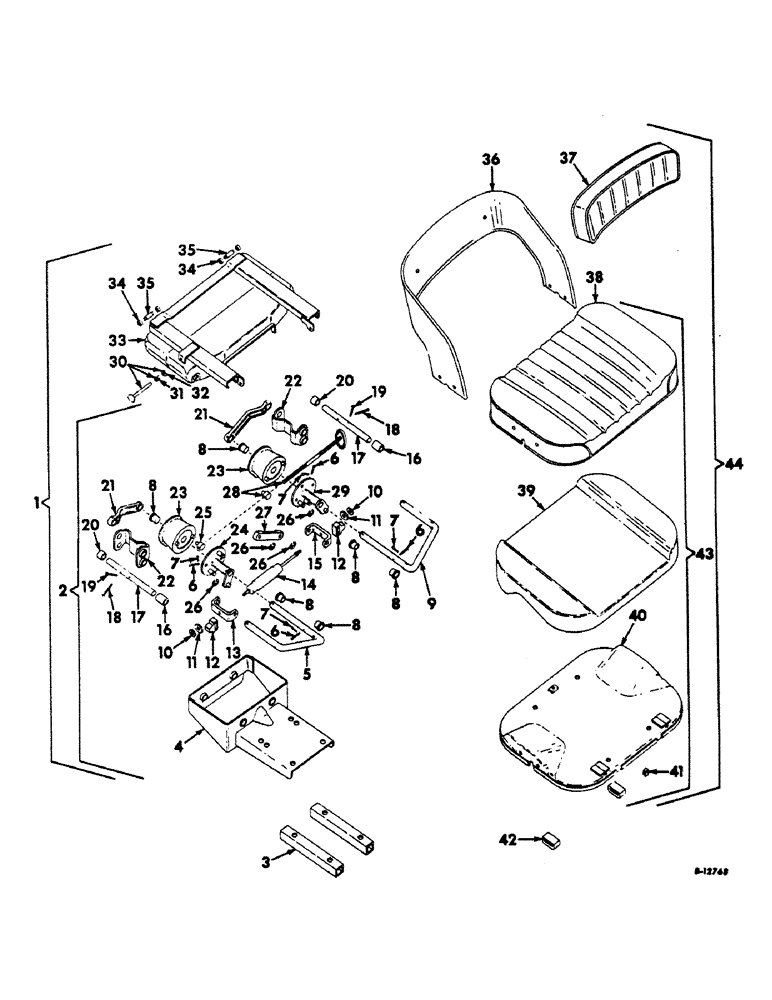

Запчасти Case IH 560 (270) - SEAT AND SUPPORTS, DELUXE VERTICAL SEAT Seat & Supports

1

372729R93

SUSPENSION

ASSEMBLY, seat

1шт.

NUT, 1/2"

4шт.

SCREW, 1/2 x 1-1/4" cap

4шт.

WASHER, 1/2" lock

4шт.

WASHER, 17/32 x 1" x 11 ga

4шт.

2

372730R93

FRAME

SUSPENSION ASSEMBLY, lower seat composed of, (2) arm 372744R91, (1) base 375129R91, (1) link 372743R91, (1) shaft 372732R92, (1) shaft 372733R92, (2) washer 53216V

1шт.

3

372376R1

SPACER, seat mounting (2 for unit B)

1шт.

SCREW, 1/2 x 2-3/4" cap

4шт.

4

375129R91

BASE, w/bearings and pins assembly

1шт.

142521

HYD TUBE

Pin, Grooved, 1/4" x 1 1/4", Type A

4шт.

142358

PIN

1/4 x 1-1/2" type 1 groove

4шт.

5

372733R92

SHAFT, w/pins assembly, RH spring

1шт.

142358

PIN

1/4 x 1-1/2" type 1 groove

2шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga

2шт.

6

382653R1

PIN, headed

4шт.

7

382652R1

PIN

quick attachable cotter

4шт.

8

193643R1

BUSHING,19.18mm ID x 25.4mm OD x 14.29mm L

BEARING, flanged

6шт.

9

372732R92

SHAFT, w/pins assembly, LH spring

1шт.

142358

PIN

1/4 x 1-1/2" type 1 groove

2шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga

2шт.

10

SL716

WASHER

13/32 x 1-1/8" x 14 ga

2шт.

11

381239R1

RUBBER WASHER

rubber

2шт.

12

381238R1

BUMPER

rubber

2шт.

13

380715R1

YOKE

BRACKET, shock RH

1шт.

14

372751R91

SHOCK ABSORBER

1шт.

232-4616

LOCK NUT,3/8"-24, GC

NUT, 3/8 NF cd-pltd lock

2шт.

15

380716R1

YOKE

BRACKET, shock LH

1шт.

16

372748R91

KIT

SPACER ASSEMBLY, rolled bushing, long

2шт.

142522

BUSHING

PIN, 1/4 x 1-3/4" type 1 groove

2шт.

17

372746R92

SHAFT, w/pins assembly, short link

2шт.

PIN, 3/32 x 1/2" cotter

2шт.

18

382654R1

PIN, headed

2шт.

19

382653R1

PIN, headed

2шт.

20

372747R91

KIT

SPACER ASSEMBLY, rolled bushing, short

2шт.

142522

BUSHING

PIN, 1/4 x 1-3/4" type 1 groove

2шт.

21

372744R91

KIT

ARM, w/pins assembly, spring

2шт.

142358

PIN

1/4 x 1-1/2" type 1 groove

2шт.

22

372743R91

LINK, w/pins assembly, short

2шт.

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

Pin, Grooved, 1/4" x 1 1/4", Type A

2шт.

23

380712R1

INSULATOR BLOCK

SPRING, rubber

2шт.

178373R1

WASHER

17/32 x 1" x 16 ga

2шт.

24

382651R1

SPOOL, RH

1шт.

25

372739R1

PIN, RH adjusting

1шт.

26

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

4шт.

27

382649R1

LINK, stabilizer

1шт.

28

372738R91

STUD ASSEMBLY, adjuster

1шт.

28

373565R91

KIT

STUD, 372738R91 w/pin assembly, adjuster

1шт.

142488

GROOVED PIN,1/8" x 1", Type A

Pin, Grooved, 1/8" x 1", Type A

2шт.

29

382650R1

SPOOL, LH

1шт.

30

372749R91

PIN ASSEMBLY, latch

1шт.

142488

GROOVED PIN,1/8" x 1", Type A

Pin, Grooved, 1/8" x 1", Type A

1шт.

31

372750R1

SPRING, compression

1шт.

32

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga

1шт.

33

372745R92

RAIL ASSEMBLY, skirt and side composed of, (2) pin 382653R1, (2) pin 382654R1, (4) pin 103372, (8) roller 375496R1, (4) shaft 375497R1

1шт.

34

375496R1

ROLLER, seat adjuster

8шт.

35

375497R1

SHAFT, seat adjuster roller

4шт.

36

372754R91

SUPPORT ASSEMBLY, seat

1шт.

SCREW, 3/8 x 1" cap

4шт.

37

372755R93

CUSHION

ASSEMBLY, back

1шт.

38

379384R92

COVER

ING, seat cushion

1шт.

39

379838R1

PAD, molded seat

1шт.

40

379382R91

PAN ASSEMBLY, seat

1шт.

41

379385R1

CLIP

cover retaining

4шт.

42

381701R1

BUMPER

rubber

1шт.

43

372753R94

CUSHION

ASSEMBLY, seat

1шт.

NUT, 3/8

4шт.

WASHER, 3/8" lock

4шт.

WASHER, 13/32 x 13/16" x 16 ga

4шт.

44

372752R94

FRAME AND CUSHION ASSEMBLY, seat upper

1шт.

625891R1

PIN,1/4" x 5/8"

1/2 x 5/8" headed

2шт.

PIN, 1/8 x 3/4" cotter

2шт.

382648R91

KIT

1шт.

PACKAGE, seat suspension service consists of, (2) bearing 193643R1, (1) bracket 380715R1, (1) bracket 380716R1, (1) bumper 381238R1, (1) link 382649R1, (2) nut 274635, (4) pin 103372, (4) pin 142358, (2) pin 142488, (4) pin 382652R1, (6) pin 382653R1, (2) pin 382653R1, (4) ring 110668R1, (1) spool 382650R1, (1) spool 382651R1, (2) spring 380712R1, (2) washer SL716, (2) washer 178373R1, (2) washer 381239R1

1шт.

373192R11

BRACKET ASSEMBLY, latch hook spring (illustrated with "drawbar and bail unit of fast-hitch") (unit A)

1шт.

372377R11

BRACKET ASSEMBLY, rear light support (illustrated with "starting and lighting") (unit A)

1шт.

523440R1

SUPPORT, latch hook (illustrated with "drawbar and bail unit of fast-hitch") (unit A)

1шт.

WASHER, 13/32 x 13/16" x 16 ga

1шт.
