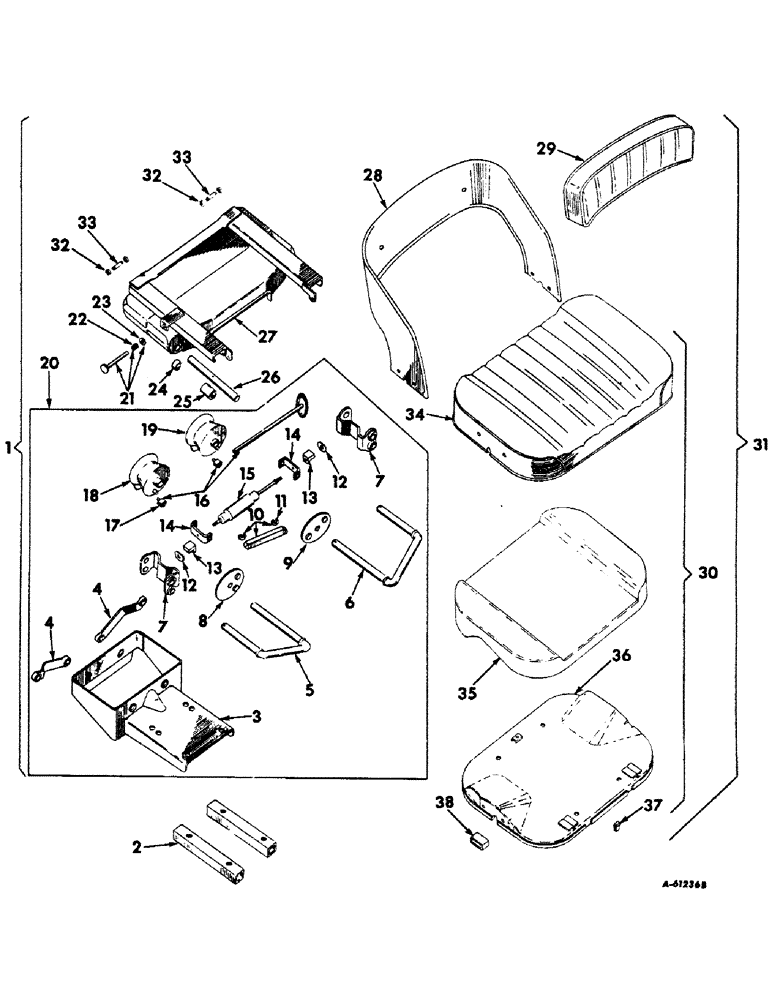

Запчасти Case IH 560 (267) - SEAT AND SUPPORTS, DELUXE VERTICAL ACTING SEAT Seat & Supports

1

372729R92

SUSPENSION

ASSEMBLY, seat (order 372729R93)

1шт.

NUT, 1/2"

4шт.

SCREW, 1/2 x 1-1/4" hex-hd cap

4шт.

WASHER, 1/2" lock

4шт.

WASHER, 17/32 x 1" x 11 ga

4шт.

2

372376R1

SPACER, seat mounting (2 for unit B)

1шт.

SCREW, 1/2 x 2-3/4" hex-hd. cap

4шт.

3

375129R91

BASE, w/pins assembly

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

8шт.

4

372744R91

KIT

ARM, w/pins assembly, spring

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

5

372733R91

SHAFT, w/pins assembly, RH spring (see note A)

1шт.

PIN, 1/2 x 1-1/4" type #1 groove

4шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga.

2шт.

6

372732R91

SHAFT, w/pins assembly, LH spring (see note A)

1шт.

PIN, 1/2 x 1-1/4" type # 1 groove

4шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga.

2шт.

7

372743R91

LINK, w/pins assembly, short

2шт.

PIN, 1/2 x 1-1/4" type #1 groove

4шт.

8

375122R91

PLATE, w/four pins and ring, 110668R1 assembly, RH stabilizer

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

9

375121R91

PLATE, w/four pins and ring, 110668R1 assembly, LH stabilizer

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

10

372740R91

LINK ASSEMBLY, stabilizer

1шт.

11

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , stabilizer link #37, .300" Dia, E-Type

2шт.

12

375120R1

"D" WASHER, rubber bumper

2шт.

13

375119R1

BUMPER, rubber

2шт.

14

372741R91

BRACKET, w/pin assembly, shock

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

2шт.

15

372751R91

SHOCK ABSORBER

1шт.

NUT, 3/8 NF jam

2шт.

16

372738R91

STUD ASSEMBLY, adjuster

1шт.

16

373565R91

KIT

STUD, 372738R91 w/pin assembly, adjuster

1шт.

PIN, 1/8 x 1" type #1 groove

2шт.

17

372739R1

PIN, RH adjusting

1шт.

18

375124R91

KIT

SPRING, w/pins assembly, RH rubber

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

19

375123R91

KIT

SPRING, w/pins assembly, LH rubber

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

20

372730R92

SUSPENSION ASSEMBLY, lower seat (less ref nos. 15 and 16) (order 372730R93)

1шт.

21

372749R91

PIN ASSEMBLY, latch

1шт.

PIN, 1/8 x 1" type #1 groove

1шт.

22

372750R1

SPRING, compression

1шт.

23

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga.

1шт.

24

372747R91

KIT

SPACER, w/pin assembly, rolled bushing, short

2шт.

25

372748R91

KIT

SPACER, w/pin assembly, rolled bushing, long

2шт.

26

372746R91

SHAFT, w/pins assembly, short link (see note C)

2шт.

142521

HYD TUBE

Pin, Grooved, 1/4" x 1 1/4", Type A

1шт.

142522

BUSHING

PIN, 1/4 x 1-3/4" type #1 groove

1шт.

27

3727459R1

RAIL ASSEMBLY, skirt and side (see note B) composed of, (2) pin 142521, (2) pin 142522, (8) roller 375496R1, (4) shaft 375497R1

1шт.

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

Pin, Grooved, 1/4" x 1 1/4", Type A

2шт.

142522

BUSHING

PIN, 1/4 x 1-3/4" type #1 groove

2шт.

28

372754R91

SUPPORT ASSEMBLY, seat

1шт.

SCREW, 3/8 x 1" cap

4шт.

29

372755R93

CUSHION

ASSEMBLY, back

1шт.

30

372753R94

CUSHION

ASSEMBLY, seat

1шт.

NUT, 3/8"

4шт.

WASHER, 3/8" lock

4шт.

WASHER, 13/32 x 13/16" x 16 ga.

4шт.

31

372752R94

FRAME AND CUSHION ASSEMBLY, seat upper

1шт.

625891R1

PIN,1/4" x 5/8"

1/2 x 5/8" headed

2шт.

PIN, 1/8 x 3/4" cotter

2шт.

32

375496R1

ROLLER, seat adjuster

8шт.

33

375497R1

SHAFT, seat adjuster roller

4шт.

34

379384R92

COVER

ING, seat cushion

1шт.

35

379383R1

PAD, molded seat

1шт.

36

379382R91

PAN ASSEMBLY, seat

1шт.

37

379385R1

CLIP

cover retaining

4шт.

38

381701R1

BUMPER

rubber

2шт.

373192R11

BRACKET ASSEMBLY, latch hook spring (illustrated with "drawbar and bail" unit of fast-hitch) (unit A)

1шт.

372377R11

BRACKET ASSEMBLY, rear light support (illustrated with "starting and lighting") (unit A)

1шт.

523440R1

SUPPORT, latch hook (illustrated with "drawbar and bail" unit of fast-hitch) (unit A)

1шт.

WASHER, 13/32 x 13/16" x 16 ga.

1шт.
