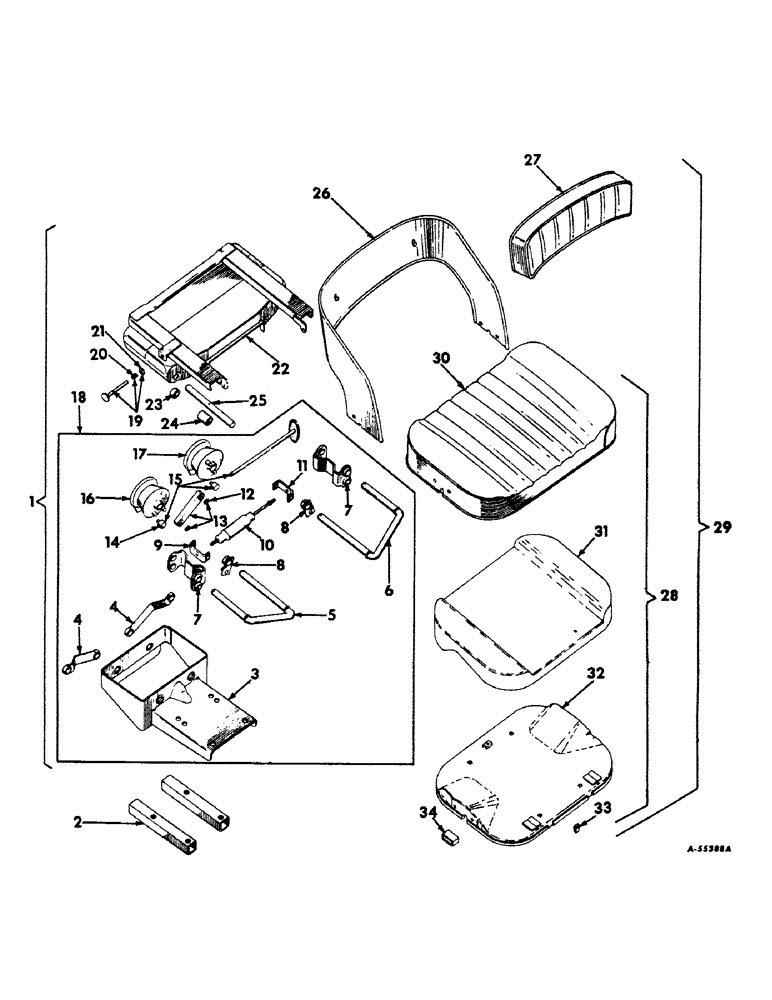

Запчасти Case IH 560 (265) - SEAT AND SUPPORTS, DELUXE VERTICAL ACTING SEAT Seat & Supports

1

372729R91

SUSPENSION

ASSEMBLY, seat (order 372729R93)

1шт.

NUT, 1/2"

4шт.

SCREW, 1/2 x 1-1/4" hex-hd cap

4шт.

WASHER, 1/2" lock

4шт.

WASHER, 17/32 x 1" x 11 ga

4шт.

2

372376R1

SPACER, seat mounting (2 for unit B)

1шт.

SCREW, 1/2 x 2-3/4" hex-hd. cap

4шт.

3

372731R91

BASE, w/pins assembly (order kit, 375129R91 two bumpers, 375119R1 two nuts, 124925 and two washers, 375120R1)

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

8шт.

4

372744R91

KIT

ARM, w/pin assembly, spring

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

2шт.

5

372733R91

SHAFT, w/pins assembly, RH spring (see note A)

1шт.

PIN, 1/2 x 1-1/4" type #1 groove

4шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga.

2шт.

6

372732R91

SHAFT, w/pins assembly, LH spring (see note A)

1шт.

PIN, 1/2 x 1-1/4" type #1 groove

4шт.

53216V

WASHER, 49/64 x 1-1/4" x 14 ga.

2шт.

7

372743R91

LINK, w/pin assembly, short

2шт.

PIN, 1/2 x 1-1/4" type #1 groove

2шт.

8

372734R91

LEVER, w/pins assembly, shock

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

8шт.

9

372743R91

BRACKET, w/pin assembly, RH shock

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

1шт.

10

372751R91

SHOCK ABSORBER

1шт.

NUT, 3/8 NF

2шт.

WASHER, 3/8" lock

2шт.

11

372741R91

BRACKET, w/pin assembly, LH shock

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

1шт.

12

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , stabilizer link #37, .300" Dia, E-Type

2шт.

13

372740R91

LINK ASSEMLBY, stabilizer

1шт.

14

372739R1

PIN, RH adjusting

1шт.

15

372738R91

STUD ASSEMBLY, adjuster

1шт.

15

373565R91

KIT

STUD, 372738R91, w/pin assembly, adjuster

1шт.

PIN, 1/8 x 1" type #1 groove

2шт.

16

372737R91

SPRING

w/pins assembly, RH rubber

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

17

372736R91

SPRING

w/pins assembly, LH rubber

1шт.

PIN, 1/4 x 1-1/4" type #1 groove

4шт.

18

372730R91

SUSPENSION ASSEMBLY, lower seat (less ref no. 10) (order 372730R93)

1шт.

19

372749R91

PIN ASSEMBLY, latch

1шт.

PIN, 1/8 x 1" type #1 groove

1шт.

20

372750R1

SPRING, compression

1шт.

21

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga.

1шт.

22

372745R91

RAIL, w/pins assembly, skirt and side (see note B)

1шт.

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

Pin, Grooved, 1/4" x 1 1/4", Type A

2шт.

142522

BUSHING

PIN, 1/4 x 1-3/4" type #1 groove

2шт.

23

372747R91

KIT

SPACER, w/pin assembly, rolled bushing, short

2шт.

24

372748R91

KIT

SPACER, w/pin assembly, rolled bushing, long

2шт.

25

372746R91

SHAFT, w/pins assembly, short link (see note C)

2шт.

PIN, 1/4 x 1-1/4" type #1 groove

1шт.

PIN, 1/4 x 1-3/4" type #1 groove

1шт.

26

372754R91

SUPPORT ASSEMBLY, seat

1шт.

27

372755R93

CUSHION

ASSEMBLY, back

1шт.

28

372753R94

CUSHION

ASSEMBLY, seat

1шт.

SCREW, 3/8 x 1/2" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

WASHER, 13/32 x 13/16" x 16 ga.

4шт.

29

372752R94

FRAME AND CUSHION ASSEMBLY, seat upper

1шт.

PIN, 1/2 x 5/8" headed

2шт.

PIN, 1/8 x 3/4" cotter

2шт.

30

379384R92

COVER

ING, seat cushion

1шт.

31

379383R1

PAD, molded seat

1шт.

32

379382R91

PAN ASSEMBLY, seat

1шт.

33

379385R1

CLIP

cover retaining

4шт.

34

381701R1

BUMPER

rubber

2шт.
