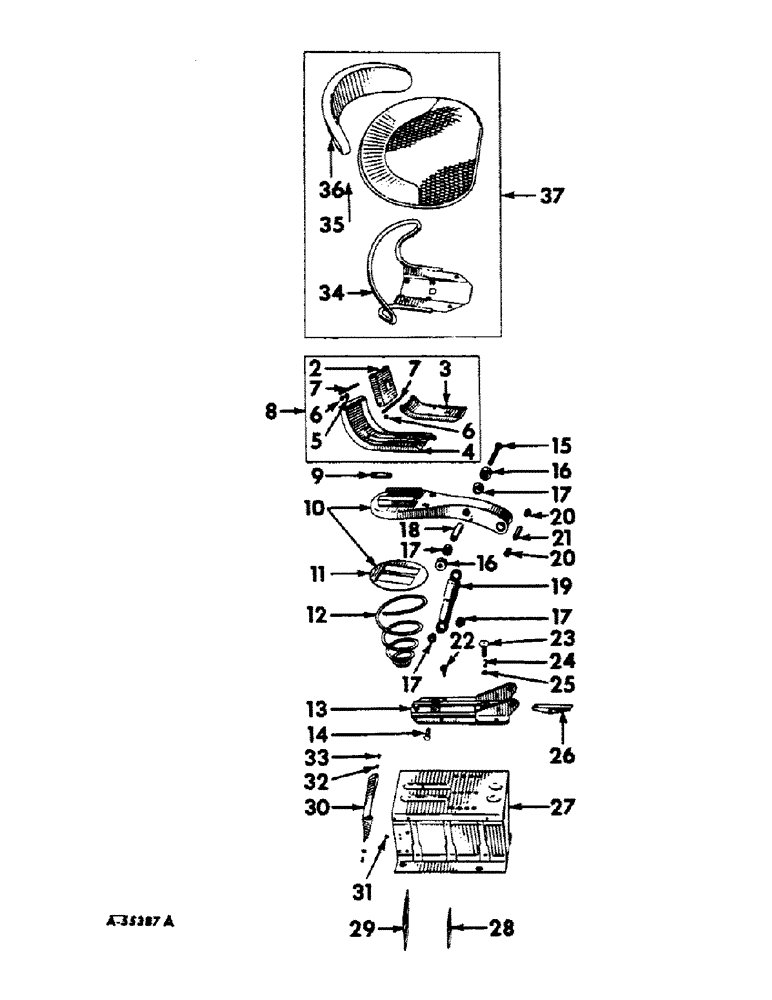

Запчасти Case IH 560 (261) - SEAT AND SUPPORTS, FARMALL 560 SERIES Seat & Supports

2

356895R2

SUPPORT

HINGE

1шт.

3

356896R2

RETAINER, seat

1шт.

4

356897R4

BRACKET, seat adjustment

1шт.

NUT, 7/16"

4шт.

SCREW, 7/16 x 3/4" hex-hd. cap

4шт.

WASHER, 7/16" lock

4шт.

5

22828D

SPACER

2шт.

6

356893R2

WASHER

"X"

4шт.

7

356892R2

PIN

hinge

2шт.

8

356891R94

BRACKET ASSEMBLY, tilt back seat (not used on tractors with seat, 351880R92) composed of, (1) bracket 356897R4, (1) hinge 356895R2, (2) pin 356892R2, (1) retainer 356896R2, (2) spacer 22828D, (4) washer 356893R2

1шт.

9

352118R1

CLIP, trip rope

1шт.

NUT, 7/16"

1шт.

SCREW, 7/16 x 3/4" hex-hd. cap

1шт.

WASHER, 7/16" lock

1шт.

10

352599R94

BRACKET ASSEMBLY, seat support

1шт.

11

352100R1

GASKET

conical spring

1шт.

12

354671R2

SPRING

conical (3 identifying notches) (for light-weight operators)

1шт.

12

352598R2

SPRING

conical (4 identifying notches) (for medium-weight operators)

1шт.

12

354670R2

VALVE SPRING

SPRING, conical (5 identifying notches) (for heavy-weight operators)

1шт.

13

355750R12

PLATE ASSEMBLY, seat mounting

1шт.

14

351751R1

BOLT,7/16" - 20 x 2 7/32"

shock absorber anchor lower

1шт.

NUT, 7/16 NF

1шт.

WASHER, 7/16" lock

1шт.

15

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

7/16 NF x 3-1/2" hex-hd. cap (shock absorber front anchor)

1шт.

9413940

NUT, shock absorber anchor bolt lock

1шт.

16

354731R1

TUBE

SPACER, shock absorber bushing

2шт.

17

72696R1

SHOCK ABSORBER

BUSHING, shock absorber and seat pivot

4шт.

18

354730R1

TUBE,.625" OD, 2.25" Length

shock absorber bushing

1шт.

19

351750R93

SHOCK ABSORBER

1шт.

20

361140R1

RUBBER BUSHING,15.75mm ID x 25.27mm OD x 47.22mm L

BUSHING, seat support pivot rod

2шт.

21

355753R1

PIN,15.88mm OD x 88.9mm L

ROD, seat support pivot

1шт.

SCREW, 1/2 NF x 1" hex-hd. cap

2шт.

WASHER, 1/2" lock

2шт.

22

358268R2

BOLT,1/2" - 20 x 1 1/2"

seat mounting

1шт.

NUT, 1/2 NF

4шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

SPACER, seat mounting bolt upper

4шт.

361027R1

SPACER, seat mounting bolt lower

4шт.

WASHER, 1/2" lock

4шт.

23

352600R91

PIN

LOCATOR ASSEMBLY, seat

1шт.

24

352105R1

SPRING

seat locator

1шт.

25

351128R1

WASHER

RETAINER, seat location

1шт.

26

362671R1

LEVER, seat positioner release

1шт.

230-4115

LOCK NUT,5/16"-18, GA

NUT, 5/16" stover lock

1шт.

SCREW, 5/16 x 4-1/2" hex-hd. cap

1шт.

27

374065R91

SUPPORT ASSEMBLY, seat

1шт.

27

377901R91

SUPPORT ASSEMBLY, seat (tractors with remote control and check valve)

1шт.

SCREW, 1/2 x 1" hex-hd. cap

2шт.

SCREW, 5/8 x 1-1/4" hex-hd. cap

2шт.

WASHER, 1/2" lock

2шт.

WASHER, 5/8" lock

2шт.

28

369622R11

COVER ASSEMBLY, seat support front opening (for tractors w/o hydra-touch system)

1шт.

SCREW, 5/16 x 1/2" hex-hd. cap

1шт.

29

369621R21

COVER ASSEMBLY, seat support rear opening (for tractors w/o hydra-touch system)

1шт.

SCREW, 5/16 x 1/2" hex-hd. cap

1шт.

30

369620R1

DOOR, seat support

1шт.

31

368175R1

BUMPER

seat support door

2шт.

32

369841R1

SPRING, door hinge tension

2шт.

33

373172R1

PIN, door hinge

2шт.

445207

PUSH-ON NUT,3/16", Push-on

CLIP, door hinge pin

2шт.

34

372758R92

FRAME ASSEMBLY, seat

1шт.

35

372759R92

CUSHION ASSEMBLY, seat

1шт.

SCREW, 3/8 x 5/8" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

36

372757R92

CUSHION ASSEMBLY, back

1шт.

SCREW, no. 12 x 1" oval head cd-pltd. sltd. mach.

3шт.

37

372356R92

SEAT ASSEMBLY

1шт.

SCREW, 7/16 x 11/16" hex-hd. cap

4шт.

WASHER, 7/16" lock

4шт.

355749R93

1шт.

UNIT ASSEMBLY, seat suspension composed of, (1) absorber 351750R93, (1) bolt 351751R1, (1) bracket 352599R94, (4) bushing 72696R1, (2) bushing 361140R1, (1) lever 362671R1, (1) locator 352600R91, (1) nut 9413940, (1) nut 274881, (1) nut 271505, (1) plate 355750R12, (1) retainer 351128R1, (1) rod 355753R1, (1) screw 181413, (2) screw 181427, (1) screw 186273, (2) spacer 354731R1, (1) spring 352105R1, (1) spring 354671R2, (1) tube 354730R1, (1) washer 103322, (2) washer 103323

1шт.
