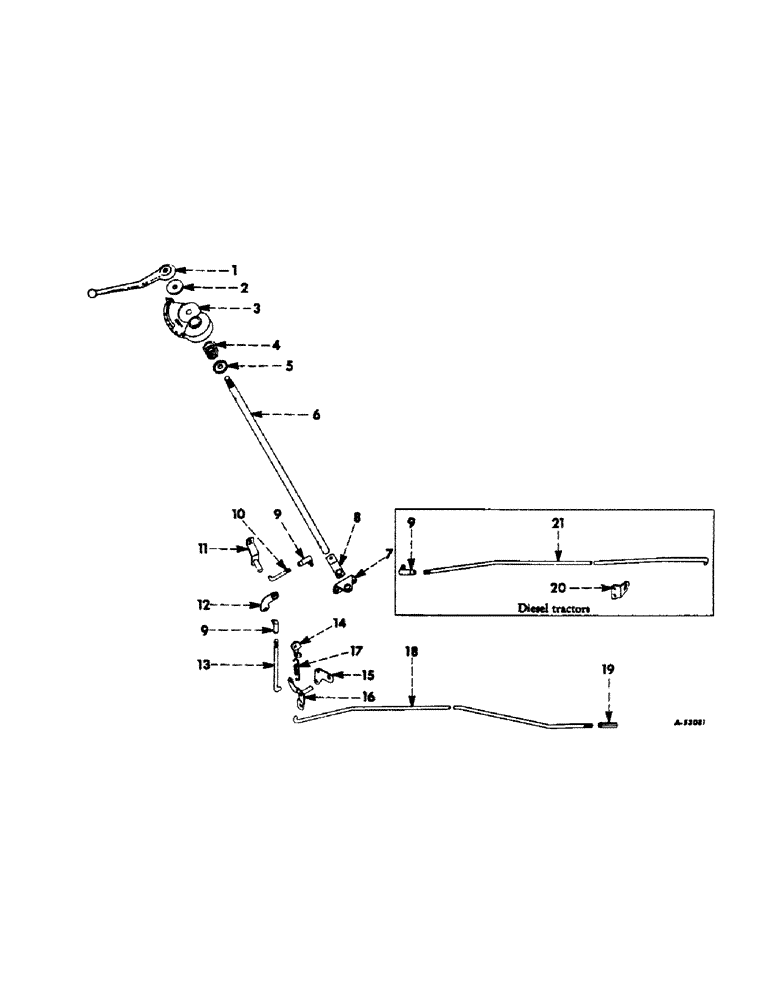

Запчасти Case IH 560 (079) - GOVERNOR, GOVERNOR CONTROLS, FARMALL 560 SERIES Governor

1

370021R1

LEVER, engine speed control

1шт.

NUT, 7/16" NF ESNA elastic stop

1шт.

WASHER, 15/32 x 59/64" x .065

1шт.

2

369463R1

GASKET

DISC, governor control friction

1шт.

3

369659R12

CAP ASSEMBLY, steering shaft housing

1шт.

PIN, 3/16 x 1" roll

1шт.

4

369462R1

SPRING

governor control

1шт.

5

369461R1

RETAINER

RETAINER, governor control spring

1шт.

6

370020R1

SHAFT, governor control

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

7

370025R11

SUPPORT ASSEMBLY, governor control shaft

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

2шт.

8

370260R11

LEVER ASSEMBLY, governor control

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

9

381259R91

JOINT

BALL JOIN, 5/16" NF-type SP (2 used on carbureted engine tractors; 3 used on diesel engine tractors) (optional with 19323R1)

1шт.

9

19323R1

JOINT

BALL JOINT, 5/16" NF-type F (2 used on carbureted engine tractors; 3 used on diesel engine tractors) (optional with 381259R91)

1шт.

NUT, 5/16" NF (2 used on carbureted engine tractors; 3 used on diesel engine tractors)

1шт.

10

370263R1

ROD, governor control upper

1шт.

NUT, 5/16" NF jam

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

11

370261R91

LEVER

ARM ASSEMBLY, governor control bellcrank actuating

1шт.

12

370029R11

LEVER

BELLCRANK ASSEMBLY, governor control

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

13

370030R1

ROD, governor control lower

1шт.

NUT, 5/16" NF jam

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

14

370037R1

CLIP, governor control balancing spring (carbureted engine tractors)

1шт.

15

370031R21

SUPPORT

ASSEMBLY, governor contorl rod operating lever

1шт.

SCREW, 51/6 x 7/8" hex-hd. cap

2шт.

16

370033R11

LEVER

ASSEMBLY, governor control rod operating

1шт.

PIN, 3/16 x 3/4" cotter

1шт.

11002VA

WASHER

17/32 x 7/8" x 16 ga.

1шт.

17

370038R1

SPRING

governor control balancing

1шт.

18

370264R1

ROD, governor control (gasoline engine tractors)

1шт.

18

371784R1

ROD, governor control (L.P. gas engine tractors)

1шт.

NUT, 5/16" NF cd-pltd. jam (LH thread)

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

19

369474R1

TURNBUCKLE

governor control rod adjusting

1шт.

NUT, 1/4" NF jam

1шт.

20

371180R1

GUIDE, governor control rod

1шт.

21

370266R1

ROD, governor control

1шт.

NUT, 5/16" NF jam

1шт.

PIN, 3/32 x 5/8" cotter

1шт.
