(258[A]) - DRAWBARS & HITCHES,MISCELLANEOUS PARTS, FOR ALL FARMALL 560 SERIES TRACTORS EXCEPT HI-CLEAR MODELS

Запчасти Case IH 560 (258[A]) - DRAWBARS & HITCHES,MISCELLANEOUS PARTS, FOR ALL FARMALL 560 SERIES TRACTORS EXCEPT HI-CLEAR MODELS Drawbar & Hitches

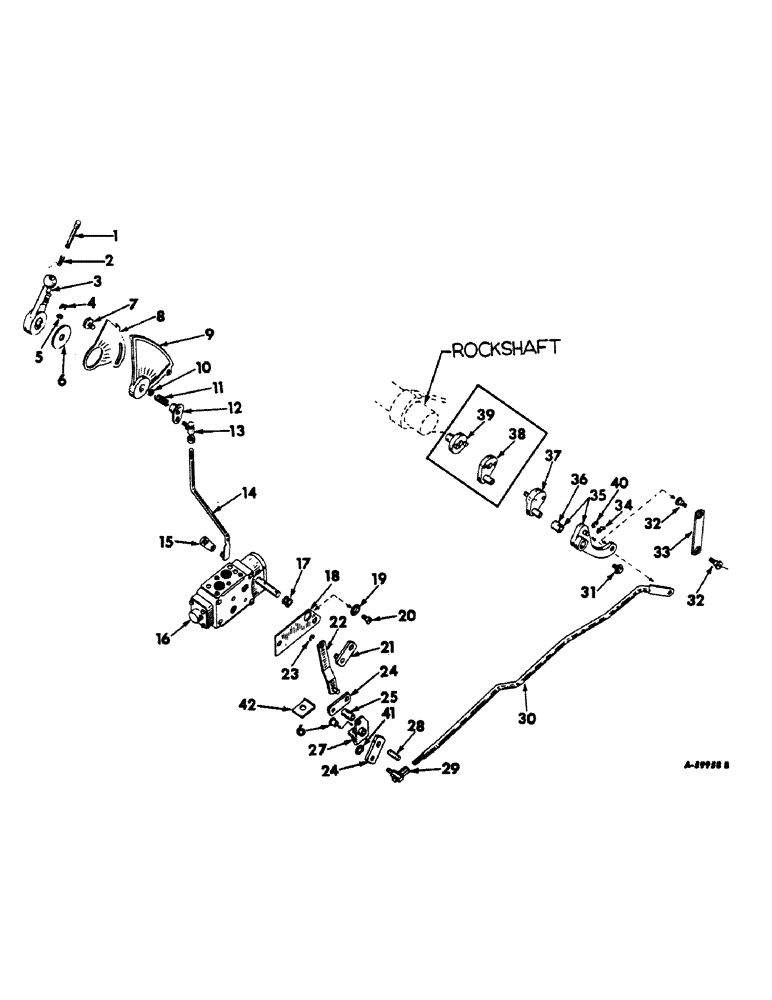

Схема запчастей Case IH 560 - (258[A]) - DRAWBARS & HITCHES,MISCELLANEOUS PARTS, FOR ALL FARMALL 560 SERIES TRACTORS EXCEPT HI-CLEAR MODELS Drawbar & Hitches
38
13
41
14
20
6
9
17
32
22
3
2
11
19
29
30
1
24
16
40
21
4
8
12
15
28
37
36
5
23
42
7
18
34
25
24
31
10
32
39
27
33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

373256R91

BRACKET ASSEMBLY, hydraulic controls mounting

1шт.

FITTING, 3/16" straight drive type lubrication

1шт.

SCREW, 7/16 x 1-3/8" hex-hd. cap

3шт.

WASHER, 7/16" lock

3шт.

370136R1

CLAMP, rear manifold

2шт.

NUT, 1/4"

1шт.

SCREW, 1/4 x 1-3/4" hex-hd cap

1шт.

370177R1

COVER, regulator and safety valve

1шт.

370216R1

COVER, tel-a-depth valve

1шт.

369778R1

PRODUCT GRAPHIC

EMBLEM, hydra-touch handle

1шт.

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

rear manifold flange

2шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

regulator and safety valve

6шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

tel-a-depth valve

6шт.

372689R1

RETAINER

RETAINER, hood fastener (illustrated with "hood and radiator grille")

1шт.

369777R1

RING

rear control handle shaft snap

1шт.

374240R91

SCREW,1/4" - 20 x 0.90"

ASSEMBLY, hood fastener

1шт.

89982H

SCREW, valve cover truss head

1шт.

370112R1

SHAFT, rear control handle

1шт.

KEY, no. 3 Woodruff

1шт.

NUT, 7/16" jam

2шт.

66860D

WASHER

SPACER, rear manifold

1шт.

369759R91

SPACER ASSEMBLY, left control

1шт.

370282R11

SPACER ASSEMBLY, right control

1шт.

374070R1

TRAY, seat support

1шт.

374053R93

TUBE

ASSEMBLY, rear manifold

1шт.

SCREW, 3/8 x 1-1/8" hex-hd. cap

3шт.

WASHER, 3/8" lock

3шт.

360621R94

VALVE

ASSEMBLY, regulator and safety

1шт.

SCREW, 7/16 x 4-1/4" hex-hd. cap

4шт.

369769R1

WASHER, left control valve

1шт.

369772R1

WASHER, right control valve

1шт.

523388R91

COUPLING BEAM SOCKET FILLER PLATE ATTACHMENT (permits use of super C, Farmall 200 and 230 fast-hitch implements on tractors equipped with fast-hitch, w/traction control) (composed of two plates, 523338R11 and two pins, 657196R1)

1шт.

523423R91

1шт.

FAST-HITCH, drawbar stabilizer parts accessory, (provides additional bracing to prevent side swing) (composed of two braces, 523175R1 and attaching parts) (for components, refer to list of parts under details of "drawbar, socket beams and bail" unit of fast-hitch with tractors control and tel-a-depth.

1шт.
