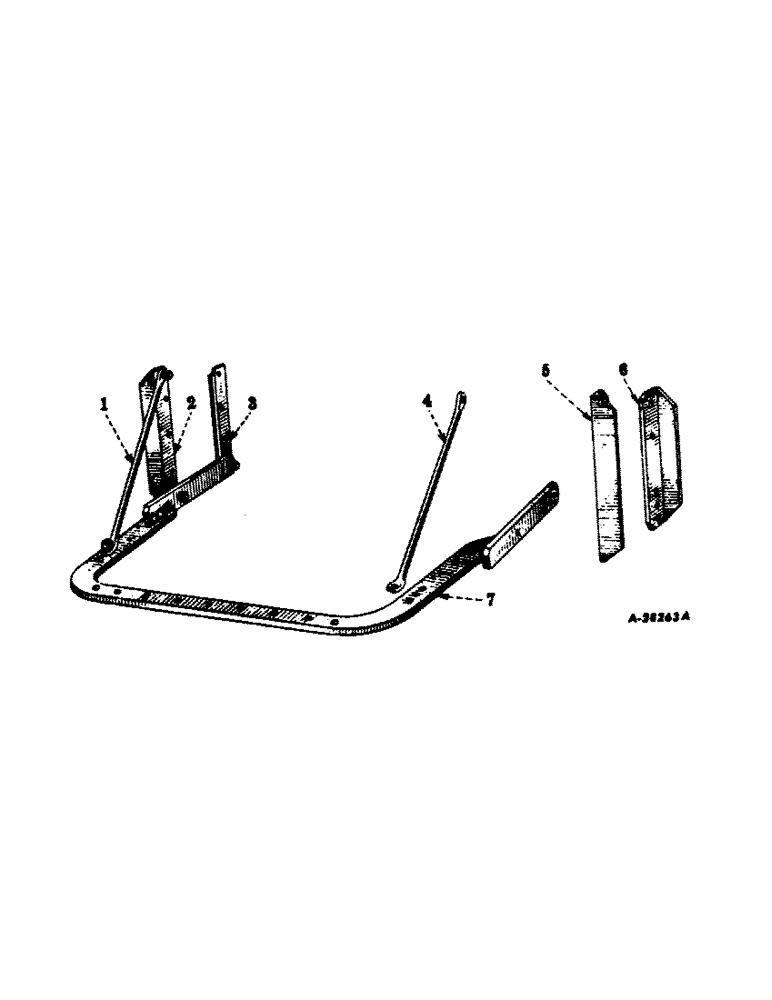

Запчасти Case IH 560 (250) - DRAWBARS AND HITCHES, FIXED DRAWBAR, FOR ALL FARMALL 560 SERIES HI-CLEAR MODELS Drawbar & Hitches

1

65143D

BRACE, LH drawbar

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2" hex-hd. cap

1шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

1шт.

WASHER, 3/4" lock

2шт.

2

65141D

BRACKET, LH drawbar rear

1шт.

SCREW, 3/4 x 2" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

3

65139D

BRACKET, LH drawbar front

1шт.

SCREW, 3/4 x 2" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

4

65144D

BRACE, RH drawbar

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2" hex-hd. cap

1шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

1шт.

WASHER, 3/4" lock

2шт.

5

65142D

BRACKET, RH drawbar rear

1шт.

SCREW, 3/4 x 2" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

6

65140D

BRACKET, RH drawbar front

1шт.

SCREW, 3/4 x 2" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

7

65137DX

DRAWBAR ASSEMBLY

1шт.

NUT, 3/4"

4шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

4шт.

WASHER, 3/4" lock

4шт.
