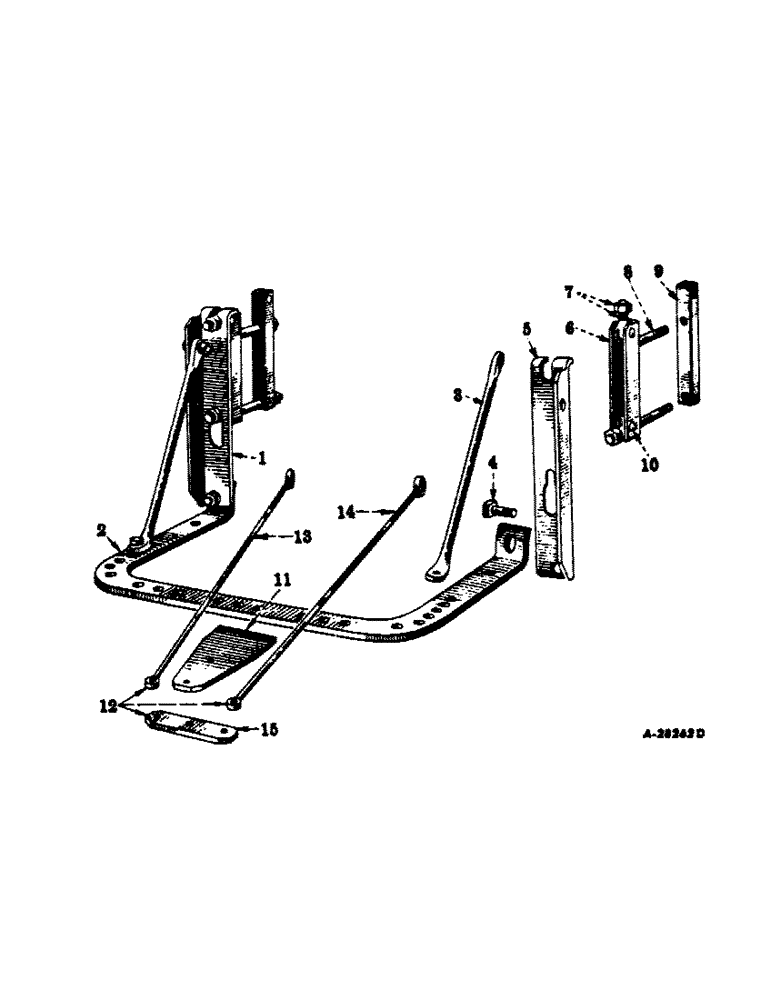

Запчасти Case IH 560 (249) - DRAWBARS AND HITCHES, FIXED DRAWBAR, FOR ALL FARMALL 560 SERIES TRACTORS EXCEPT HI-CLEAR MODELS Drawbar & Hitches

1

57231DA

ANGLE, LH drawbar

1шт.

2

57230DB

DRAWBAR

1шт.

3

57233DA

ROD

BRACE, drawbar

2шт.

NUT, 3/4"

4шт.

SCREW, 3/4 x 2" hex-hd. cap

2шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

2шт.

WASHER, 3/4" lock

4шт.

4

41111D

BOLT,3/4" - 10 x 2 3/4"

drawbar pivot

2шт.

NUT, 3/4"

2шт.

WASHER, 3/4" lock

2шт.

5

57232DA

ANGLE, RH drawbar

1шт.

6

51718DXB

CHANNEL

ASSEMBLY, drawbar attaching

2шт.

7

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

EYEBOLT, w/nut, 357790R1 and washer, Q1552 assembly, drawbar

4шт.

357790R1

NUT

drawbar eyebolt (fine thread)

4шт.

Q1552

WASHER

25/32 x 1-1/4" x 10 ga.

4шт.

8

45269D

BOLT

drawbar attaching

4шт.

NUT, 7/8 NF

4шт.

WASHER, 7/8" lock

4шт.

9

51717DA

CLAMP, drawbar attaching (optional with 360903R1)

2шт.

9

360903R1

CLAMP, drawbar attaching (optional with 51717DA)

2шт.

10

41112D

PIN

drawbar eyebolt

4шт.

11

66426D

PLATE, drawbar extension (provides a standardized power take-off hitch for tractors equipped with fixed drawbar, but not with swinging drawbar) (see note A)

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

12

368390R91

PARTS ACCESSORY, auxiliary drawbar brace consists of, (1) brace LH 368391R1, (1) brace RH 368392R1, (1) nut 102639, (4) nut 220081, (1) screw 271564, (4) screw 271613, (1) support 368393R1, (1) washer 103325, (4) washer 103326

1шт.

13

368391R1

BRACE, LH auxiliary drawbar

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

14

368392R1

BRACE, RH auxiliary drawbar

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

15

368393R1

SUPPORT, drawbar extension

1шт.

NUT, 5/8"

1шт.

SCREW, 5/8 x 2-1/2" hex-hd. cap

1шт.

WASHER, 5/8" lock

1шт.
